Product Specifications

Manufacturer	Bently Nevada
Part Number	3500/33 149986-01+149992-01
Product Type	16-Channel Relay Module
Typical Power Consumption	5.8 watts
Relay Arc Suppressor	250 Vrms, installed as standard
Relay Contact Life	10,000 cycles
Minimum Switched Current	100 mA @ 5 Vdc
DC Specifications (Resistive Load)
Maximum Switched Current	5 A
Maximum Switched Power	70 W @ 24 Vdc
	10 W @ 48 Vdc
	9 W @ 60 Vdc
Maximum Switched Voltage	125 Vdc
AC Specifications
Maximum Switched Current	5 A
Maximum Switched Power	1200 VA
Maximum Switched Voltage	250 Vac

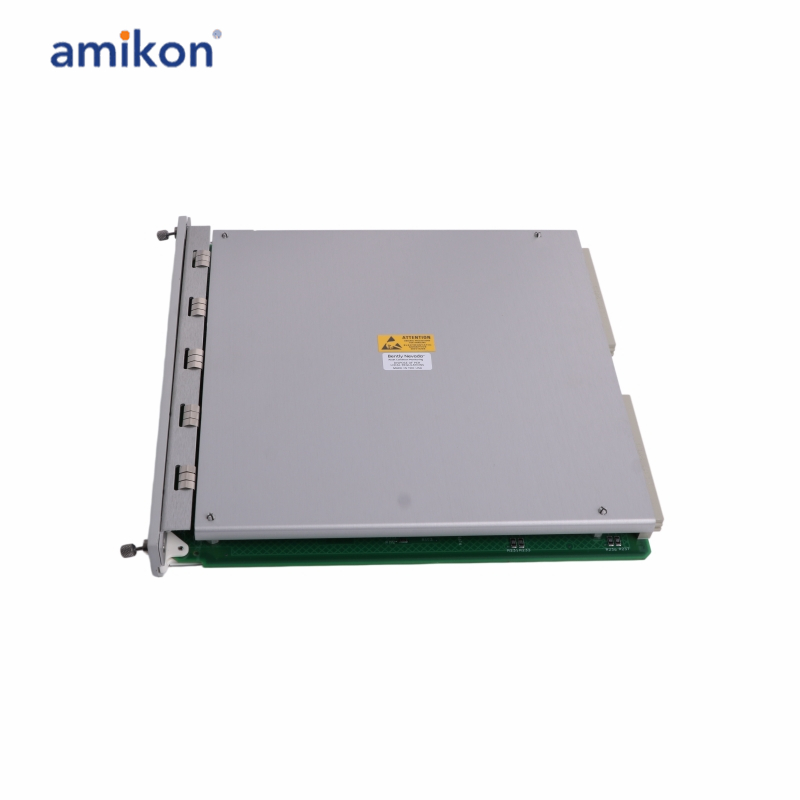

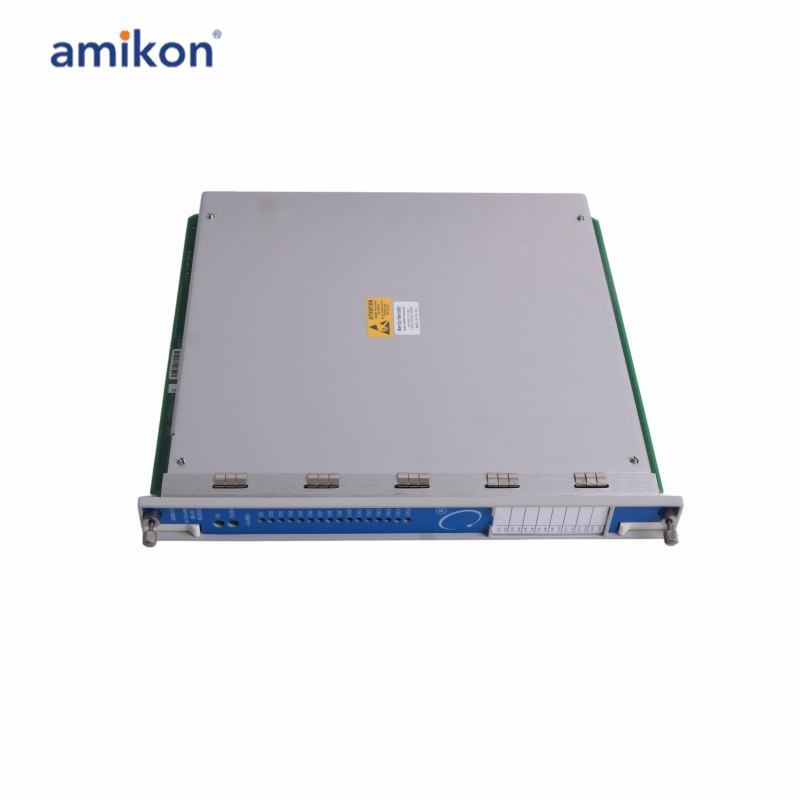

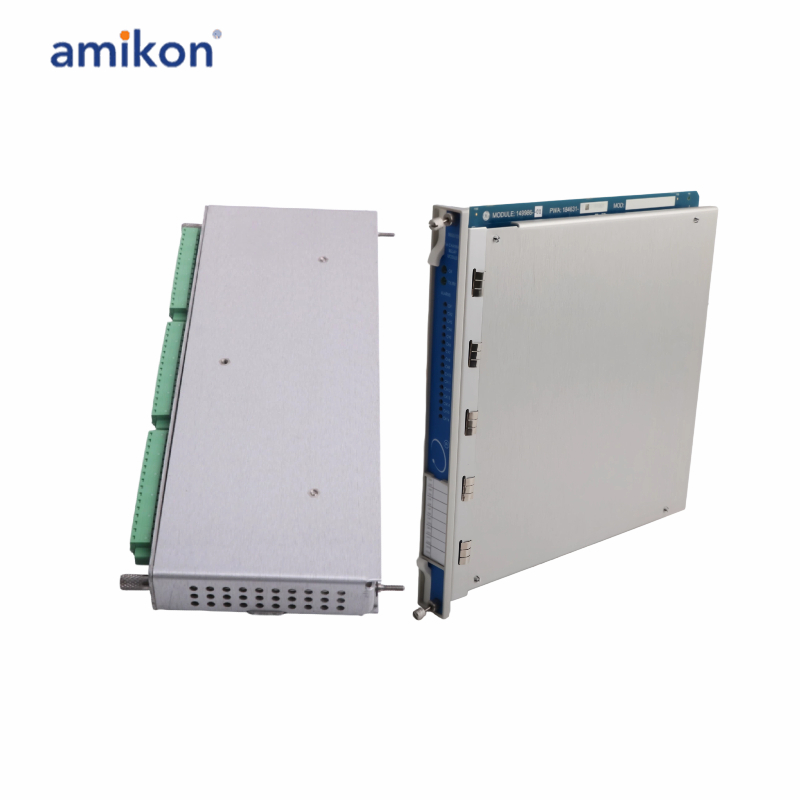

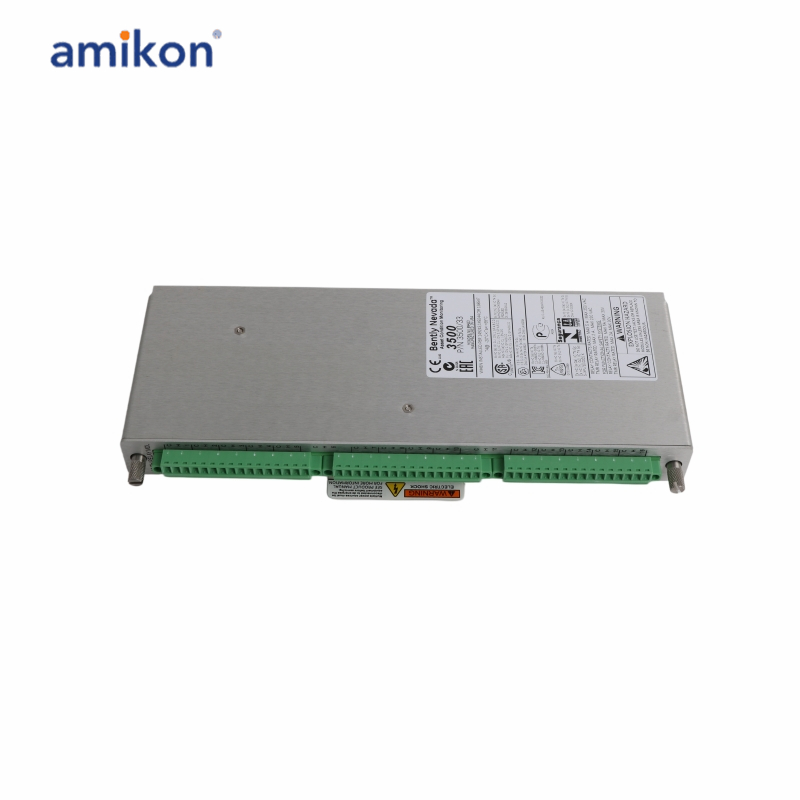

The Bently Nevada 3500/33 (149986-01 + 149992-01) is a 16-channel relay module designed for the 3500 Machinery Protection System. It includes a 149986-01 relay control module and a 149992-01 relay output module, offering 16 programmable SPDT relay outputs for alarm signaling and control.
The Bently NevadaTM 3500/33 16-Channel Relay Module is afull-height module that provides 16 relay outputs. You canplace any number of 16-channel relay modules in any of theslots to the right of the Transient Data Interface (TDl) Module.

Frequently asked questions：

Q1: What is the Bently Nevada 3500/33 16-Channel Relay Module?
A1: It is a relay output module used in the 3500 monitoring system to provide multiple alarm and control outputs based on machinery condition data.

Q2: How many channels does this 3500/33 149986-01 module support?
A2: The 3500/33 149986-01 module provides 16 relay channels, enabling flexible control and alarm signaling.

Q3: What is the relay contact life?
A3: The relay contacts are rated for approximately 10,000 cycles under standard operating conditions.

Q4: What is the 3500/33 minimum switched current?
A4: The 3500/33 minimum switched current is 100 mA at 5 V DC, ensuring reliable contact operation under load.

Q5: What is the 3500/33 typical power consumption?
A5: The 3500/33 module consumes approximately 5.8 watts during operation.

Product Applications

Oil and Gas
Power Generation
Metallurgy and Iron & Steel
Water Treatment and Papermaking
