Product Specifications

Manufacturer	Bently Nevada
Part Number	3500/70M 176449-09+135489-01
Product Type	Recip Impulse Velocity Monitor
Input Impedance – Acceleration Input	10 kΩ
Input Impedance – Velocity Input	>1 MΩ
Special Inhibit	Contact closure, 5 Vdc @ 390 μA typical
Nominal Power Consumption	7.7 watts
Impulse Acceleration Sensitivity	0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g
Acceleration 2 Sensitivity	0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g
Reciprocating Velocity Sensitivity	3.54 – 22.64 mV/(mm/s)；90 – 575 mV/(in/s)
Low Frequency Recip Velocity Compliance	+12 Vdc maximum
Maximum Load Resistance	600 Ω
Maximum Resolution	0.3662 µA
Update Rate	< 100 millisecond
Typical Output Impedance	550 Ω
Minimum Voltage	-22 Vdc

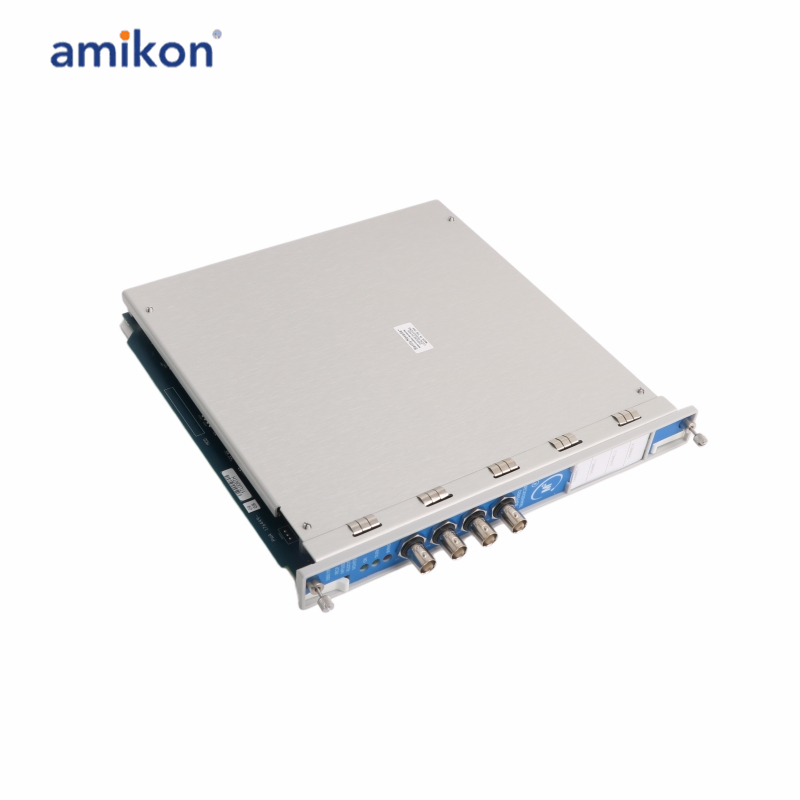

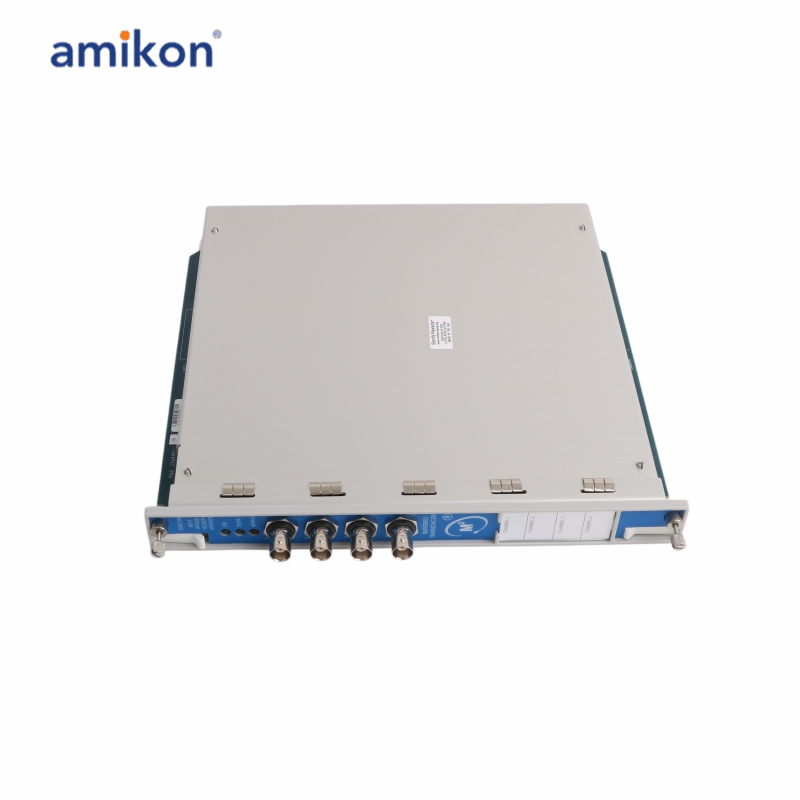

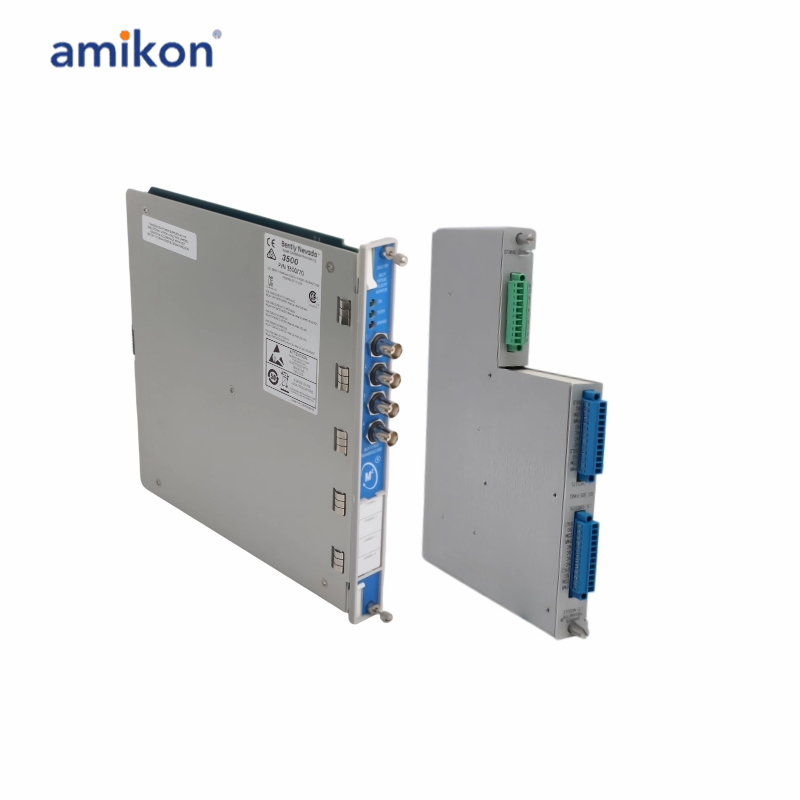

The Bently NevadatM 3500/70M Recip Impulse Velocity Monitoris a 4-channel device used as part of the reciprocatingcompressor solutions package to monitor compressorcrankcase and crosshead vibration. The monitor acceptsinput from seismic transducers, conditions the signal toderive vibration measurements, and compares theconditioned signals with user-programmable alarms.You can program each channel using the 3500 RackConfiguration Software to perform the following functions:
Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity

Frequently asked questions：

Q1: What is the Bently Nevada 3500/70M Recip Impulse Velocity Monitor?
A1: It is a monitoring module used in the 3500 system to measure reciprocating machinery vibration using impulse velocity techniques, providing critical data for machinery protection and diagnostics.

Q2: What is the 3500/70M 176449-09 low-frequency reciprocating velocity compliance?
A2: The low-frequency reciprocating velocity compliance is up to +12 V DC maximum.

Q3: What is the 3500/70M 176449-09 maximum load resistance?
A3: The 3500/70M 176449-09 module supports a maximum load resistance of 600 Ω, suitable for standard 4–20 mA output loops.

Q4: What is the 3500/70M typical output impedance?
A4: The 3500/70M typical output impedance is 550 Ω, ensuring stable signal transmission.

Q5: What is the 3500/70M minimum operating voltage?
A5: The 3500/70M minimum voltage is −22 V DC, required for proper module operation.

Product Applications

Oil & Gas
Petrochemical & Chemical
Power Generation
Industrial Gases
