Inputs

Signal:
Accepts from 1 to 4 channels of
Bently approved positive voltage third
party pressure transducers (psia)
Scale Factor：
95,000 µV/psi for 100 psia range*
38,000 µV/psi for 250 psia range*
19,000 µV/psi for 500 psia range*
9,500 µV/psi for 1000 psia range*
3,800 µV/psi for 2500 psia range*
1,900 µV/psi for 5000 psia range*
950 µV/psi for 10000 psia range*

Outputs
Front Panel LEDs
OK LED：
Indicates when the 3500/77M is operating properly.
TX/RX LED：
Indicates when the 3500/77M is communicating with other modules in
the 3500 rack.
Bypass LED：
Indicates when the 3500/77M is in Bypass Mode.

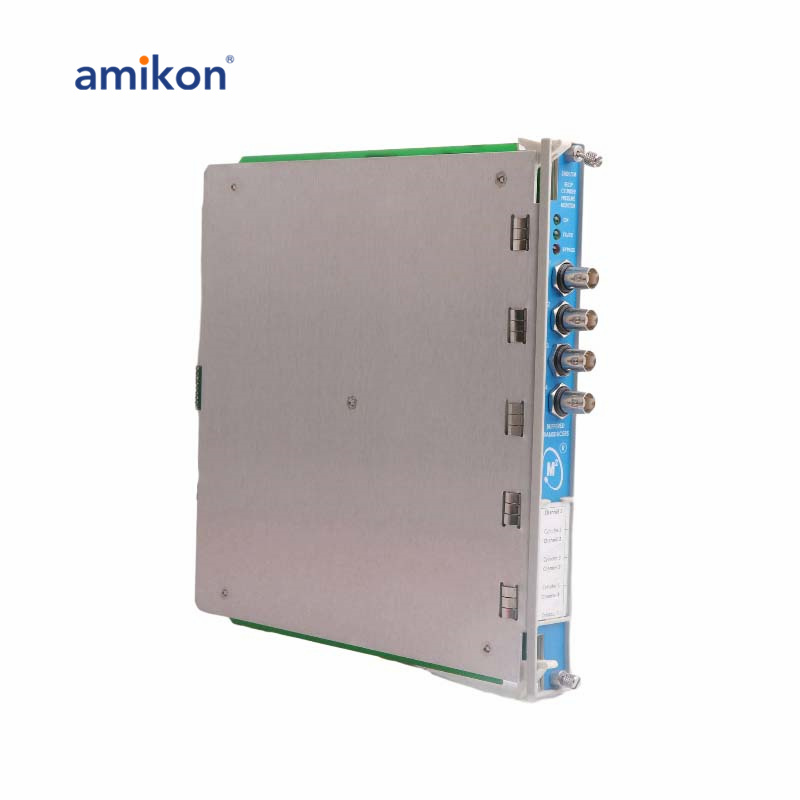

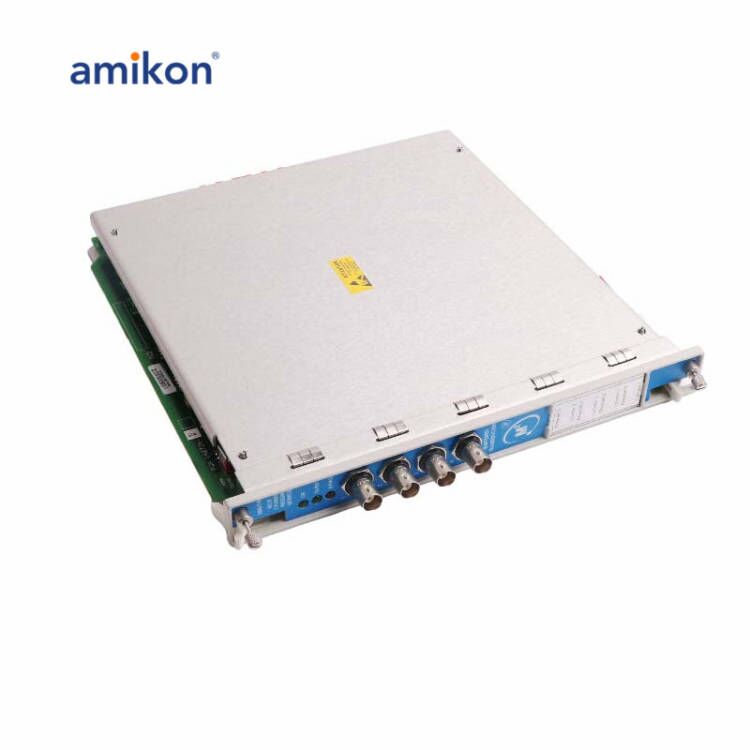

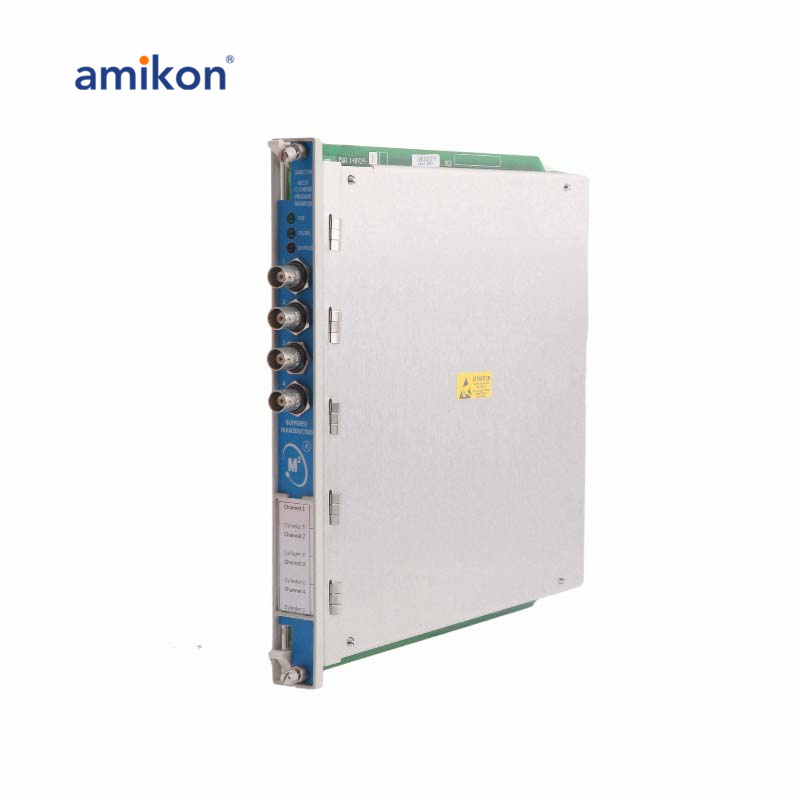

The 3500/77M 140734-07 Recip Cylinder Pressure Monitor is a 4-channel monitor that accepts input from Bently Nevada approved pressure transducers, conditions the signal to make various reciprocating compressor cylinder pressure measurements, and compares the conditioned signals with user-programmable alarms.

The primary purpose of the 3500/77M 140734-07 monitor is to provide:
- Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms.
- Essential machine information for both operations and maintenance personnel.

Each channel, depending on configuration, typically conditions its input signal into various parameters called “proportional values,” also referred to as PPL’s. Alert setpoints can be configured for each active proportional value (PPL) and danger setpoints can be configured for any two of the active proportional values.
Each channel of the 3500/77M 140734-07 will provide eight PPL values that relate to cylinder pressure operation. Five PPL values relate to a single chamber and are as follows:

-Discharge Pressure
-Suction Pressure
-Maximum Pressure
-Minimum Pressure
-Compression Ratio

Three PPL values use one or more channel's values in combination with
configured mechanical parameters to compute their value:
- Peak Rod Compression
- Peak Rod Tension
- Degree of Rod Reversal
