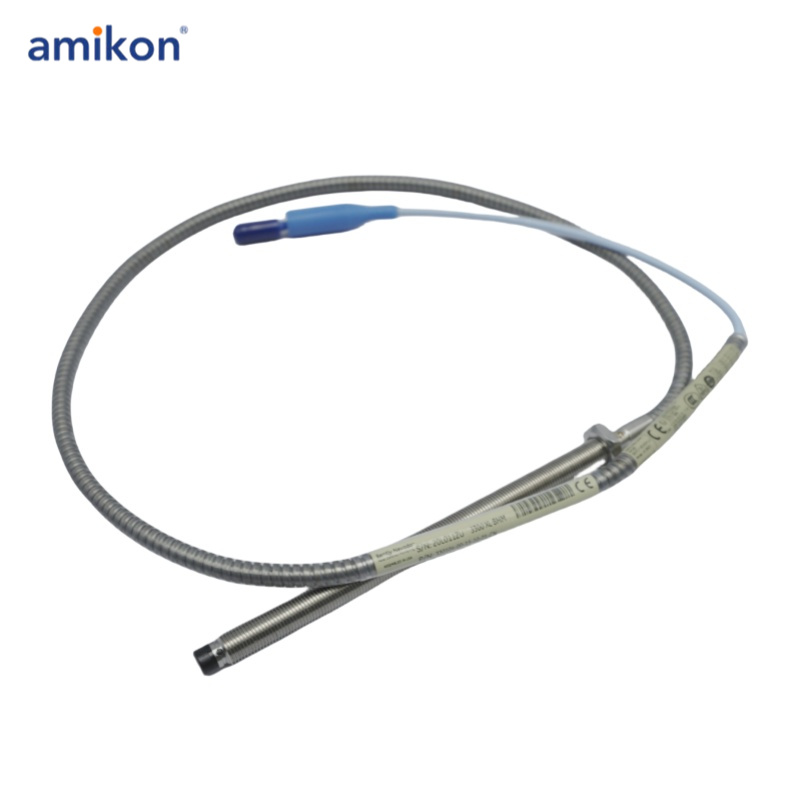

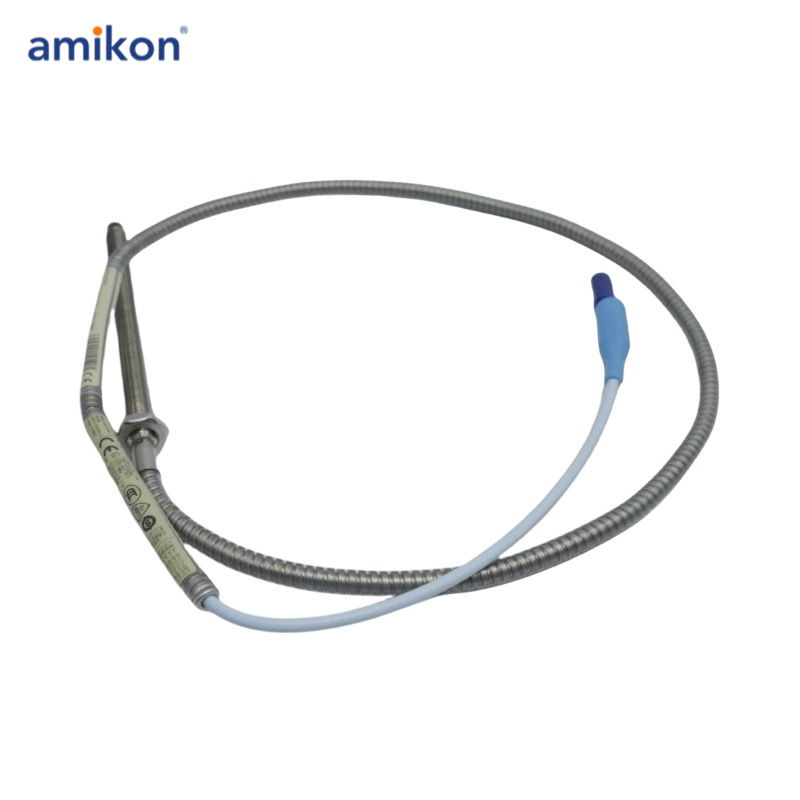

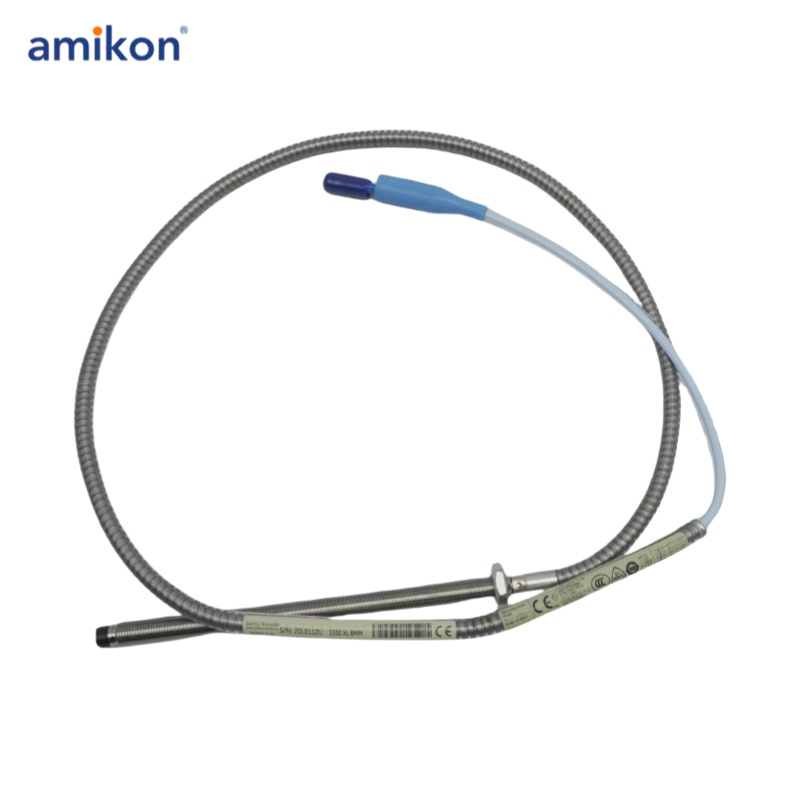

Bently nevada Proximity Probes 330104-00-15-10-01-05
Specifications	Unless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18˚C and +27˚C (+64˚F to +80˚F) at a maximum altitude of 2000 meters, with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.
The 330104-00-15-10-01-05 3300 XL 8 mm Proximity Transducer System consists of: -One 3300 XL 8 mm probe, -One 3300 XL extension cable1, and -One 3300 XL Proximitor Sensor The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 330104-00-15-10-01-05 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 330104-00-15-10-01-05 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 330104-00-15-10-01-05 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components Each 330104-00-15-10-01-05 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

sales7@amikon.cn

86-18965423501

86-18965423501

AMKPLC

Best Quality Assurance:
1.High quality
2.Prompt Delivery
3.We provide numorous brand-name parts.
4.We have experienced staff and extensive test facilities.
5.There are many prompt goods that can be provided
6. We only provide the original new items, 100% make sure the best quality!

HOT MODEL
Bently nevada	990-04-70-02-00	Applied Materials AMAT	0200-10549
Bently nevada	990-04-70-01-05	Applied Materials AMAT	0200-10549
Bently nevada	990-04-70-01-05	Applied Materials AMAT	0200-10555
Bently nevada	990-04-70-01-00	Applied Materials AMAT	0200-10555
Bently nevada	990-04-70-01-00	Applied Materials AMAT	0200-10650
Bently nevada	990-04-50-02-CN	Applied Materials AMAT	0200-10651
Bently nevada	990-04-50-02-00	Applied Materials AMAT	0200-10651
Bently nevada	990-04-50-02-00	Applied Materials AMAT	0200-11987
Bently nevada	990-04-50-01-00	Applied Materials AMAT	0200-14015
Bently nevada	990-04-50-01-00	Applied Materials AMAT	0200-14015
Bently nevada	9200-06-05-10-00	Applied Materials AMAT	0200-14989
Bently nevada	9200-06-05-05-00	Applied Materials AMAT	0200-15001
Bently nevada	9200-06-05-05-00	Applied Materials AMAT	0200-16364
Bently nevada	9200-06-05-05-00	Applied Materials AMAT	0200-16478
Bently nevada	9200-03-05-10-00	Applied Materials AMAT	0200-18003
Bently nevada	9200-03-05-10-00	Applied Materials AMAT	0200-18016
Bently nevada	9200-02-01-10-00	Applied Materials AMAT	0200-18017
Bently nevada	9200-01-05-10-00	Applied Materials AMAT	0200-18018
Bently nevada	9200-01-05-10-00	Applied Materials AMAT	0200-18023
Bently nevada	9200-01-02-10-00	Applied Materials AMAT	0200-18024

Frequently asked questions

Q1: Are the products you sell brand new?
A: Yes, all the products we sell are 100% brand new and come in their original packaging. We guarantee that our products have never been used or refurbished, ensuring top-notch quality and reliability for every customer.

Q2: Do your products come with a warranty?
A: Yes, we provide a one-year warranty for all our products. During this period, if there are any manufacturing defects or quality issues, we will assist you with repair, replacement, or refund according to your needs.

Q3: How do you handle shipping?
A: We offer international express shipping to deliver your products as quickly and securely as possible. We work with trusted couriers to ensure that your items arrive on time and in perfect condition, no matter where you are.

Amikon sells new and surplus products and develops channels to purchase such products.

This site is not approved or endorsed by any of the listed manufacturers or trademarks.

Amikon is not an authorized distributor, dealer or representative of the products displayed on this site.

All product names, trademarks, brands and logos used on this site are the property of their respective owners.

The description, illustration or sale of products under these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Hot Tags : 330104-00-15-10-01-05 3300 XL 330104-00-15-10-01-05 Proximity Probes Bently Nevada 330104-00-15-10-01-05 GE/Bently 330104-00-15-10-01-05 Bently 330104-00-15-10-01-05 Bently 3300 XL Series
