brand new Bently Nevada Vibration Transmitter Module 990-08- XX-01-CN,Bently Nevada Vibration Transmitter Module 990-08- XX-01-CN suppliers,Bently Nevada Vibration Transmitter Module 990-08- XX-01-CN manufacturers,factories

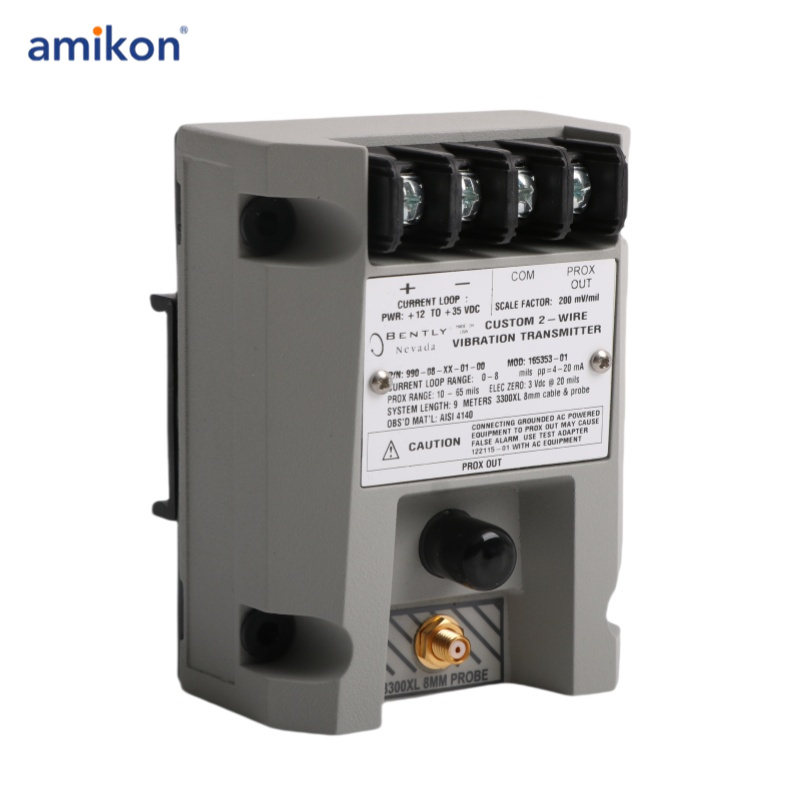

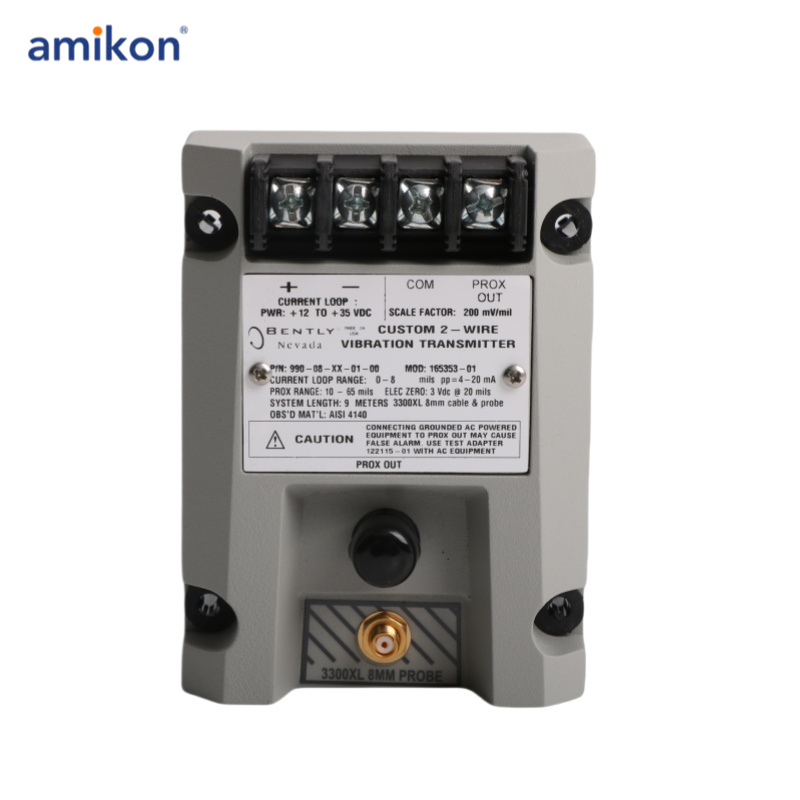

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs

The 990 transmitter provides the following notable features:
-Integrated Proximitor Sensor requires no external unit
-Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.
-Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
-Test Input pin for quick verification of loop signal output, using a function generator as the input.
-A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.

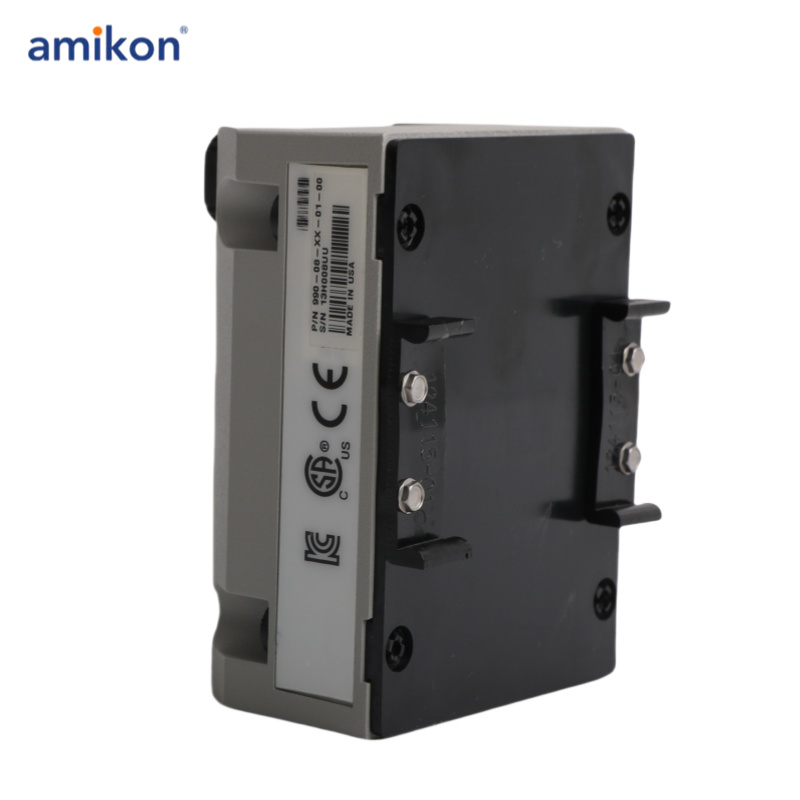

-Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting

Environmental Limits ：

Attribute	Details
Transmitter Operating Temperature	-35°C to +85°C (-31°F to +185°F)
Transmitter Storage Temperature	-52°C to +100°C (-62°F to +212°F)
Probe Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Probe Storage Temperature	-52°C to +177°C (-62°F to +351°F)
Relative Humidity	100% condensing, non-submerged, with protection of coaxial connectors

Mechanical：

Attribute	Details
Transducer Tip Material	Polyphenylene Sulfide (PPS)
Transducer Case Material	AISI 303 or 304 Stainless Steel (SST)
Probe Cable	75Ω coaxial, fluoroethylene propylene (FEP) insulated
Cable Armor (Optional)	Flexible AISI 302 SST with optional FEP outer jacket
Tensile Strength	222 N (50 lbf) probe case to probe lead, maximum
Transmitter Weight	0.43 kg (0.9 lbm)
Total System Weight	0.82 kg (1.8 lbm) typical
