Part Number: UNI2401
Manufacturer: Control Techniques
Type: AC Drives
Nominal Rating (kW): 5.5
Nominal Rating (hp): 7.5
Max. Continuous Output Current at 40°C Ambient (A):
3kHz: 12
4.5kHz: 12
6kHz: 12
9kHz: 12
12kHz: 11.7
Max. Continuous Output Current at 50°C Ambient (A):
3kHz: 12
4.5kHz: 12
6kHz: 12
9kHz: 11.6
12kHz: 9.7
Typical Input Current (A): 13
Max. Continuous Output Current (A): 16
Minimum Resistance (Ω): 40
Instantaneous Power Rating (kW): 15

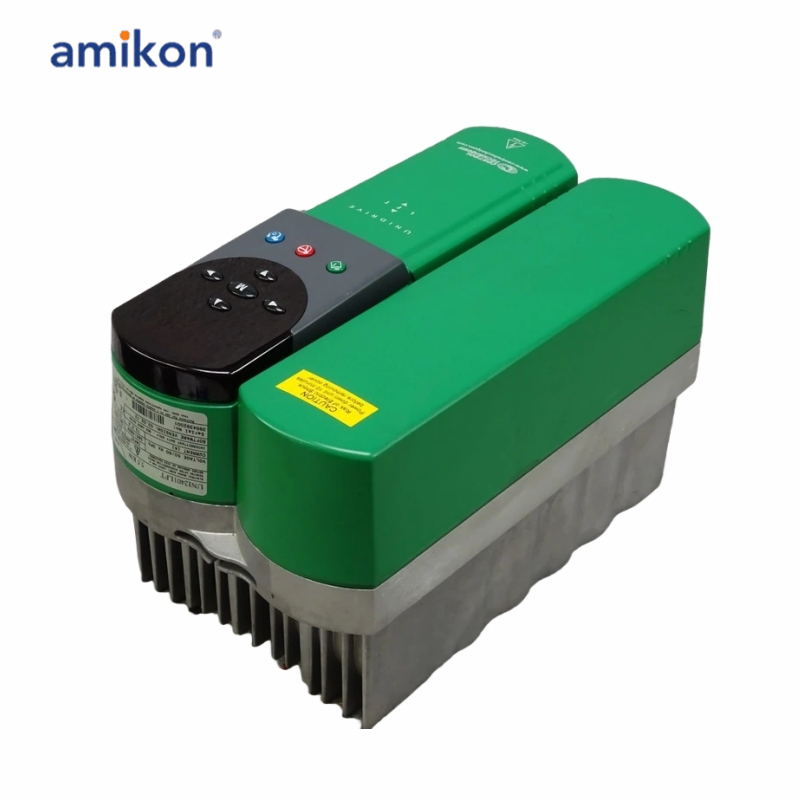

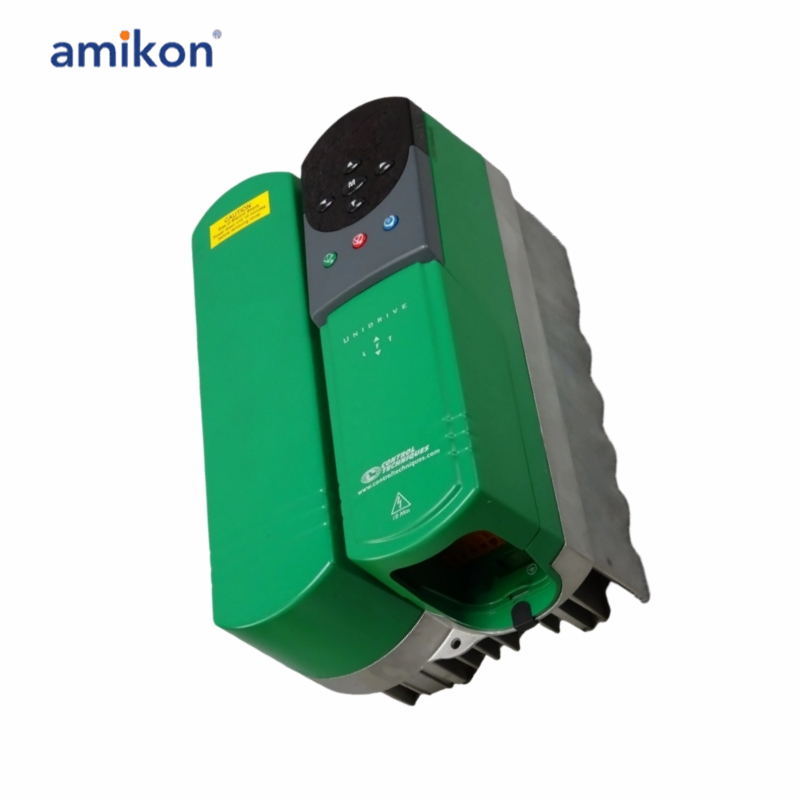

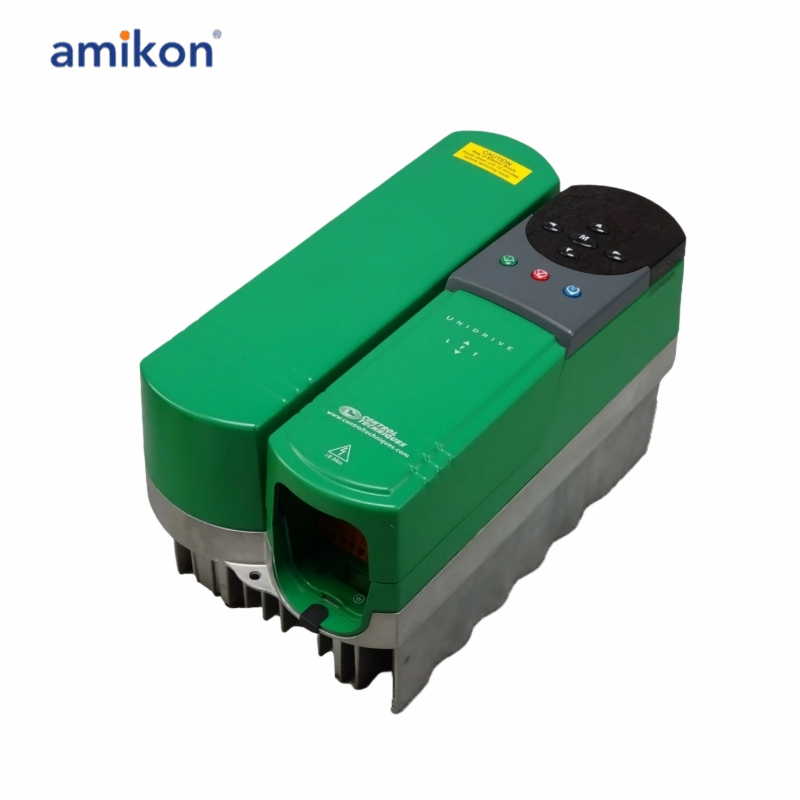

The Control Techniques UNI2401 AC Drive is a versatile and highly efficient motor control solution, designed to meet the diverse needs of modern industrial applications. As part of the Unidrive SP series, this drive offers a robust combination of power, flexibility, and precision, making it ideal for various operational environments. The UNI2401 is equipped with multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen, allowing it to adapt to various motor control requirements easily. With its advanced features and reliable performance, the UNI2401 is valuable for industries looking to enhance their motor control capabilities.
