Manufacturer: Control Techniques
Series: Unidrive
Part Number: UNI3401
Name of Module: Universal Variable Speed AC Drive
Typical Input Current: 27A
Weight: 22 kg (49 lbs.)
Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen
Ambient Operating Temperature: 0 to 50 °C
Minimum Temperature at Power-up: -10°C
Humidity: 95% RH (no condensation)
Ambient Storage Temperature: -40 to 50 °C
Model Size Class: Size 3
Voltage Class: 400V
Voltage Range: 380 to 480 VAC ±10%
Nominal Power Rating: 15 kW (25 HP)
Output Current: 34A

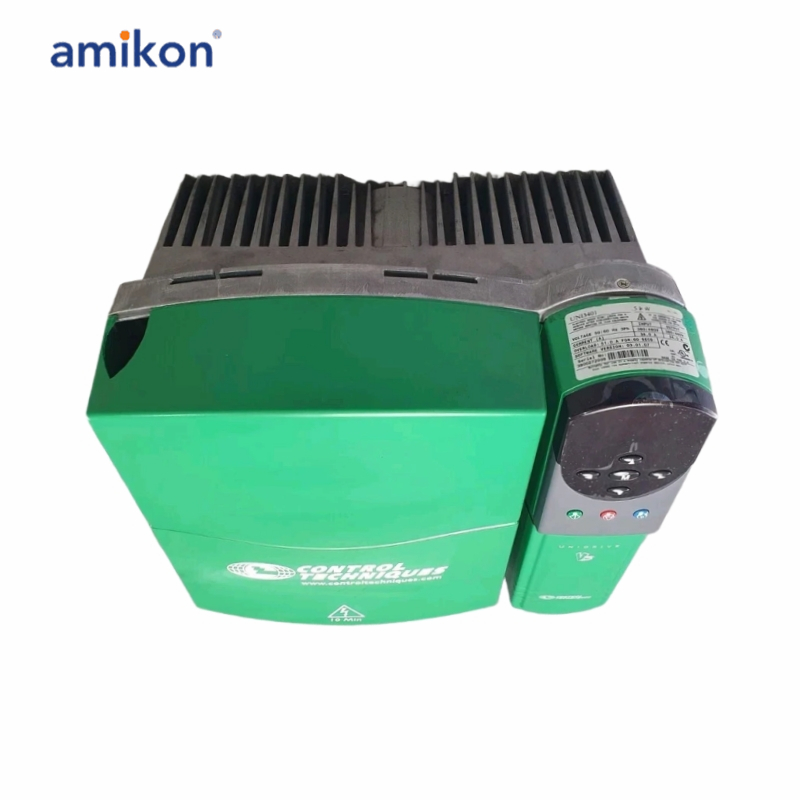

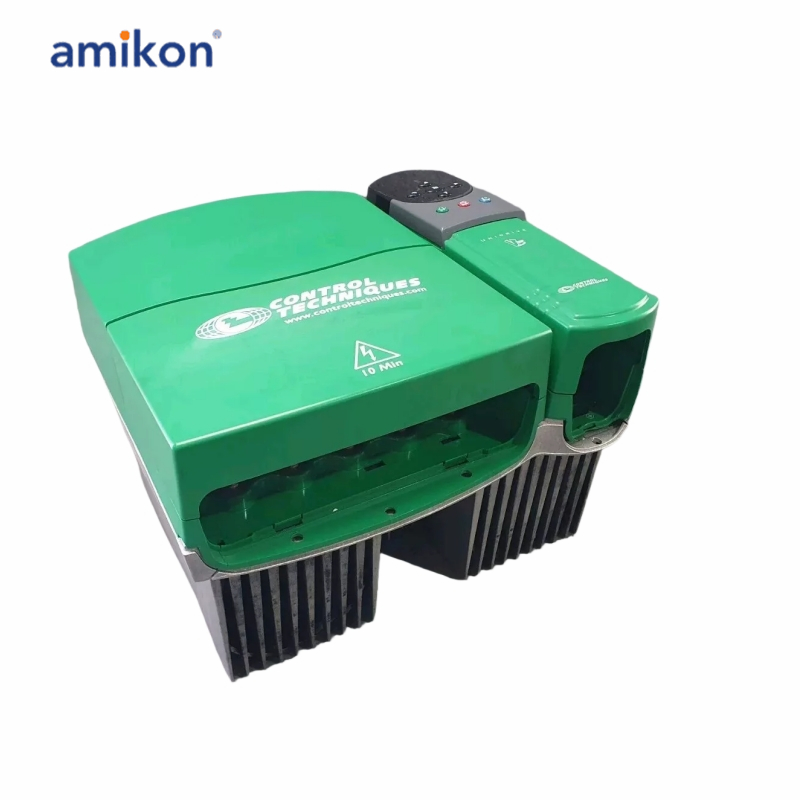

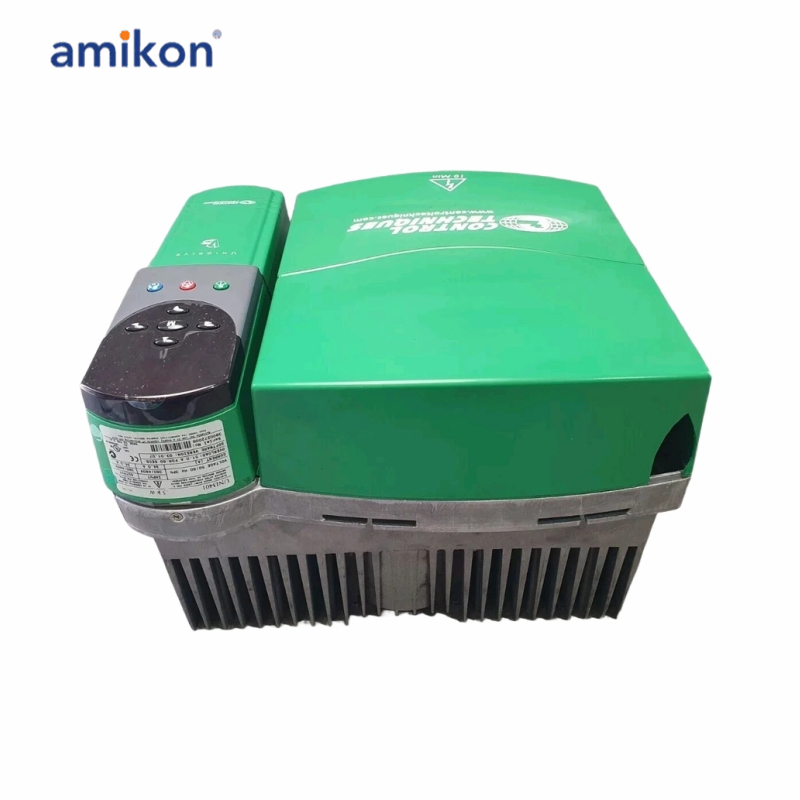

The UNI3401 model is classified as a universal variable speed AC drive developed by Control Techniques. This drive is designed to accommodate different operating conditions with a robust power rating of 15 kW, or approximately 25 HP. Its high performance is aided by supporting an output current of 34A, which ensures reliable operation in demanding applications.
Engineered for operational flexibility, the UNI3401 offers various operating modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, and Regen. Users can select the preferred mode depending on their specific application needs. The device functions reliably within a voltage range from 380 to 480 VAC, maintaining efficiency when used in different electrical environments.
In terms of installation requirements, the drive can perform well within an ambient temperature range of 0 to 50 °C, with a minimum startup temperature of -10 °C. The device's construction allows it to withstand humidity levels up to 95% RH, provided there is no condensation present. For storage, it remains operational across a broader temperature range, from -40 to 50 °C.
The UNI3401 weighs 22 kg (or 49 lbs) and belongs to Size Class 3, reinforcing its compatibility across various setups. Overall, this drive's specifications and operational capacities make it a valuable component for systems needing variable speed control while ensuring longevity and durability in diverse environments.
