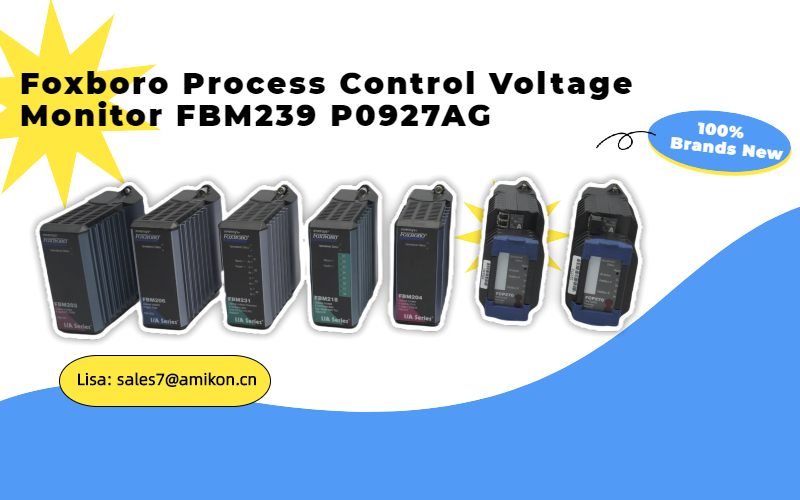

FBM239 P0927AG FOXBORO Process Control Voltage Monitor 16in/Out

October 30,2024

FBM239 P0927AG FOXBORO Process Control Voltage Monitor 16in/Out

Item	Parameter	Description
Input/Output Channels
	Digital input channels	16 groups of isolated digital input channels
	Digital output channels	16 groups of isolated digital output channels
Filter/Debounce Time
	Configurable (No Filtering, 4, 8, 16 or 32 ms)	Time delay to filter out noise or bouncing signals
Voltage Monitor (FBM239 with feed through TA P0924VJ)
	Input voltage	Maximum 30V DC - Maximum allowable input voltage
	ON-state voltage	15 to 30V DC - Output voltage when the input is high
	OFF-state voltage	0 to 5V DC - Output voltage when the input is low
	ON-state input current	Maximum 2.3mA at 30V DC - Maximum input current when the input is high
Source Resistance Limits
	- ON-state	Maximum 1 k Ω at 15V DC - Maximum source resistance when the input is high
	- OFF-state	Minimum 100 k Ω at 30V DC - Minimum source resistance when the input is low

Overview of the FBM239 Interface Module：
The FBM239 Discrete 16DI/16DO Interface Module is an advanced solution designed to facilitate seamless communication between field sensors and process control systems. This module features sixteen digital inputs and sixteen digital output channels, making it an ideal choice for applications requiring precise signal conversion and control. The associated Termination Assemblies (TAs) and Termination Assembly Adapters (TAAs) extend its capabilities, accommodating various voltage levels for inputs and outputs.

Key Features of the FBM239 Module：
The FBM239 module stands out due to its remarkable features, which are tailored to meet the demands of modern process control environments:
1.Versatile Input and Output Options:
The module supports multiple input voltage ranges, including 30 V dc, 60 V dc, 120 V ac, 125 V dc, and 240 V ac. This versatility enables it to accommodate different signal types effectively.
For outputs, it can handle 60 V dc, 120 V ac, 125 V dc, and 240 V ac, providing flexibility for various applications.

2.Robust Design for Harsh Environments:
With a compact and rugged design, the FBM239 is suitable for installation in Class G3 environments, ensuring reliability in challenging conditions.

3.Enhanced Functionality with Termination Assemblies:
When paired with compatible TAs and TAAs, the FBM239 can execute functions that were previously handled by older 100 Series FBM I/O subsystems. This makes it a versatile upgrade for existing systems.

Integration with Existing Systems
The FBM239 module can be integrated with a variety of main FBMs, including the FBM09, FBM10, FBM11, FBM26, and FBM41. Additionally, it can be used alongside expansion FBMs like FBM14, FBM15, FBM16, FBM27, or FBM42. This compatibility allows for scalability and flexibility in system design, making it easier for users to expand their setups as needed.

Applications of the FBM239 Module
The FBM239 module is designed for a range of applications, including:
Contact Sensing: The digital input channels can be utilized for detecting the status of various mechanical switches or sensors, ensuring accurate monitoring of system status.
DC Voltage Monitoring: This module is particularly useful in environments where precise voltage levels need to be monitored to ensure optimal performance and safety.
Controlling External Loads: The digital output channels can be leveraged to switch external loads on and off, providing control over various devices in a process control system.

Conclusion：
The Foxboro Process Control Voltage Monitor FBM239 P0927AG is a versatile and reliable interface module that enhances process control systems through its robust design, extensive input/output capabilities, and compatibility with existing systems. With its ability to operate in harsh environments and support a wide range of applications, the FBM239 stands out as a valuable asset for modern industrial automation. If you are considering upgrading your control systems, the FBM239 module is a worthy option that can provide both flexibility and reliability.
