Collector-Emitter Voltage : 1200 V
Collector Current: 75 A
Gate-Emitter Voltage : ±20 V
Collector Power Dissipation: 390 W
Junction Temperature : –40 °C to +150 °C
Isolation Voltage: 2500 VAC (1 min)
Collector-Emitter Saturation Voltage : 2.1 V (typ.)
Gate Threshold Voltage: 4.5–8.5 V
Thermal Resistance: 0.32 °C/W
Package Type: Six-in-one U-Series Module

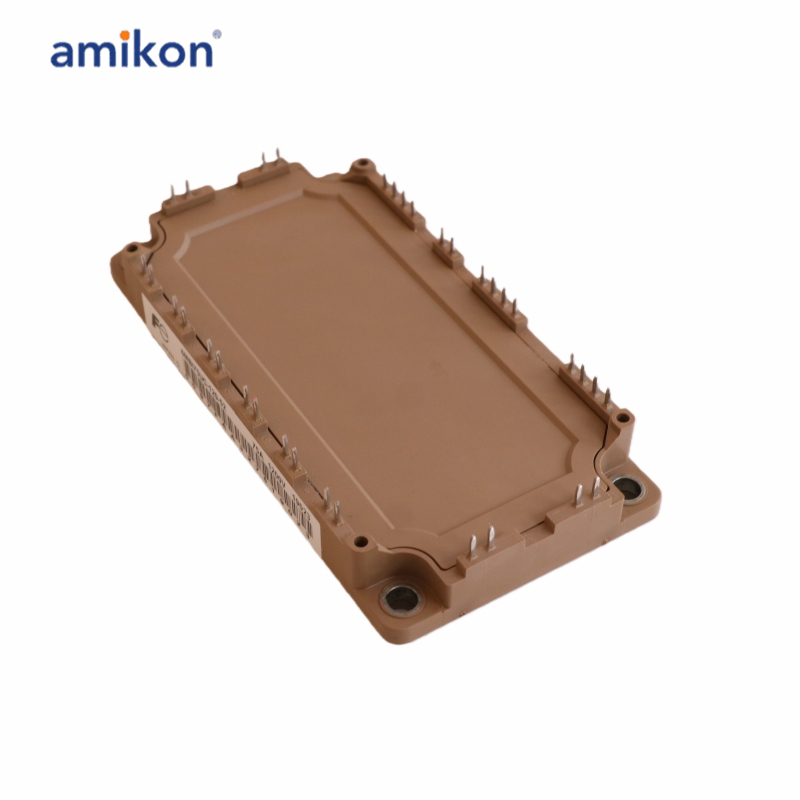

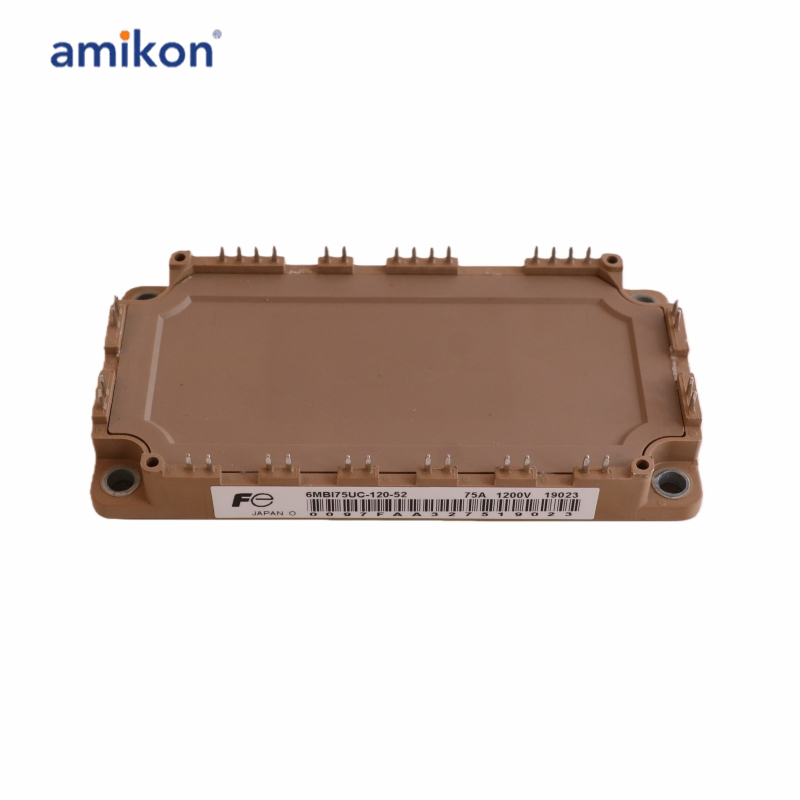

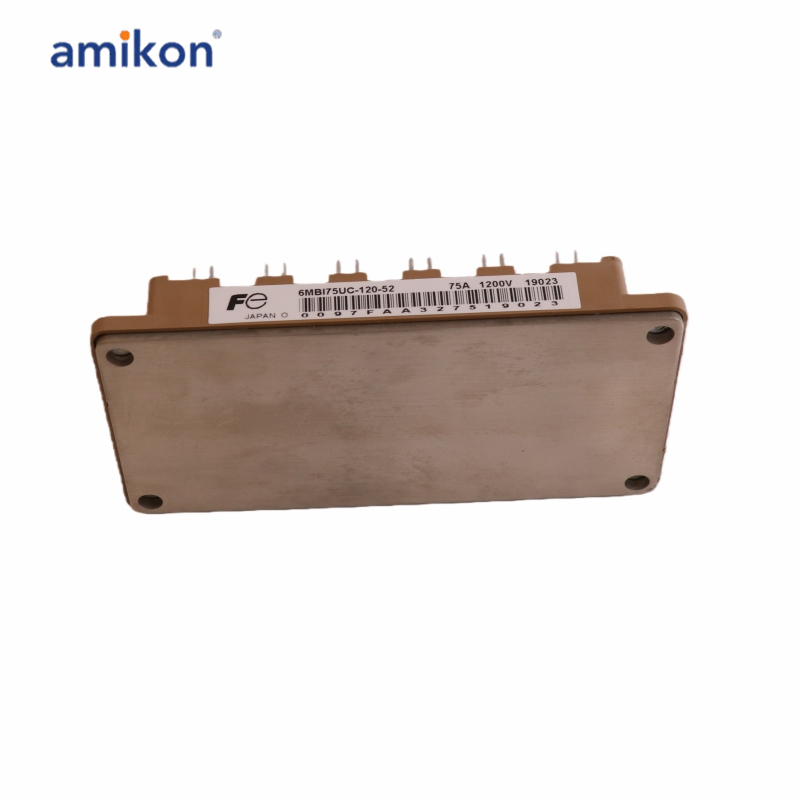

The Fuji 6MBI75UC-120-52 is a high-performance IGBT power module designed for industrial applications that require efficient power conversion and reliable operation. Belonging to Fuji Electric’s U-Series, this six-in-one IGBT module integrates six insulated gate bipolar transistors and corresponding free-wheeling diodes within a compact, low-inductance package. It features a 1200V collector-emitter voltage rating and a 75A continuous collector current capacity, making it ideal for use in inverter systems, motor drives, uninterruptible power supplies (UPS), and servo control systems. The 6MBI75UC-120-52 module offers fast switching speed, low power loss, and excellent thermal performance, ensuring high efficiency and long service life in demanding industrial environments.
