Manufacturer: GE Fanuc Emerson
Product Type: Analog Input Module
Product Line: VersaMax
Part Number: IC200ALG230
Weight: 0.31 lbs (0.14 kg)
Voltage Type: Bipolar or Unipolar (default Bipolar)
Number of Channels: 4 analog inputs
Analog Input Resolution: 12 bits
Input Type: Single‑Ended
Response Time: 5.0 ms
Update Rate: 0.4 ms
Configuration Type: 2 Jumpers
Backplane Current Consumption: 125 mA at 5 VDC

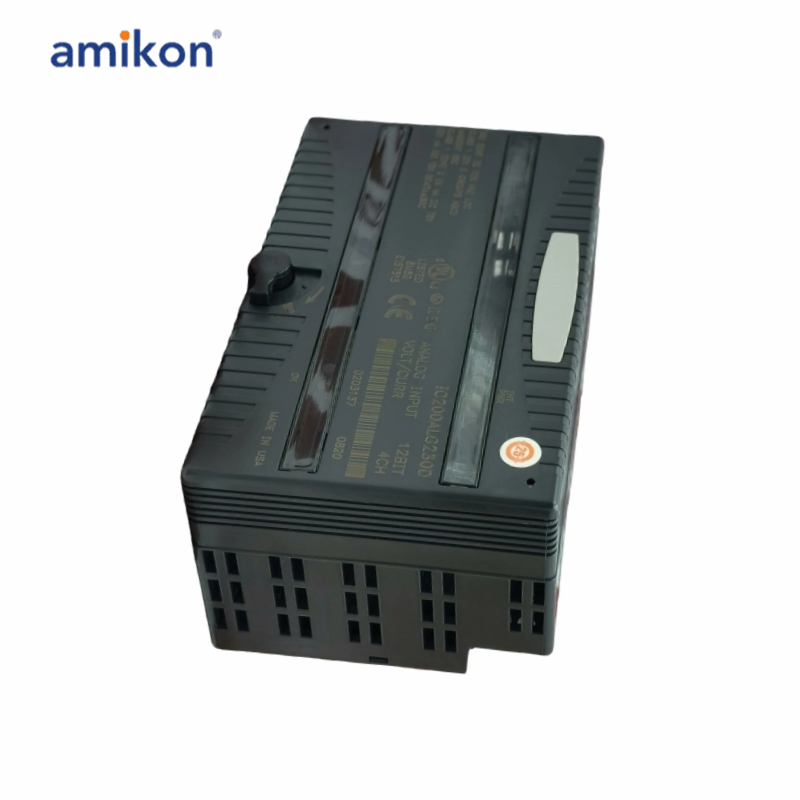

The IC200ALG230 is an analog input module from the Versamax modular I/O and control platform. This module is a compact analog input module featuring Four (4) individually configurable voltage or current analog input channels. This module supports interfacing of analog signals, particularly unipolar 0 to 10VDCand bipolar +/-10 VDC voltage signals, and 4-20 mA current signal. The IC200ALG230 is provided with Two (2) status LED indicators for locally reporting the operational state of the module, Specifically, INT POWER LED indicating supply of internally generated field power and OK LED indicating backplane power being actively supplied to the module. Two (2) jumpers are present to this analog input module for setting the mode of operation of the module whether voltage or current and unipolar of bipolar data. The IC200ALG230 has a built-in Analog to Digital converter with a resolution of 4?A = 8 counts when configured for Current operation and 2.5 mV = 8 counts for voltage configuration. This module has a typical response time of 0.4 ms and a filter response of 5.0 ms. The input data of this module is configurable to be held to the last state or go to a defined value when module error is detected. The IC200ALG230 can be installed with an auxiliary I/O terminal for wiring of signals. Terminal part numbers are IC200TBM001, 002, or 005. Additionally, terminal style I/O carrier may also be used with catalog number IC200CHS001, 002, or 005, Compact Terminal-style I/O Carrier with catalog number IC200CHS022, 025 and connector style I/O carrier with part number IC200CHS003.
