Product Specifications

Manufacturer	GE
Part Number	IC660BBA104
Weight	3.13 lbs (1.42 kg)
Series	Rx7i PACsystem
Input Signal	4-20 mA
Input Signal Resolution	1 µA
Input Conversion Time	16.6 ms to 400 ms (user selectable)
Output Resolution	6 µA
Nominal Block Power	115 VAC / 125 VDC
Block Power Input Range	93-132 VAC / 105-145 VDC
Dimensions (H×W×D)	8.83 × 3.56 × 4.42 inches
Input Accuracy	0.1% of full-scale reading
Number of Outputs	2
Output Accuracy	0.15% of full-scale reading
Heat Dissipation	12 Watts
Status LEDs	Unit OK, I/O Enabled
Block-to-Block Isolation	1500 Volts
Group-to-Group Isolation	1500 V RMS

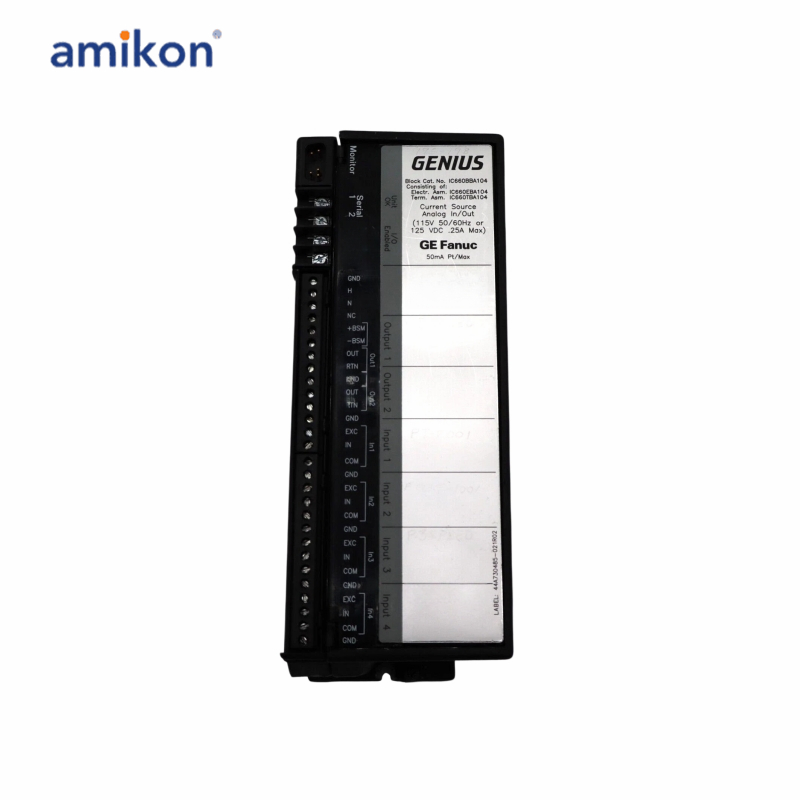

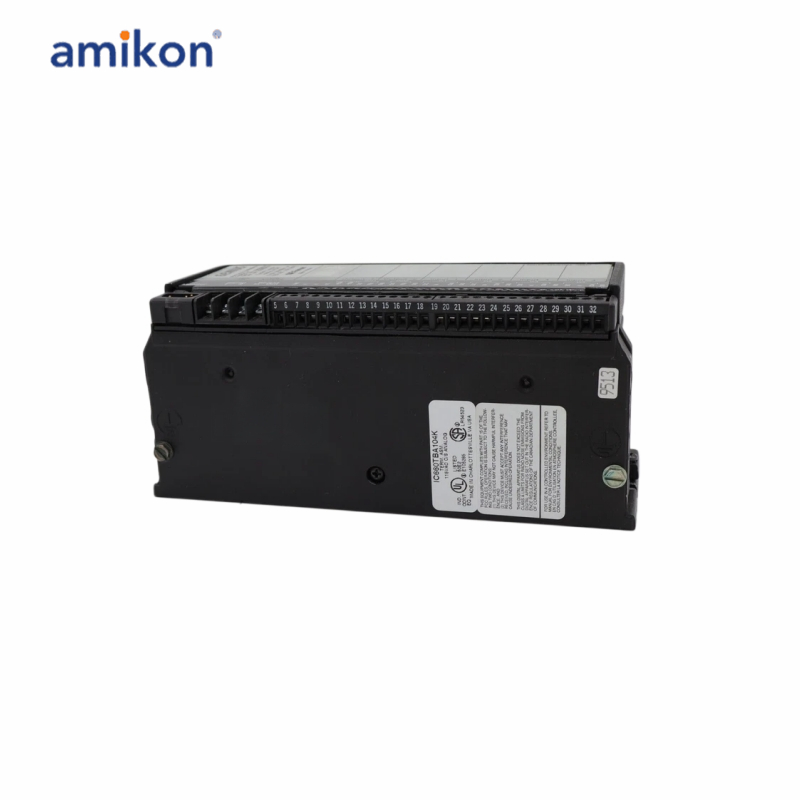

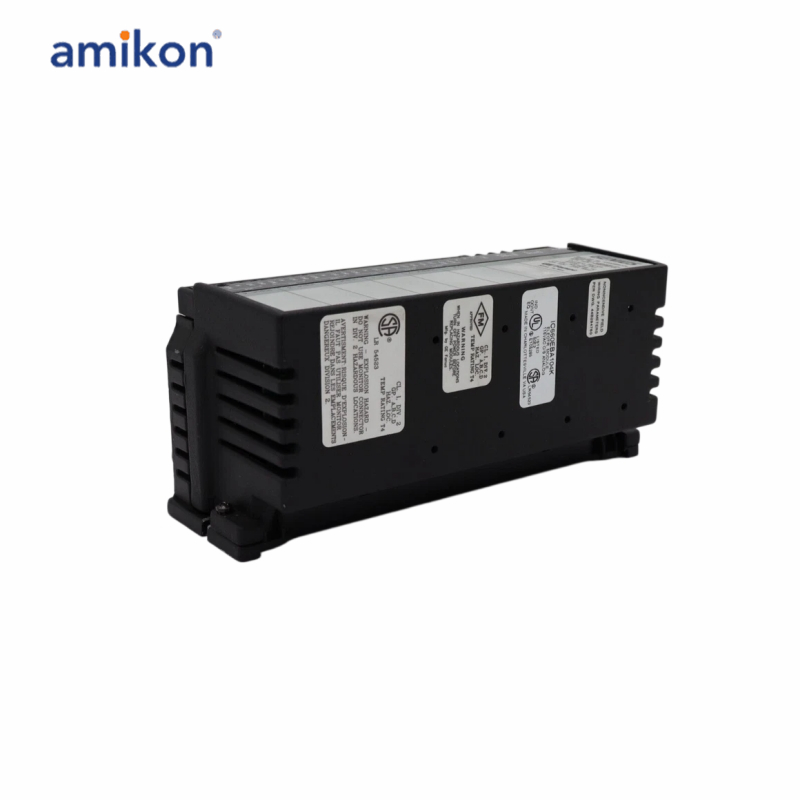

The IC660BBA104 is a is a Current-source combination I/O block featuring Six (6) input circuits that is comprised of Four (4) analog input channels capable of receiving 4-20 mA signals and Two (2) output channels that deliver 4-20 mA signals. Additionally, this module has group to group isolation, block to block isolation and individual channel isolation of the input channels, rated 1500 V.
The IC660BBA104 input channels specifically feature an accuracy of 0.1% of full scale reading at 25 Degree Celsius, resolution of 1 µA, user configurable conversion time of 16.6ms to 400ms and overrange capacity of 0 mA to 25 mA. Each of the input channels are designed with individual diagnostics such as Under / Overrange, High /Low Alarm, and Open Wire detection.

Frequently asked questions：

Q1: How many input channels does the IC660BBA104 have?
A1: The IC660BBA104 has Four (4) input channels designed to receive 4-20 mA signals.

Q2: Does the IC660BBA104 operate as an output module also?
A2: Yes. The IC660BBA104 has Two (2) output circuitries, providing 4-20 mA signals.

Q3: What is the external power supply voltage requirement of the IC660BBA104?
A3: The IC660BBA104 is externally powered by a 115VCA / 125 VDC supply voltage.

Q4: How many output channels does this block provide?
A4: The IC660BBA104 block provides 2 analog output channels.

Q5: What is the IC660BBA104 block-to-block isolation rating?
A5: The IC660BBA104 block-to-block isolation rating is 1500 Volts, providing electrical isolation and protection between connected systems.

Product Applications

Mining and heavy industry
Oil and natural gas
