Product Specifications

Manufacturer	GE Fanuc
Part Number	IC670MDL930
Rated Voltage	5/24/125 Volts DC, 120/240 Volts AC
Number of Channels	Eight (8) relay outputs
Voltage Range	0-130 Volts DC, 0-265 Volts AC
Frequency Range	47-63 Hertz
Maximum Load Current	16 Amps per module
Maximum Resistive Load Current	16 A per module
Current drawn from BIU	313 mA
LED Indicators	Individual channel LED; PWR LED
Switching Frequency	20 cycle/minute
Maximum Inrush Current	5 Amps for 20mS
Minimum Load Current	10 mA per point

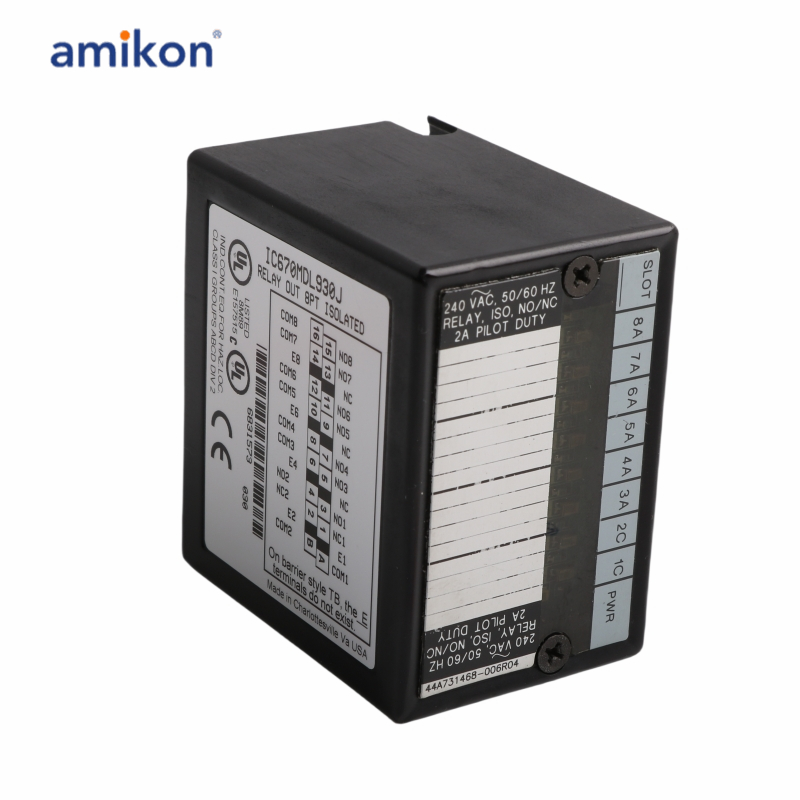

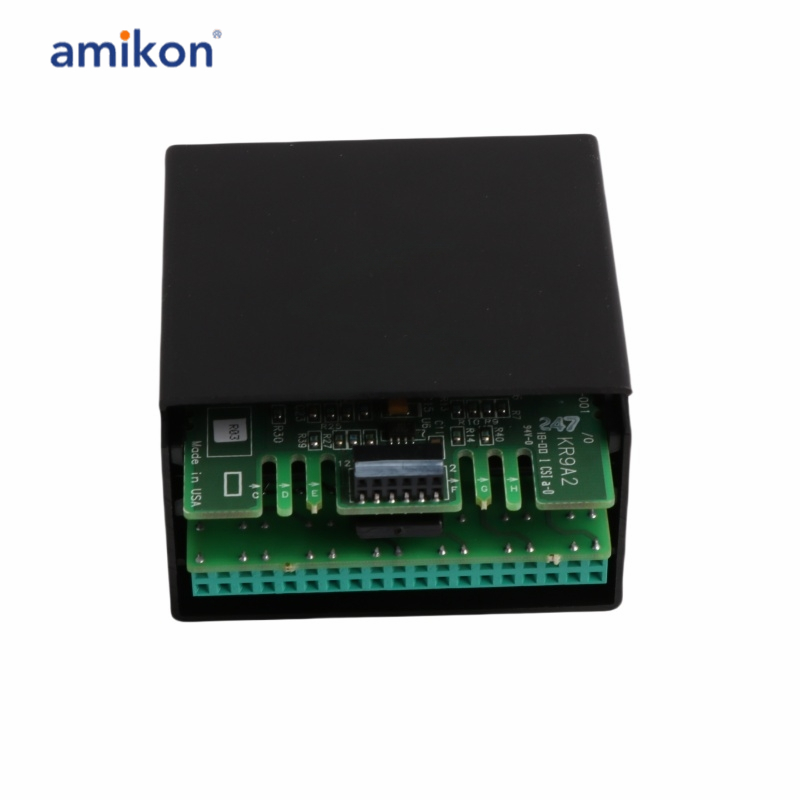

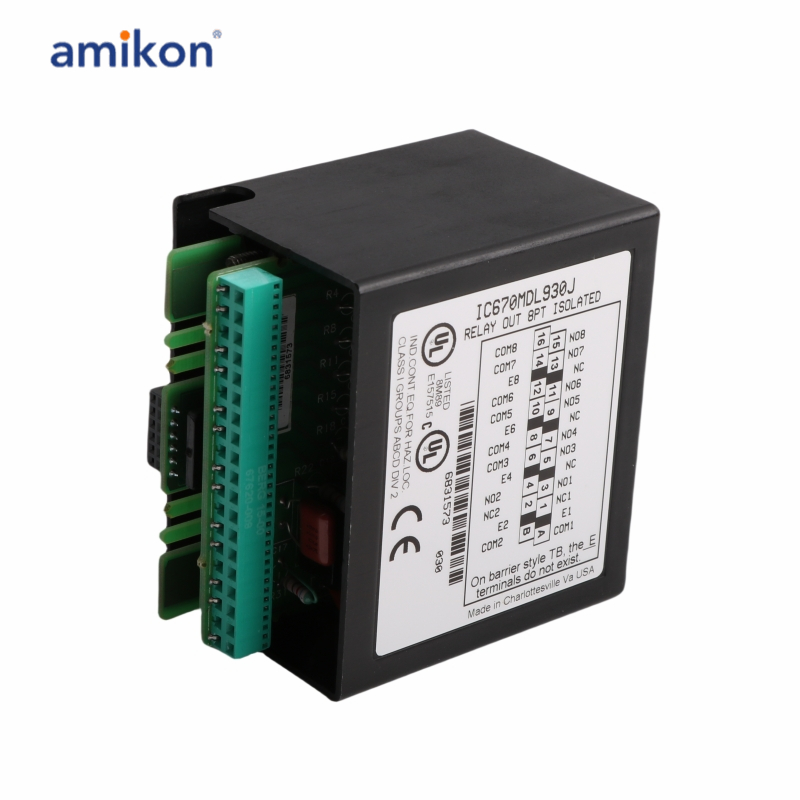

The IC670MDL930 is a relay output module from the Field control module series of GE Fanuc. This module comes with individually isolated channels, specifically, Six (6) Form A or Normally Open (N.O.) contacts and Two (2) Form C Normally Open (N.O) and Normally Closed (N.C.) contact outputs. Each output contacts are rated 5VDC / 24 VDC / 125 DC or and 120 / 240 VAC nominal voltages with actual voltage ranges of 0-130 VDC, 0-265 VAC, 47-63 Hz and the maximum load current per module is 16 A. The module has a fixed coil, moving armature relay type and has current consumption of 313 mA, maximum.

The module comes with typical rating of isolation between input to logic, user input to frame ground and group to group isolation specifically, 250 VAC continuous, 1500 VAC for 1 minute. The module maximum current for resistive loads rated 2.0 Amps from 5 to 265VAC; 2.0 Amps from 5 to 30VDC and 0.2 Amps from 31 to 125VDC while the maximum inrush current is 5 A for 20 ms and maximum load current of 10 mA per input. The module’s response time for ON and Off signal transition are typical which is maximum of 10 ms while the maximum switching frequency of each channel is 20 cycles per minute if used with an inductive load. The contact outputs of the module are made of Silver Alloy with contact resistance of 0.2 ohms at 1 A at 6 VDC. Each contact has operational life of 20 x 10^6 operations (mechanical) and 10^5 operations at rated resistive load (electrical).

Frequently asked questions：

1. What voltage range does the GE IC670MDL930 support?
The GE IC670MDL930 supports a wide input voltage range of 0–130 VDC and 0–265 VAC, making it suitable for various industrial control applications.

2. What is the IC670MDL930 operating frequency range?
The IC670MDL930 module operates within a frequency range of 47–63 Hz, ensuring compatibility with standard industrial AC power systems.

3. What is the maximum load current of the IC670MDL930 module?
The IC670MDL930 maximum load current is 16 A per module, allowing the module to handle multiple field devices efficiently.

4. How much current does the GE IC670MDL930 draw?
The IC670MDL930 module has a current draw of 313 mA, helping maintain efficient power consumption while providing reliable operation.
