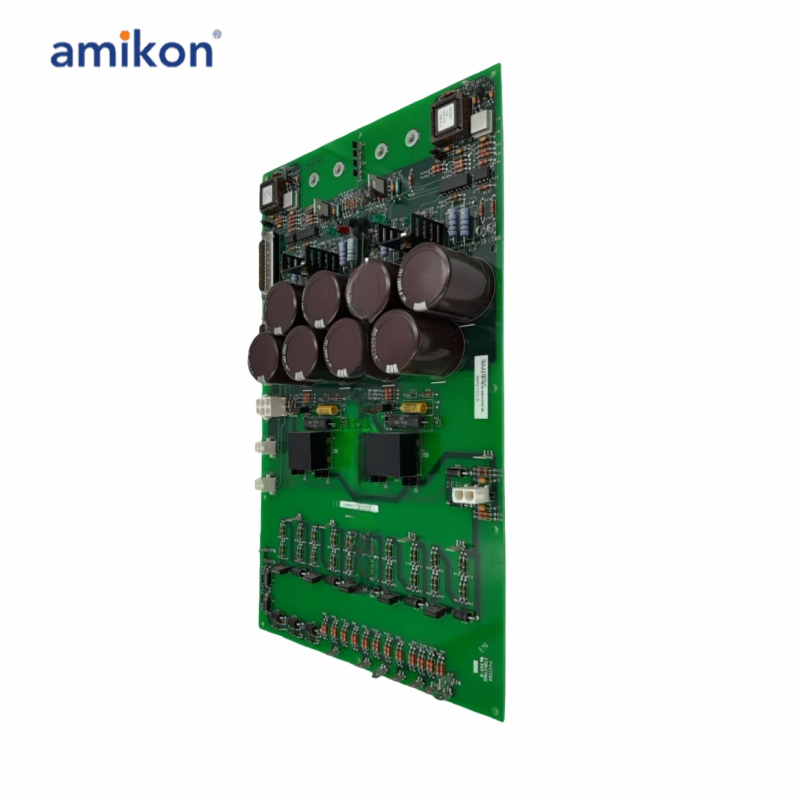

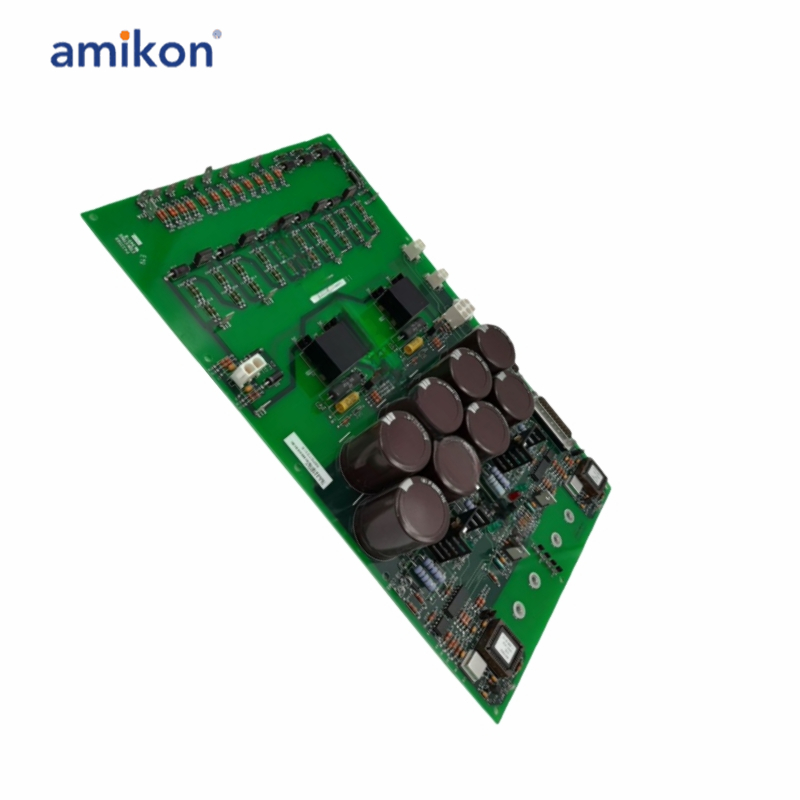

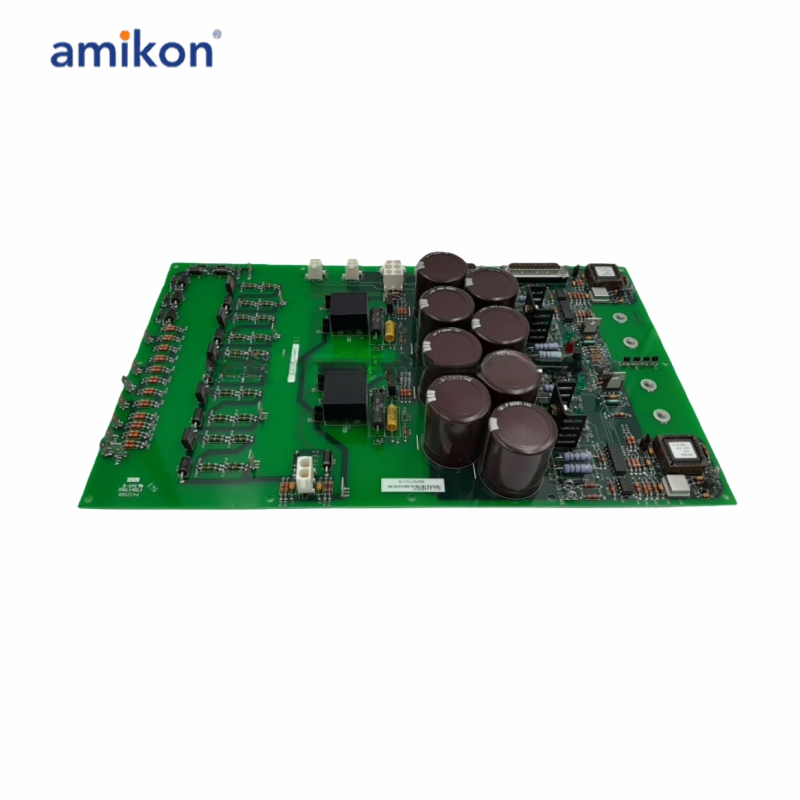

GE IS200EDEXG1AFA Excitation Board

The GE IS200EDEXG1AFA is an Exciter De-Excitation Board designed for GE EX2100 Excitation Control Systems. Itmanages energy dissipation during generator shutdown to ensure safe, efficient operation. The board stores anddissipates excess generator energy, provides conduction sensing feedback, retains voltage during power failures, andinitiates SCR de-excitation firing. Typically, the EXTB board controls it, but the board can act independently if controliails.

Frequently asked questions：

Q1: What is the GE IS200EDEXG1AFA module used for?
A: The GE IS200EDEXG1AFA is an expansion module used in generator excitation control systems to support signal processing, sensing, and communication with other control boards.
Q2: What power input does the IS200EDEXG1AFA require?
A: The module operates with a 24 V DC power input, which is internally converted to approximately 125 V DC for internal functions.
Q3: What field voltage can the module handle?
A: The GE IS200EDEXG1AFA can handle field voltages up to about 1500 V DC, making it suitable for high-voltage excitation systems.
Q4: What is the IS200EDEXG1AFA peak current capability of the module?
A: The IS200EDEXG1AFA module supports peak currents greater than 1000 A for short-duration discharge events.
Q5: What type of sensors are used in the IS200EDEXG1AFA?
A: It uses Hall-effect conduction sensors to monitor electrical current and system conditions.

Product Applications

Thermal power generation: In large-scale gas-fired or coal-fired power plants, it is used to control the excitation of synchronous generators and ensure safe demagnetization during shutdown.
Hydroelectric power generation: It manages the excitation process of hydroelectric power station generators to ensure that the magnetic energy of the generators can be rapidly and safely dissipated in case of emergency shutdown or planned shutdown.
Nuclear power plants: In extremely reliable nuclear power environments, this module provides critical demagnetization logic and SCR (thyristor) triggering functions.
Oil and gas: For self-contained power generation systems in large compressor stations or offshore platforms.
Steel and metallurgy: It manages the excitation of high-power synchronous motors for large rolling mills and other heavy equipment.
Mining: It is used for power supply and control systems of large mining equipment or grinding machines.

Core functional features of the system
Energy management: Stores and dissipates excess field energy when the generator is shut down.
Safety redundancy: Even if the control board (such as EXTB) fails, this module can independently trigger the demagnetization process to prevent equipment damage.
Voltage maintenance: Can maintain voltage during a power failure (Power Failure) to ensure system stability.
