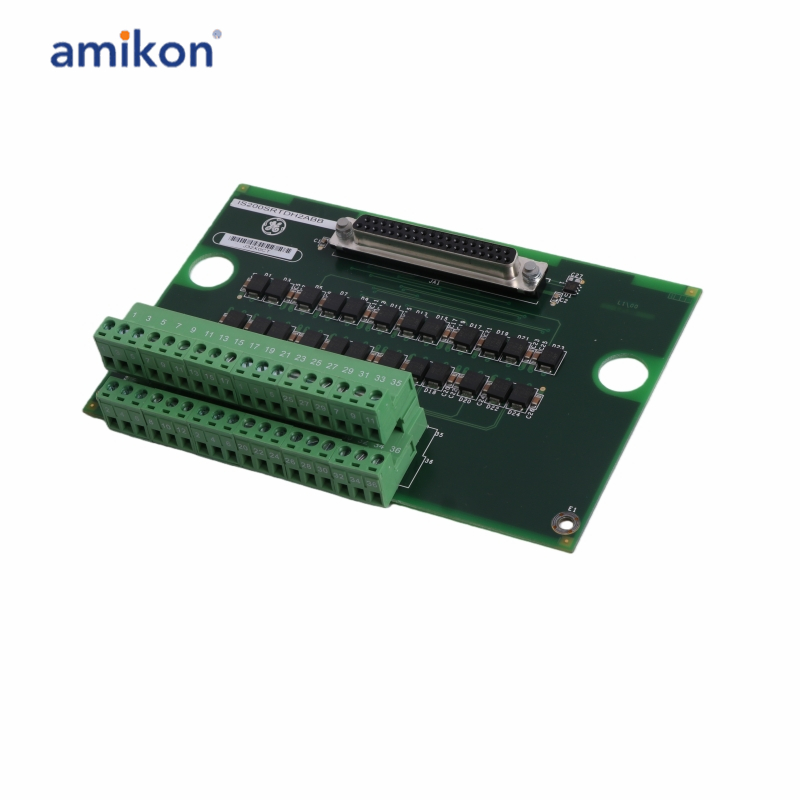

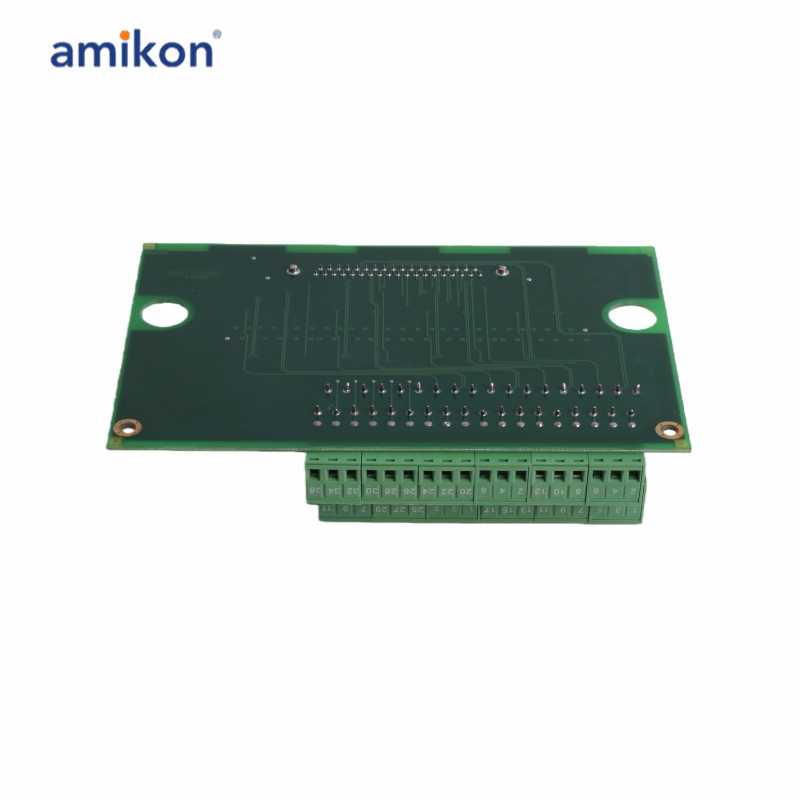

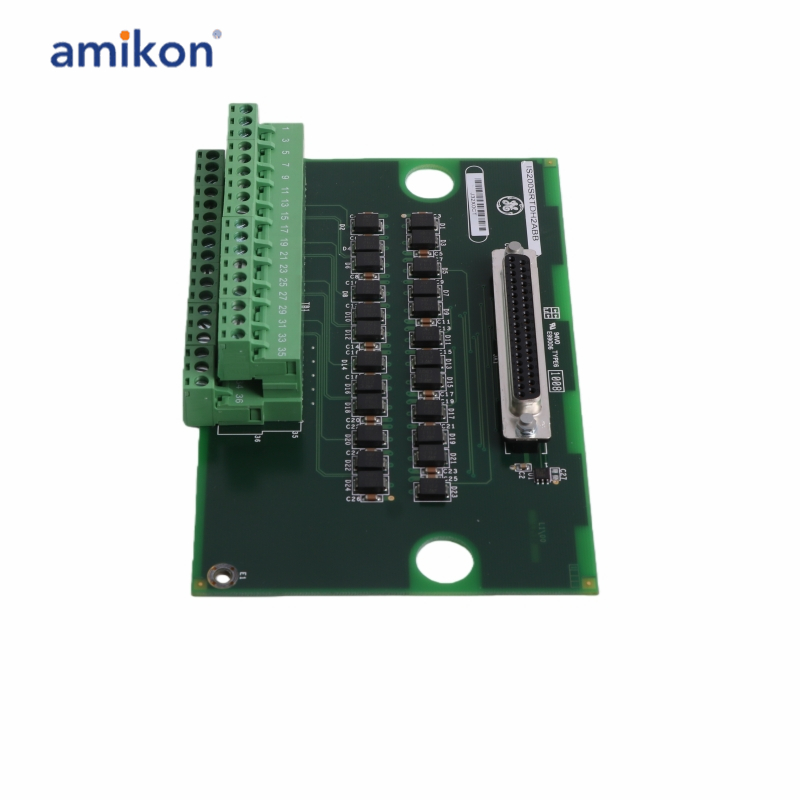

GE IS200SHRAH2A HART Analog Input/Output Board

Manufacturer: General Electric (GE)
ModeI Number: IS200SHRAH2A
System Compatibility: Mark Vle /Mark VleS control systems
Module Type: HART Analog Input/Output Terminal Board
Input Channels: 10 analog inputs(4-20 mA, HART-enabled)
Analog 0utputs: 2 outputs(±10 Vor 4-20 mA)
Resolution: 16-bit A/D conversion
Signal Types: 4-20 mA current loop,±10 V DC
Isolation: Channel-to-channel and channel-to-ground
Operating Voltage: 24 VDC nominal
Operating Temperature: -40 。C to +85 °C
Storage Temperature: -40 °C to +85 °C
Mounting: DIN-rail installation, metal enclosure
Certifications: UL, CE, CSA,IEC 61508 SIL2
Weight: 0.9 kg

The IS200SHRAH2A HART-enabled Input/Output board is perhaps examined through the lens of its intended functionality within the greater Mark VIe Series. This IS200SHRAH2A PCB is an Input/Output board that accepts ten total analog inputs and two analog outputs, which allow for crucial interfacing between the IS200SHRAH2A PCB and the corresponding PHRA and YHRA I/O packs that also exist in the Mark VIe Series.

Frequently asked questions：

Q1: What type of signals does the IS200SHRAH2A support?
It supports 4-20 mA analog inputs and outputs, as well as ±10 V Dc signals.
Q2: Can it integrate with smart HART devices?
Yes, it is fully HART-enabled for communication with smart field instruments.
Q3: What is the IS200SHRAH2A temperature operating range?
The board operates reliably between -40 °C and +85 C in industrial environments.
Q: What is the operating voltage requirement for the IS200SHRAH2A?
A: The board operates with a 24 VDC nominal power supply.

Key Features and Functionality
HART Communication: Enables remote monitoring, configuration, and diagnostics of smart field devices.
I/O Pack Integration: Specifically designed to interface with PHRA and YHRA I/O packs.
Safety Certifications: Certified for mission-critical applications, including IEC 61508 SIL2.
Configuration: Uses 24-point terminal blocks and approximately 20 customizable jumpers for manual field configuration, such as selecting between current and voltage inputs.
Diagnostic Capabilities: Includes an onboard ID chip that identifies the board to the system for advanced fault detection and self-calibration.
