Product Specifications

Model Number	F3422
Type	8-Channel Relay Module
Number of Channels	8
Switching Voltage	Up to 60 V DC/AC
Switching Current	Max 4 A, peak inrush 12 A for 4 seconds
Contact Material	AgNi 0.15 with hard gold plating
AC Non-Inductive Load	Up to 240 VA
DC Non-Inductive Load	Up to 120 W
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Ambient Humidity	95% maximum, non-condensing

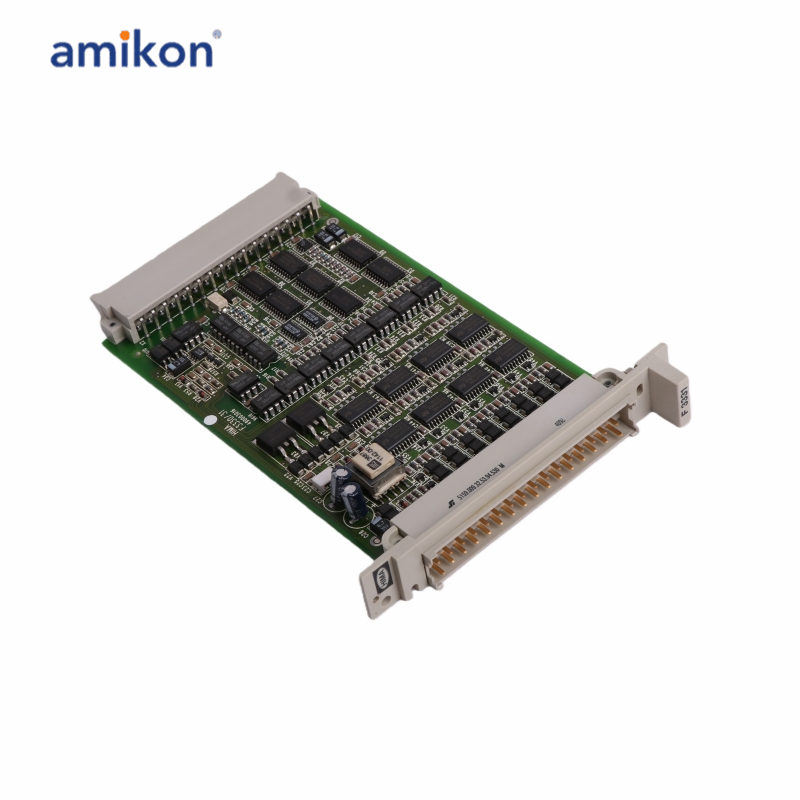

The HIMA F3422 8-Channel Relay Module is a safety-rated digital output module that provides eight independent output channels for use in safety instrumented systems (SIS) and critical industrial applications. Operating with a nominal 24 VDC supply, each channel supports load currents of up to 2 A and utilizes solid-state switching technology to deliver fast, reliable, and maintenance-free output control. With a typical response time of less than 10 ms, the module enables rapid execution of safety-related control functions.
The F3422 offers diagnostic coverage exceeding 99%, meeting SIL 3 functional safety requirements in accordance with IEC 61508. It operates reliably in ambient temperatures ranging from -40°C to +70°C and provides IP20 protection when installed in a suitable enclosure.

Frequently asked questions：

Q1: What is the HIMA F3422 8-Channel Relay Module used for?
A1: The HIMA F3422 8-Channel Relay Module provides reliable relay outputs for controlling field devices such as contactors, solenoid valves, alarms, and other actuators in industrial and safety systems. It supports dependable signal switching in critical control applications.

Q2: How many relay channels does the F3422 provide?
A2: The F3422 module features 8 independent relay output channels, allowing multiple field devices to be controlled simultaneously.

Q3: What is the maximum switching voltage supported by the F3422 module?
A3: The HIMA F3422 supports a switching voltage of up to 60 V AC/DC, making it suitable for a wide range of industrial control applications.

Q4: What is the F3422 maximum AC load capacity?
A4: The F3422 relay module can switch up to 240 VA for non-inductive AC loads, ensuring reliable operation with compatible control circuits.

Q5: What is the F3422 maximum DC load capacity?
A5: For non-inductive DC loads, the F3422 module supports up to 120 W, providing stable switching performance for DC-powered equipment.

Product Applications

Oil and Gas
Chemicals and Petrochemicals
Power Generation and Transmission
Railway and Aerospace
