Ambient Temperature: 0...+60 °C
Storage Temperature: -40...+85 °C
Pollution Degree: II in accordance with IEC/EN 61131-2
Altitude: < 2000 m
Housing: Standard IP20
Supply Voltage: 24 VDC
Response Time: ≥ 10 ms
Ethernet Interfaces: 2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch
Operating Voltage: 24 VDC, -15...+20 %, rPP ≤ 15 %
Current Input:
Max. 11 A (maximum load)
For UL, only 10 A allowed
Idle current: 0.45 A
Fuse (External): 12 A time-lag (T)
Max. Dimensions (without plug):
Width: 205 mm (with housing screws)
Height: 114 mm (with fixing bolt)
Depth: 88 mm (with earth)
Weight: Approx. 1.3 kg
Number of Outputs: 2 (non-galvanically separated)
Output Voltage: ≥ L+ minus 4 V
Output Current: Approx. 60 mA
Minimum Load: None
Switching Time: ≤ 100 µs

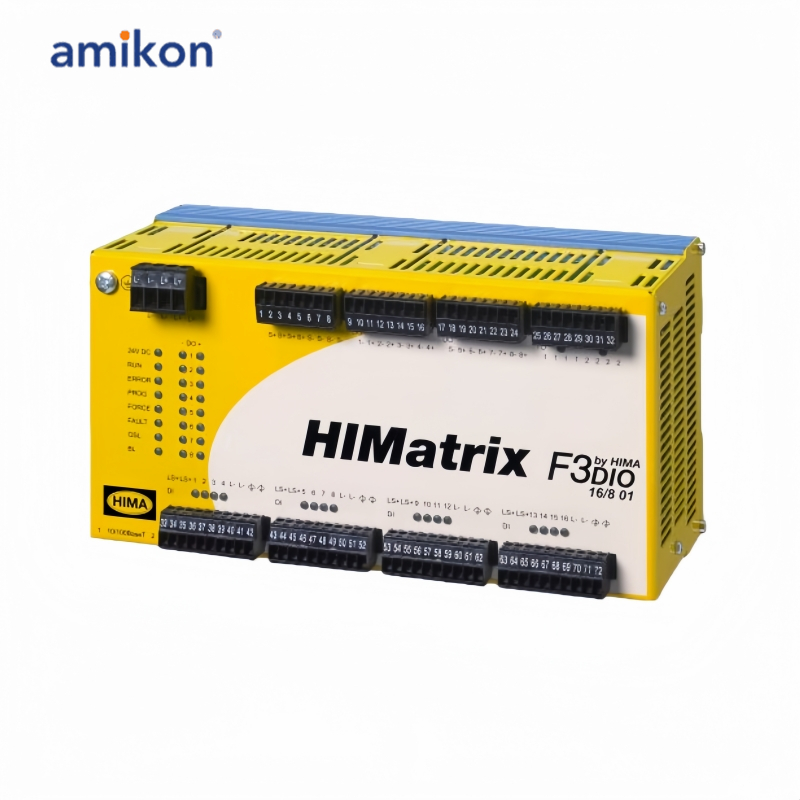

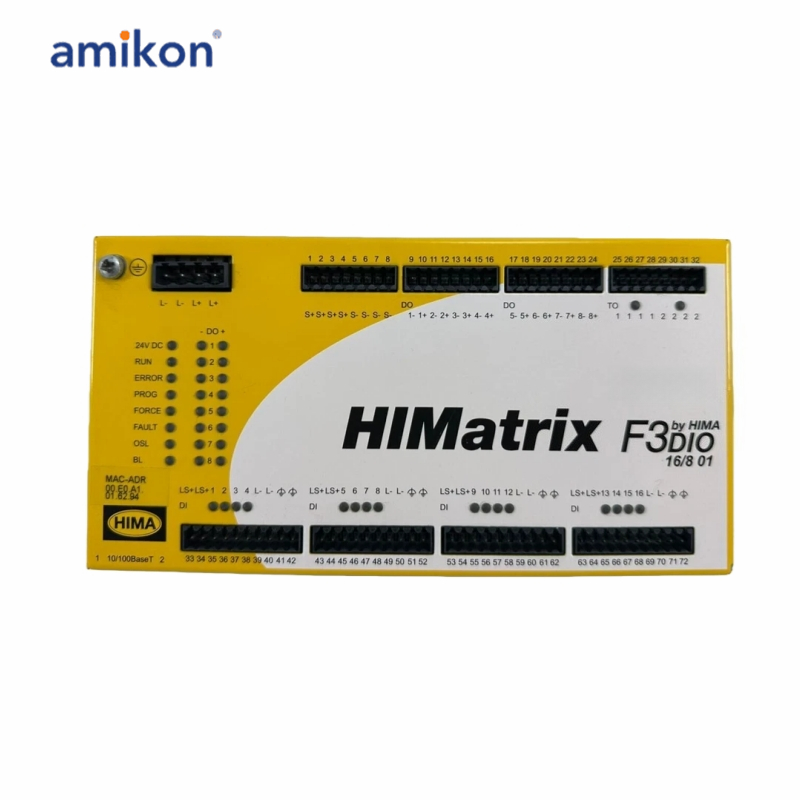

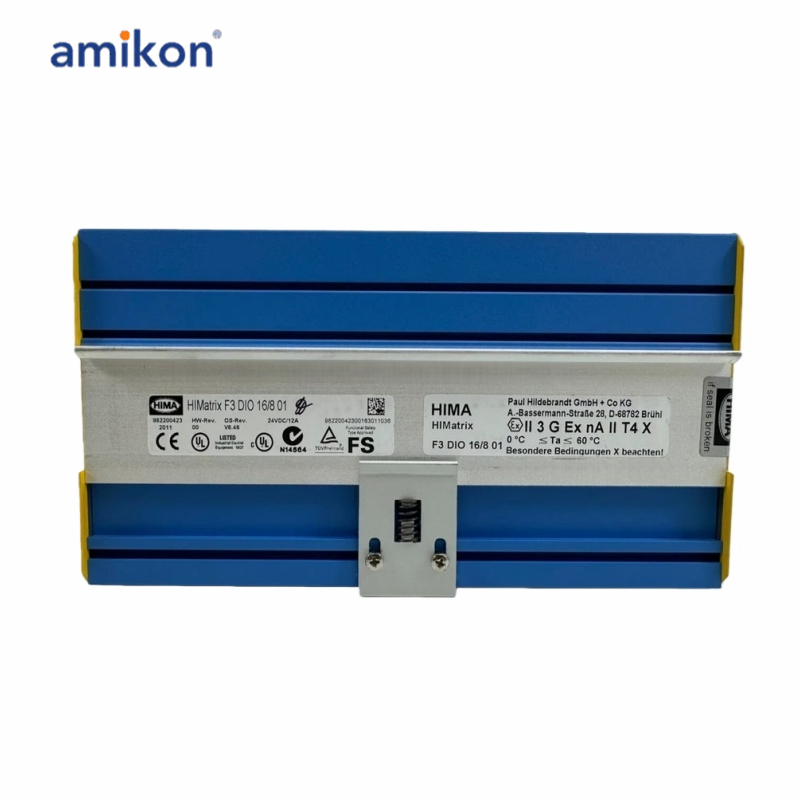

F3 DIO 16/8 01 is a safety-related remote I/O module from HIMA, designed for industrial systems. Housed in a compact metal casing, it features 16 digital inputs, 8 2-pole digital outputs, and 2 pulsed outputs. The 2-pole outputs consist of two switches connected in series, one switching to L+ and the other switching to L-.
