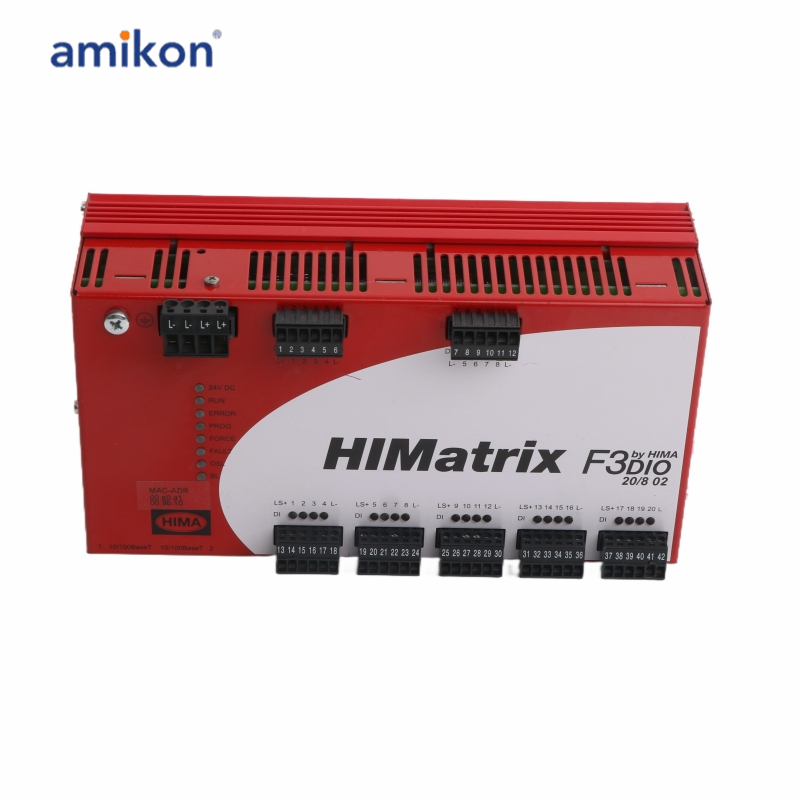

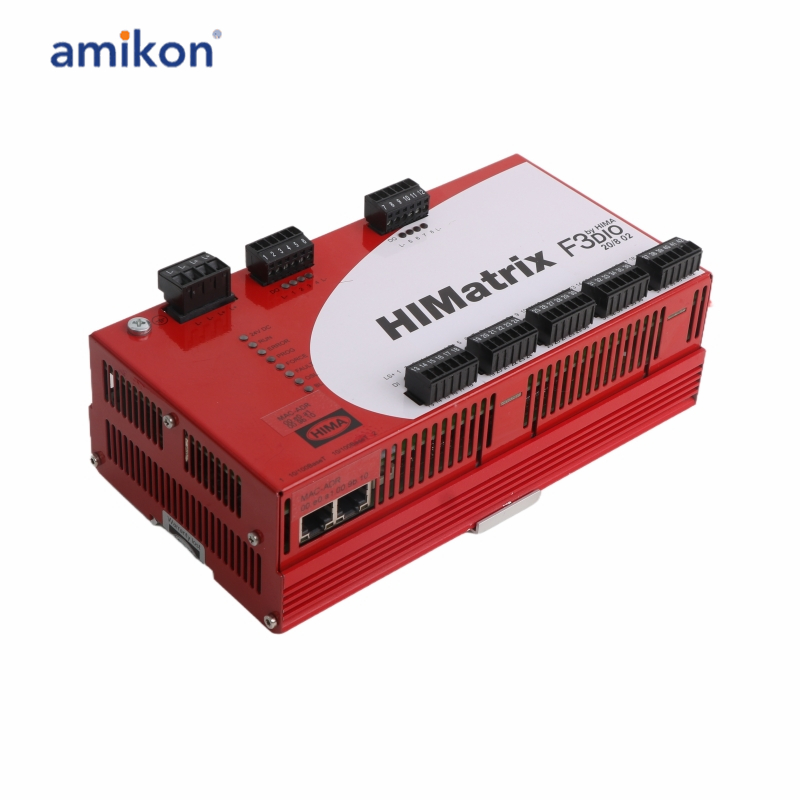

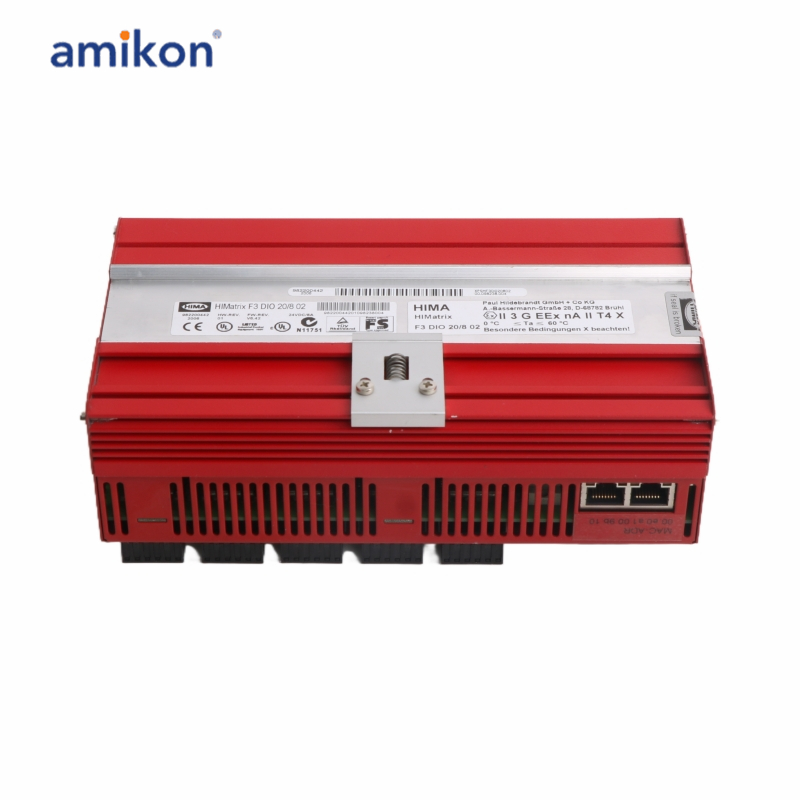

The safety-related F3 DIO 20/8 02 remote I/O is a compact system in a metal housing with 20 digital inputs and 8 digital outputs.
The remote I/O is available in various model variants for SILworX and ELOP II Factory, Remote I/Os are connected to individual HIMax or HIMatrix controllers via safeethernet. They are used to extend the I/O level, but are not able to run any user program by themselves.
The remote I/O is equipped with safety-related digital inputs and outputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet. The outputs are safely assigned their values by the connected controller via safeethernet.
The remote I/O is equipped with 20 digital inputs. The state (HIGH, LOW) of each input is signaled by an individual LED.
Mechanical contacts without own power supply or signal power source can be connected to theinputs. Potential-free mechanical contacts without own power supply are fed via an internal short-circuit-proof 24 V power source (LS+). Each of them supply a group of 4 mechanical contacts. Figure 1 shows how the connection is performed.

FAQ
Q1: What is the primary application of the F3DIO20/8 02 module?
A1: It is used in safety-critical control systems, such as emergency shutdown (ESD), fire & gas systems (F&G), and process in industries like oil & gas, power, and chemicals.
Q2: Can the module be used in SIL 3 applications?
A2: Yes, the F3DIO20/8 02 is certified for SIL 3 safety applications according to IEC 61508.
Q3: Does the F3DIO20/8 02 module support redundant configurations?
A3: Yes, it supports redundant communication and can be integrated into redundant architectures for high availability.
Q4: What communication protocol does it use?
A4: It uses safeethernet, an Ethernet-based protocol for safe data communication.
