Specification

Model Number	8C-TDODA1
Output Channels	32 source-type digital outputs
Rated Voltage	24V DC
Max Load Voltage	30V DC
Max Load Current	100mA per channel
Fuse Configuration	4 fuses (1 per 8 channels)
Module Current Draw	105mA
Isolation	1000V AC
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C

Description

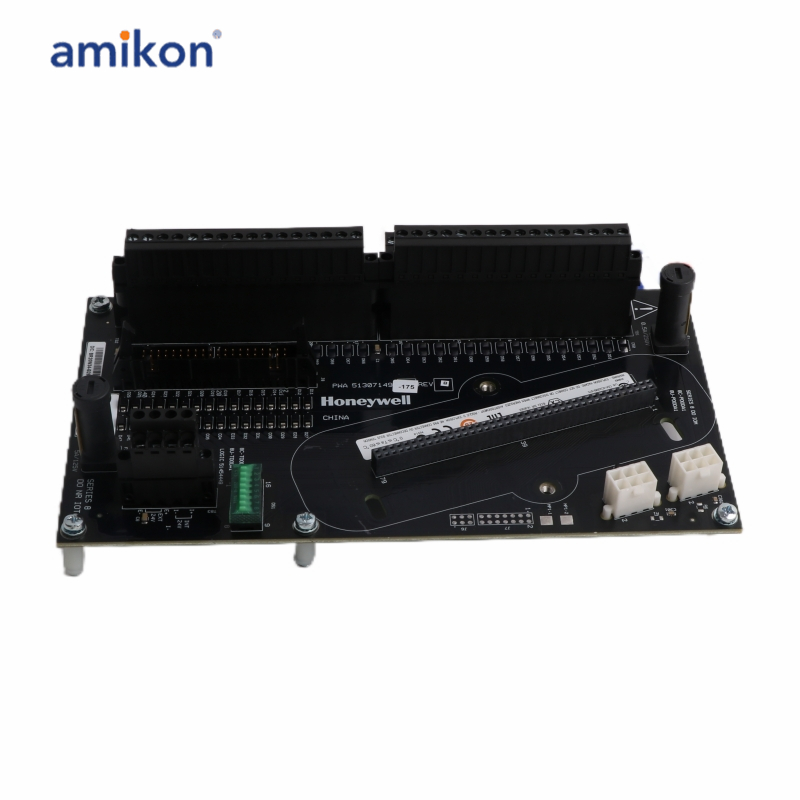

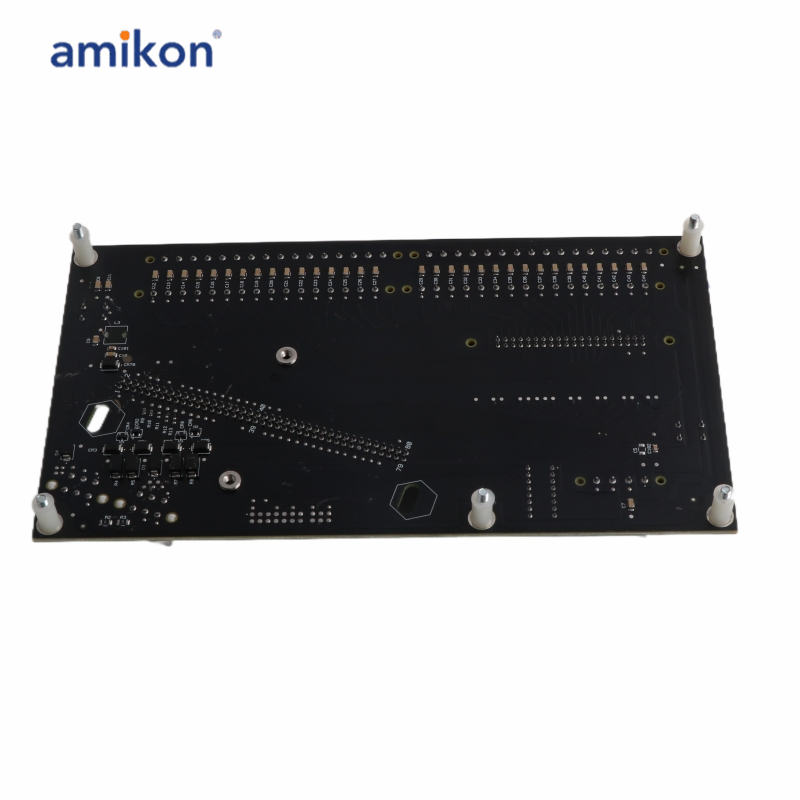

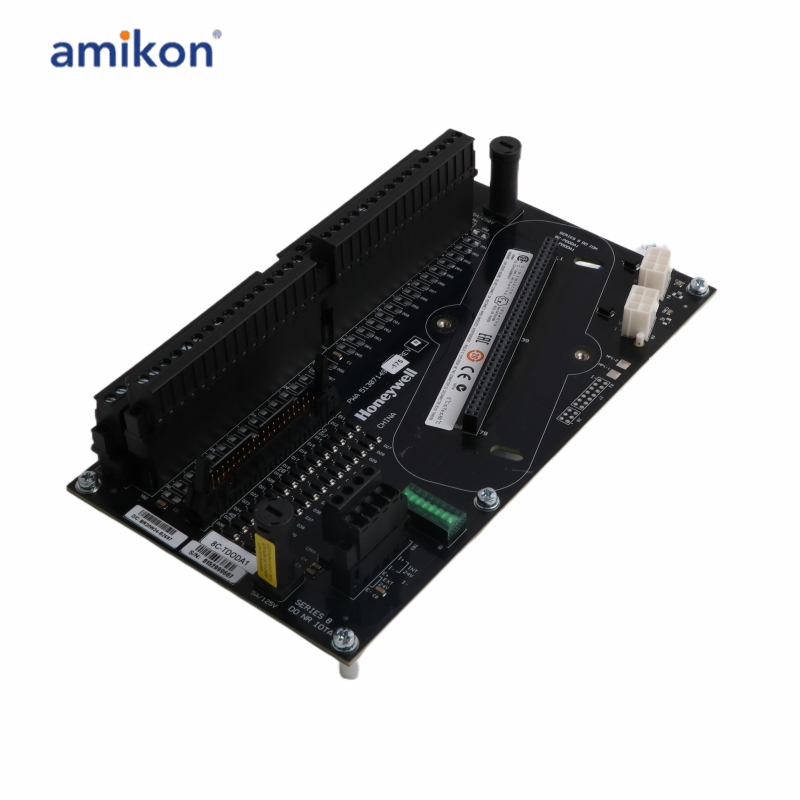

Honeywell 8C-TDODA1 is a 32-channel digital output module designed for Experion LX systems. It provides reliable source-type outputs with configurable fault-safe behavior and advanced control modes

Frequently Asked Questions

Q1: What is the 8C-TDODA1?
A1: The 8C-TDODA1 is a digital output module designed for controlling actuators, indicators, and other field devices in industrial systems.
Q2: How many output channels does it have?
A2: The 8C-TDODA1 module provides 32 source-type digital output channels.
Q3: What is the 8C-TDODA1 rated voltage for the outputs?
A3: The 8C-TDODA1 outputs are rated for 24 V DC.
Q4: What is the maximum load voltage?
A4: Each output channel can handle up to 30 V DC.
Q5: What is the 8C-TDODA1 maximum load current per channel?
A5: Each channel supports a maximum of 100 mA.

Product Applications
Oil and Gas: Applied in the C300 system, it is responsible for the control of high-reliability production processes such as oil pipelines and refining equipment.
Chemical Industry: Controls digital quantity actuators for opening and closing valves, starting and stopping pumps, etc., to achieve and refined management of complex processes.
Mechanical and Electrical Equipment / Mining: Used for the management of mechanical and electrical equipment and the control and system transformation of mining production lines.
Water Treatment: Controls the output signals of pumps, valves, and monitoring systems to ensure the safety of the water treatment process.

Main functional features:
System compatibility: Specifically designed for Honeywell C300 and PlantCruise process control systems.
High reliability: Provides non-redundant digital output module mounting base (IOTA, 24V), with anti-interference capability.
Flexible configuration: Supports production system upgrades and maintenance work.
