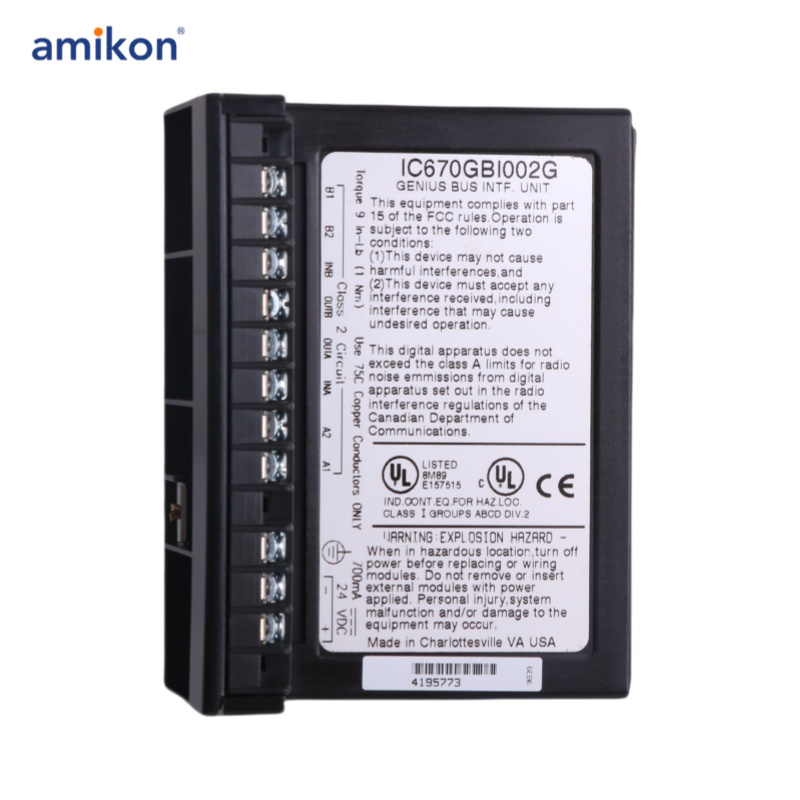

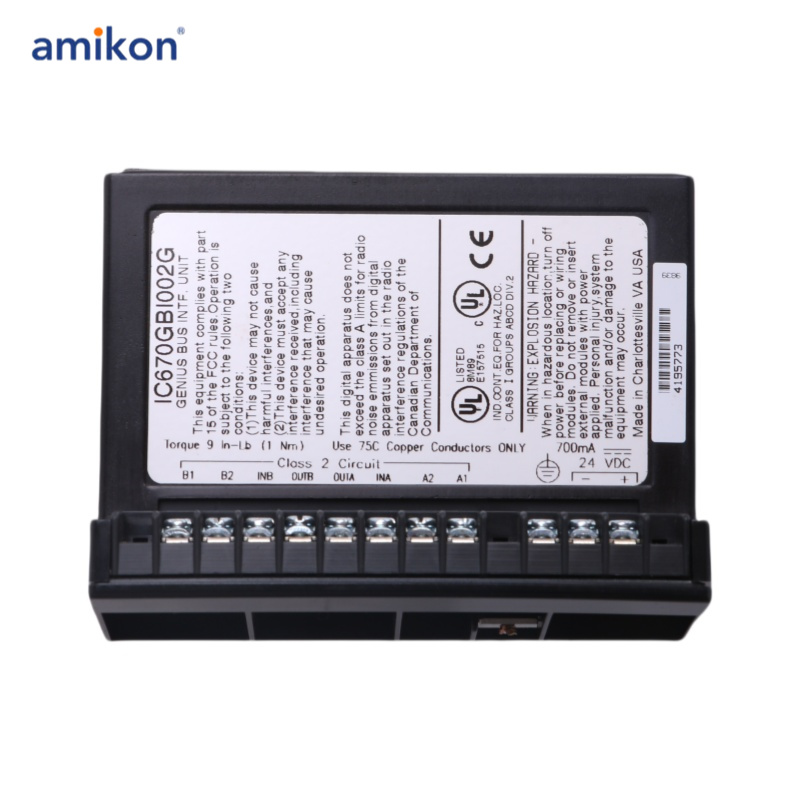

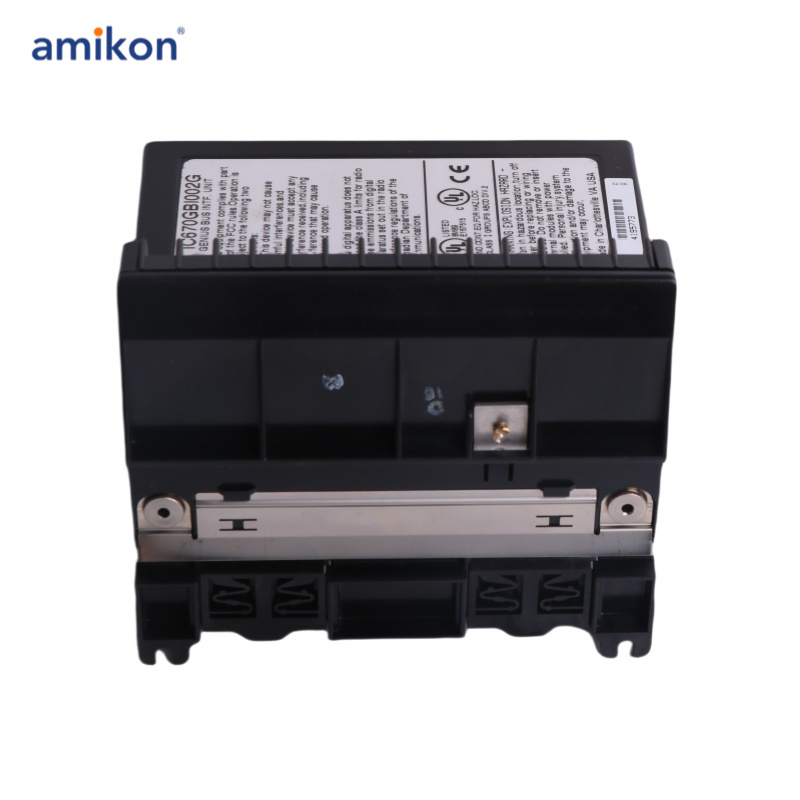

IC670GBI002D GE Bus interface unit

IC670GBI002D
IC670GBI002D
IC670GBI002D

IC670GBI002D GE Bus interface unit

Brand new and original sealed//Same Day Shipment

  • Country of Origin:

    USA
  • Weight:

    0.35KG
  • Dimensions:

    12cmx10cmx8cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

Brand

GE Fanuc

Series

Field Control

Manufacturer

GE Fanuc

Part Number

IC670GBI002D

Series

Field I/O control

Type

Bus interface unit

Part Number

IC670GBI002D

Compatibility

Field control IC670G / IC670GBI

Product Description

Bus Interface Unit (BUI)

Nominal Rated Voltage

115 Volts AC, 125 Volts DC

Supply Voltage range

18-30 VDC

Voltage Range

90 to 135 Volts AC / 105 to 150 Volts DC

Nominal supply voltage

24 VDC

Frequency

47 to 63 Hertz

Power consumption

16.8 Watts

Power at 115 Volts AC

48 Volt-Amps (maximum) at full load

Inrush Current

15-50 Amps peak, 3 mS maximum

Power at 125 Volts AC

24 Watts (maximum) at full load

Inrush Current

20 Amps (peak), 3 milliseconds (maximum)

Current output to modules

1.4 A

Power Supply Output

6.5 Volts DC

Holdup time

10 ms

Holdup Time

20 milliseconds (maximum)

Supported protocols

Genius Bus

Reliability

More than 183,000 hours operation MTBF

Product Lifecycle Status

Discontinued/Obsolete


The IC670GBI002D is a Bus Interface Unit (BUI) from the Field control system series. This BUI supports Genius Bus protocol and supports hosting of up to Eight (8) Field I/O modules. The BUI manages data exchanges between the Field I/O modules to the host computer of the master controller residing in the Genius Bus. Up to 128 Bytes of input data and 128 Bytes of output data can be accommodated by the IC670GBI002D Bus Interface Unit. The IC670GBI002D is installed to an appropriate terminal base. It is designed to be mounted to a DIN rail with the DIN rail component connected to the grounding system. With this, ensure that the DIN rail material is made of good or excellent conductor and not easily affected by oxidation and corrosion. The IC670GBI002 is powered by an external supply voltage range of 18-30 VDC with nominal value of 24 VDC. It has power consumption of 16.8 Watts with Inrush current of 15-50 A (peak) with maximum duration of 3 ms. It has power supply output of 6.5 VDC and maximum current of 1.4 Amperes with holdup time of 10 mS. The output voltage and current is delivered to the hosted modules through the BUI backplane. The IC670GBI002 has reliability 183, 000 hours operation Mean Time Before failure (MTBF). It comes with terminal strip for Power and communication connection and I/O terminals for establishing connection to the next terminal block. Aside from redundant CPU assembly, it may also be used in Hot removal and insertion requirements, provided the appropriate Field I/O module versions are installed.
