Product Specifications

Model Number	T7481
Product Type	Guarded Output Module
Output Channels	16 outputs (2 groups, 8 channels per group)
Output Voltage Range	18～36 VDC
Load Current (0℃～40℃)	2 A per channel
Load Current (60℃)	1.5 A per channel
Minimum Load Current	20 mA (typical 5 mA)
Max On-State Voltage Drop	1.0 V
Surge Current (Incandescent/Capacitive Load)	3.5 A peak
Surge Current (Inductive Load)	7 A, duration 20 ms
Turn-On Delay	0.5 ms
Turn-Off Delay	0.5 ms
Heat Dissipation	30 W (101 BTU/hr)
Minimum Isolation Voltage	2500 V
Operating Temperature	0°C～+60°C
Storage Temperature	-40°C～+85°C

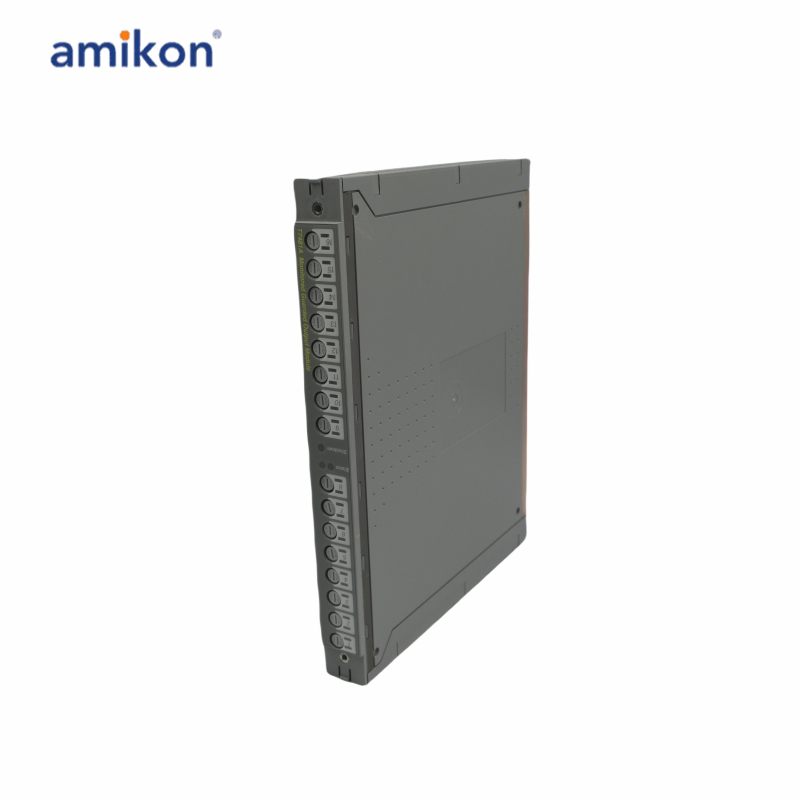

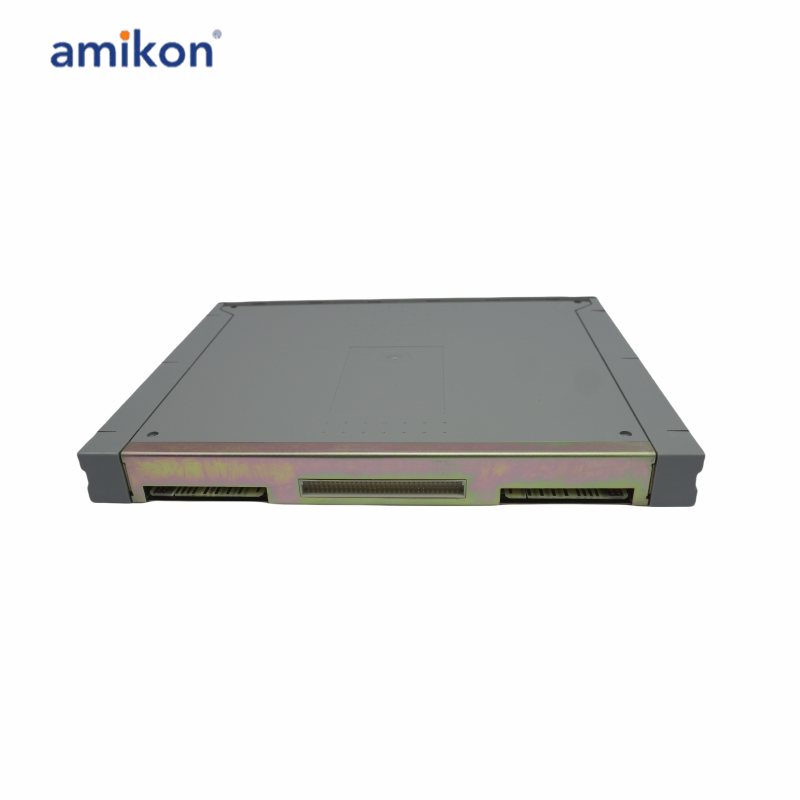

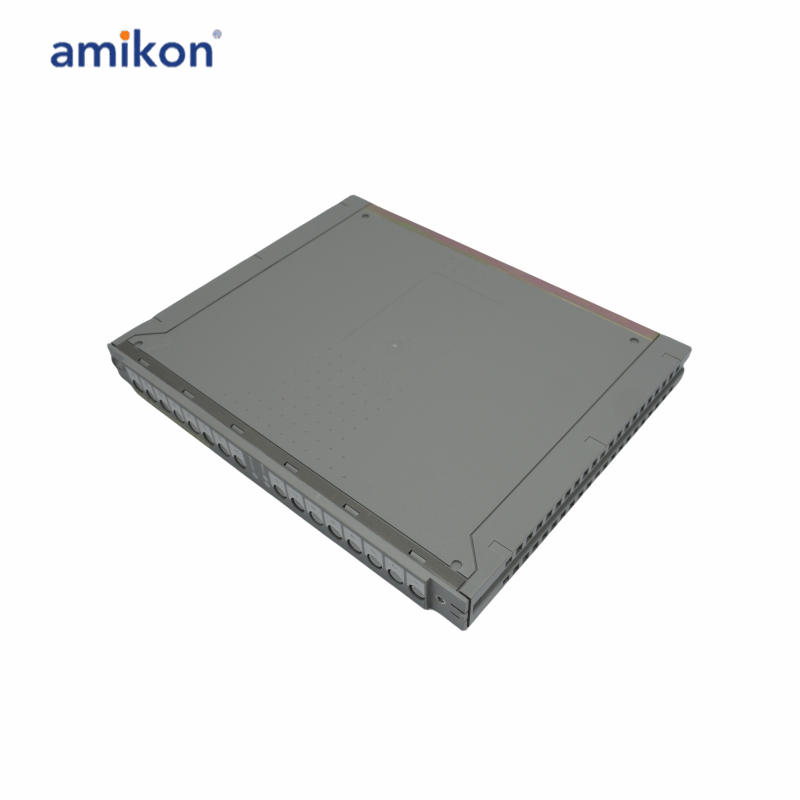

The ICS Triplex T7481 Monitored Guarded Output Module is a high-integrity digital output module used in Trusted™ and fault-tolerant safety systems for critical control and shutdown applications. The module provides 16 monitored output channels arranged in two groups of eight channels and supports output voltages from 18 to 36 VDC. Certified for Safety Risk Class 5 applications, the T7481 is suitable for both single-module and dual-module safety architectures, providing reliable de-energize-to-trip functionality for safety-critical processes.

Frequently asked questions：

Q1: What is the ICS Triplex T7481 Guarded Output Module used for?
A1: It is used to provide reliable digital output control for safety-critical and industrial applications.

Q2: How many output channels does the T7481 module provide?
A2: The T7481 module provides 16 outputs, arranged in 2 groups of 8 channels each.

Q3: What is the output voltage range of the T7481 module?
A3: The T7481 output voltage range is 18 to 36 VDC.

Q4: What is the T7481 operating temperature range?
A4: The T7481 operating temperature range is 0°C to +60°C.

Q5: What overvoltage protection does the T7481 module offer?
A5: It can withstand 70 VDC continuously and 100 VDC for up to 5 seconds.

Product Applications

Oil and Gas
Chemical and Petrochemical Industries
Power Generation and Nuclear Power
Metallurgy and Mining
