Product Specifications

Part Number	TC-205-01
Voltage Rating	300V AC
Current Rating	1–2A
Conductor Size	Typically 26–24 AWG
Insulation Resistance	≥ 100 MΩ·km
Bending Radius	≥ 5 × cable diameter
Operating Temperature Range	-40°C to +85°C

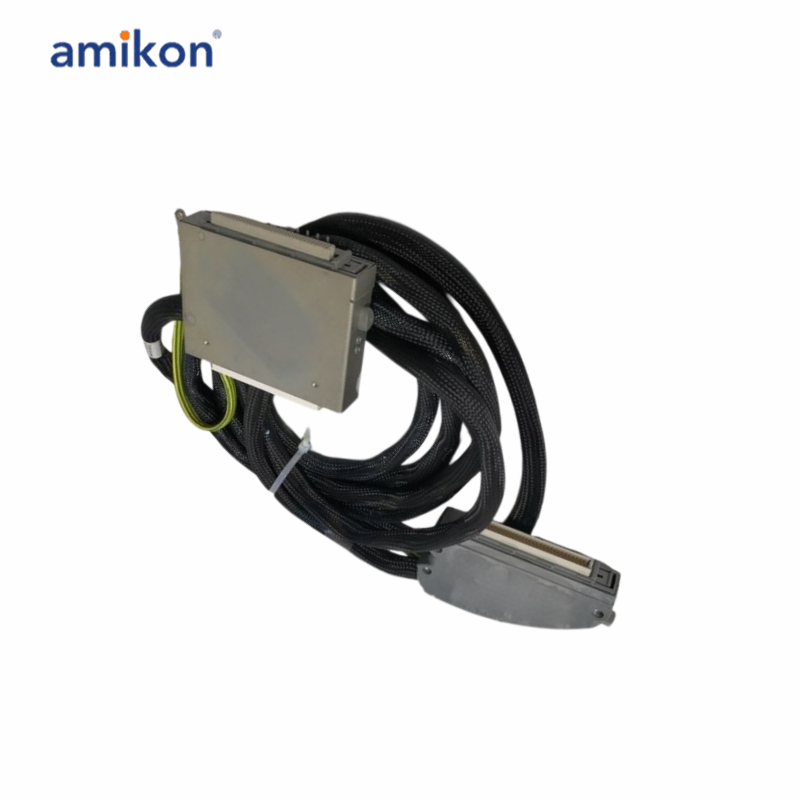

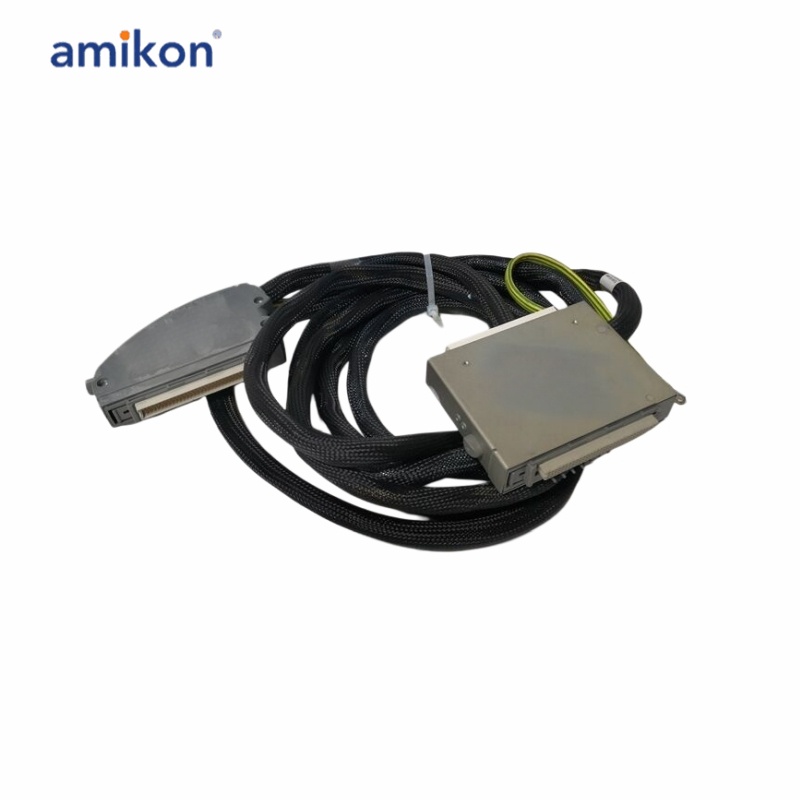

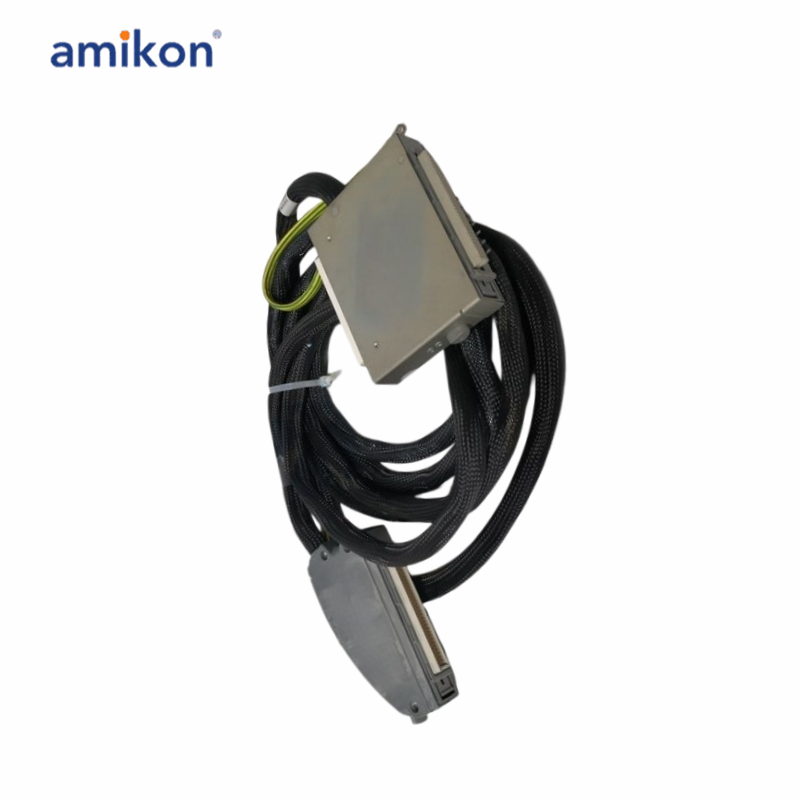

The ICS Triplex TC-205-01 is a Trusted® I/O Companion Slot Cable designed for connecting Trusted analog and digital I/O modules to Field Termination Assemblies (FTAs). This 40-channel cable provides secure, high-density connections, frequently used in TMR (Triple Modular Redundant) processor systems, often featuring 96-way type 'C' connectors
The TC-205-01 is part of the Trusted TMR system, known for high-integrity safety applications. It enables the connection of field terminals to the input modules, with options for standard or specific lengths, typically with flying leads at one end for field termination

Frequently asked questions：

Q1: What is the ICS Triplex TC-205-01?
A1: It is an I/O companion slot cable used in ICS Triplex Trusted systems to connect I/O modules and ensure reliable signal transmission between system components.

Q2: What is the voltage rating of this cable?
A2: The TC-205-01 cable is rated for up to 300 V AC, suitable for industrial signal and control applications.

Q3: What is the TC-205-01 current rating?
A3: It supports a current range of 1 to 2 A, appropriate for signal-level and low-power connections.

Q4: What is the TC-205-01 conductor size?
A4: The conductor size typically ranges from 26 to 24 AWG, providing flexibility and reliable signal transmission.

Q5: What is the insulation resistance?
A5: The insulation resistance is ≥ 100 MΩ·km, ensuring strong electrical insulation and signal integrity.

Product Applications

Metallurgical and Iron Industry
Automobile Manufacturing
Textile and Paper Equipment
Energy and Power Plants
Lifting, Conveying and Port Terminals
Petrochemicals
Water Conservancy and Environmental Engineering
