Product Specifications

Product Model	TC-205-02-12M5
Cable Type	I/O Companion Slot Cable
Channel Configuration	40 Channel Output
Chassis End Terminals	2 × 96-pin Type-C connectors
FTA Field End Terminals	1 × 96-pin Type-R connector
Applicable Signal Type	Digital Output 24V/120Vdc
Nominal Length	12.5 meters (12m5)

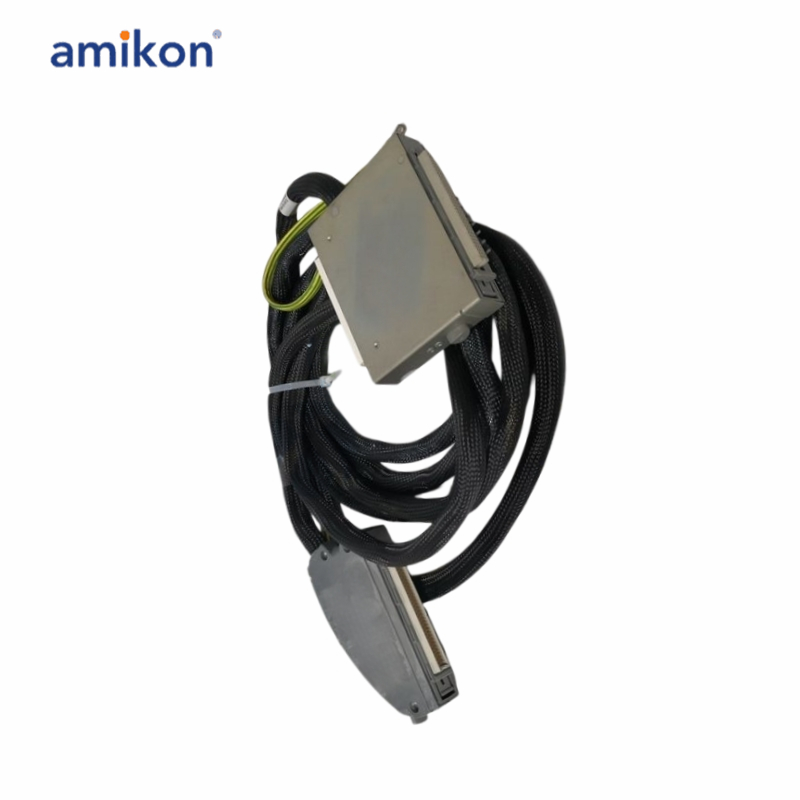

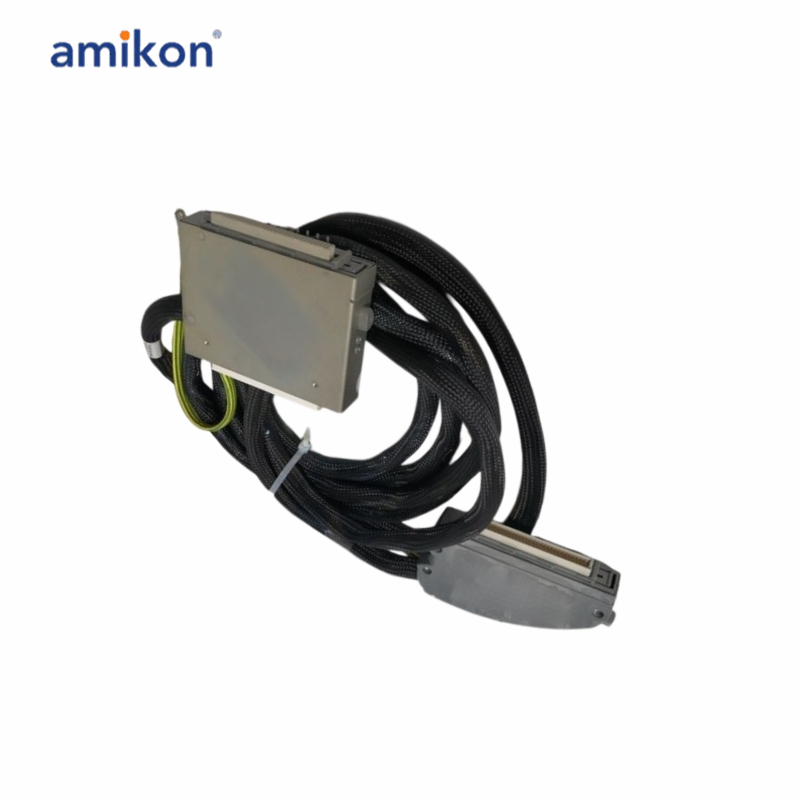

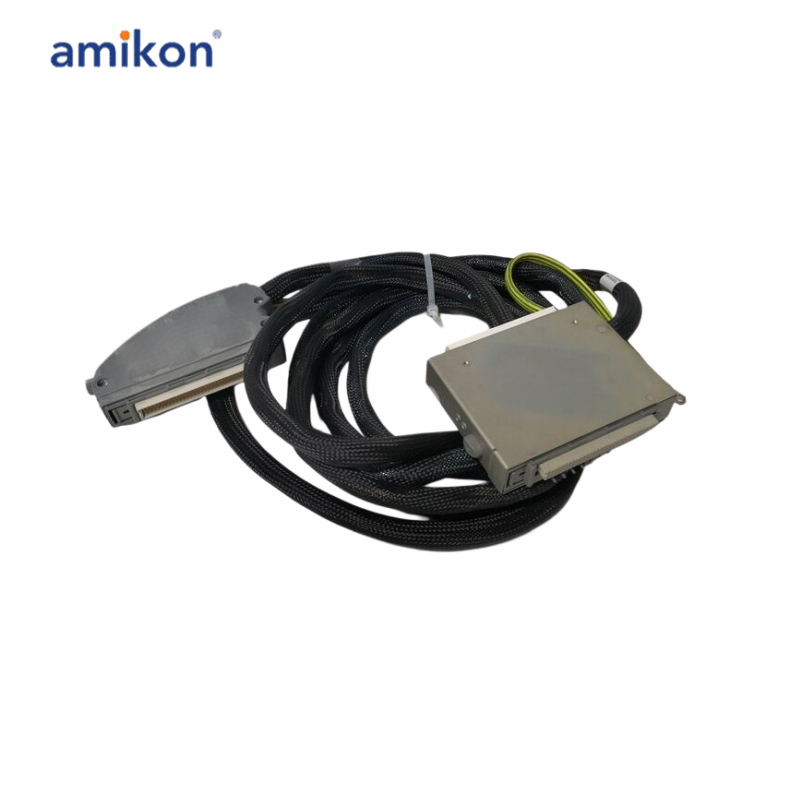

The ICS Triplex TC-205-02-12M5 is a high-reliability internal I/O Companion Slot Cable designed for the ICS Triplex Trusted™ Triple Modular Redundant (TMR) safety control system. It is specifically engineered for 40-channel output signal transmission between Trusted analogue or digital output modules and Field Termination Assemblies (FTAs). The cable provides secure, low-noise, and high-integrity signal connectivity in safety-critical industrial environments such as oil & gas, petrochemical, power generation, and process control systems.The TC-205-02-12M5 utilizes a rugged multi-core shielded construction with dual 96-way Type-C chassis connectors and a 96-way Type-R FTA connector to ensure stable and accurate signal transfer. Additional dedicated conductors provide reliable field power distribution and return connections. Its LSZH (Low Smoke Zero Halogen) insulation enhances fire safety while maintaining excellent resistance to EMI, RFI, vibration, and harsh industrial operating conditions. The 12.5-meter cable length supports flexible cabinet layouts and long-distance internal routing while maintaining dependable signal integrity.

Frequently asked questions：

Q1: What is the ICS Triplex TC-205-02-12M5 used for?
A1: The ICS Triplex TC-205-02-12M5 is an I/O Companion Slot cable used for connecting Trusted output modules to Field Termination Assemblies (FTA) in ICS Triplex Trusted safety systems. It supports stable and reliable output signal transmission in industrial applications.

Q2: What is the channel configuration of the TC-205-02-12M5?
A2: The TC-205-02-12M5 cable supports a 40-channel output configuration for high-density industrial control and safety systems.

Q3: What signal types are supported by the TC-205-02-12M5 cable?
A3: The TC-205-02-12M5 supports digital output signals rated at 24VDC and 120VDC.

Q4: What is the TC-205-02-12M5 nominal cable length of this model?
A4: The TC-205-02-12M5 nominal cable length is 12.5 meters (12m5), providing flexible installation for larger control cabinets and distributed systems.

Product Applications

Oil and Gas Industry
Chemical and Petrochemical Industry
Electricity and Energy
Metallurgy and Building Materials Heavy Industry

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
