Product Specifications

Product Model	TC-215-02-8M5
Length	8.5 meters
Cable Function	40-Channel Output to FTA
Chassis End Connector	Dual 96-way Type-C connectors in double-width hood
Multi-core Cable Quantity	3 Multi-core Cables
Field Power Return Connector	5-way BLZF 3.5 connector
Flame Retardancy	IEC 60332-3 Category A

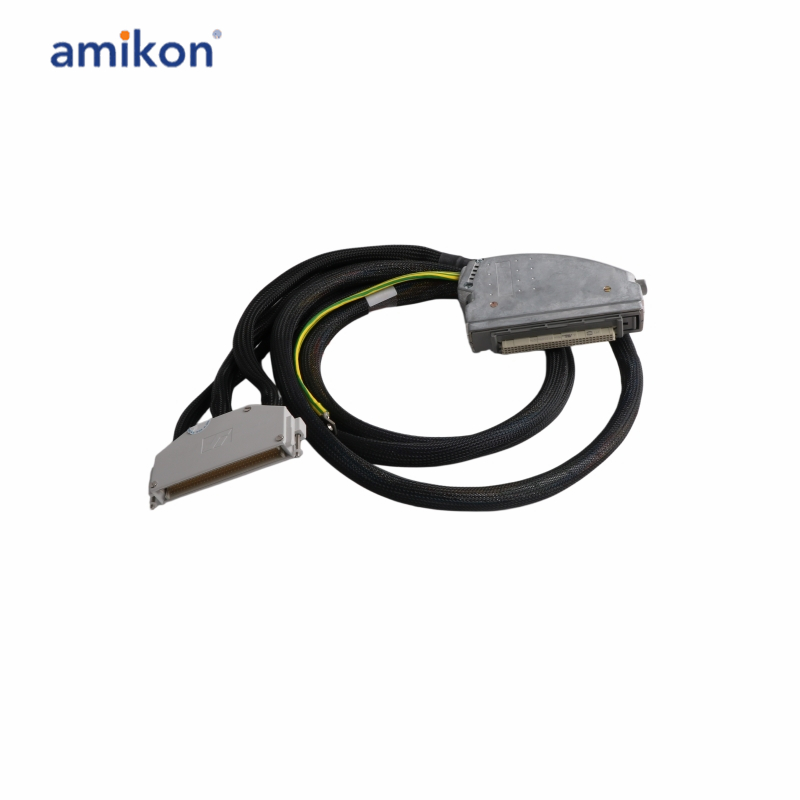

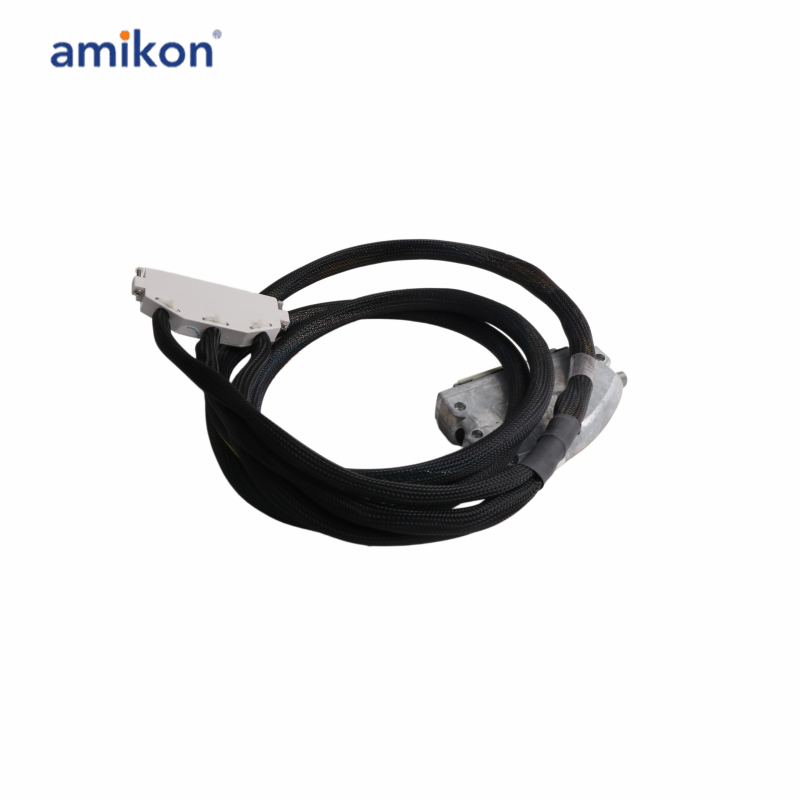

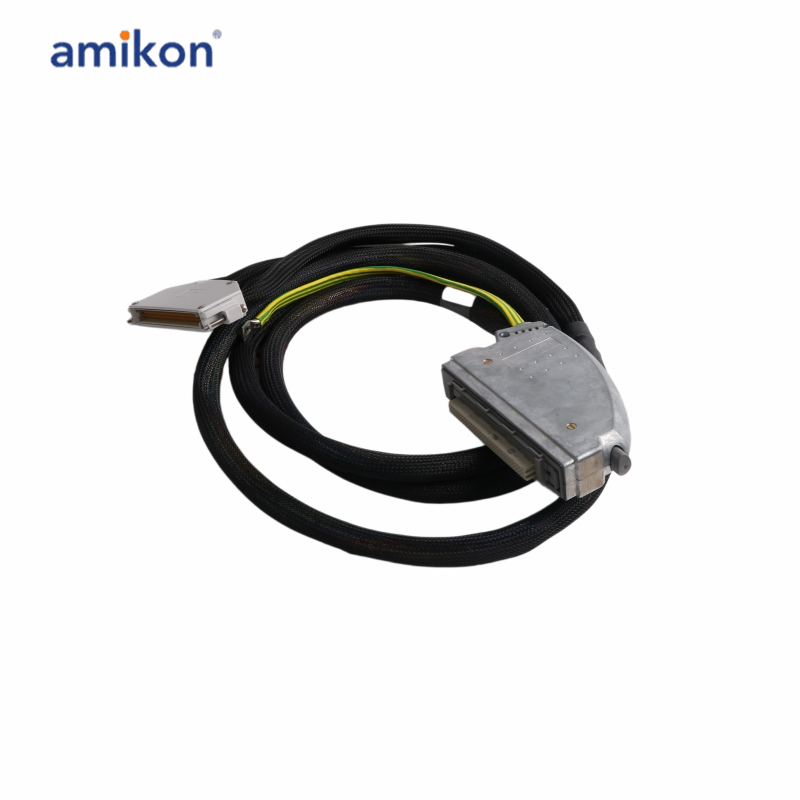

The TC-215-02-8M5 features an internal companion slot configuration optimized for adjacent cabinet installations using double-width chassis sockets.The design incorporates three dedicated multi-core cable groups for output signals, field power supply, and return power connections, significantly reducing installation complexity while improving system reliability and maintenance efficiency.At the chassis end, the cable assembly utilizes dual 96-way Type-C connectors housed within a double-width hood, while the FTA side employs a 96-way Type-R connector for secure interface connection. Additional integrated connectors include a 5-way BLZF 3.5 connector for field power return termination and a 6-way AMP plug for power distribution from T8290 or T8297 Output Power Distribution Units.

Frequently asked questions：

Q1: What is the ICS Triplex TC-215-02-8M5 used for?
A1: The ICS Triplex TC-215-02-8M5 is an I/O Companion Slot Cable used for connecting Trusted output modules to Field Termination Assemblies (FTA) in ICS Triplex Trusted safety systems. It supports reliable signal transmission for industrial and safety applications.

Q2: What is the cable length of the TC-215-02-8M5?
A2: The TC-215-02-8M5 cable length is 8.5 meters, allowing flexible installation in industrial control cabinets and distributed I/O systems.

Q3: What is the TC-215-02-8M5 main function of this cable?
A3: The TC-215-02-8M5 provides 40-channel output signal connections between Trusted I/O modules and FTAs.

Q4: How many multi-core cables are included in the TC-215-02-8M5?
A4: The TC-215-02-8M5 cable assembly includes 3 multi-core cables for organized and reliable signal transmission.

Q5: Which systems are compatible with the TC-215-02-8M5 cable?
A5: The TC-215-02-8M5 cable is compatible with ICS Triplex Trusted TMR (Triple Modular Redundant) safety and control systems.

Product Applications

Oil and Gas
Power and Nuclear Powe
Petrochemicals
Offshore and Harsh Industries

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
