Product Specifications

Part Number	TC-505-01-6M0
Series	I/O Companion Slot Cable
Cable Length	6.0 meters (19.7 ft)
Channel Capacity	40 channels
Maximum Working Voltage	60 V
Maximum Current	2 A per channel
Module Compatibility	Digital 24 V
Operating Temperature Range	-40°C to +85°C

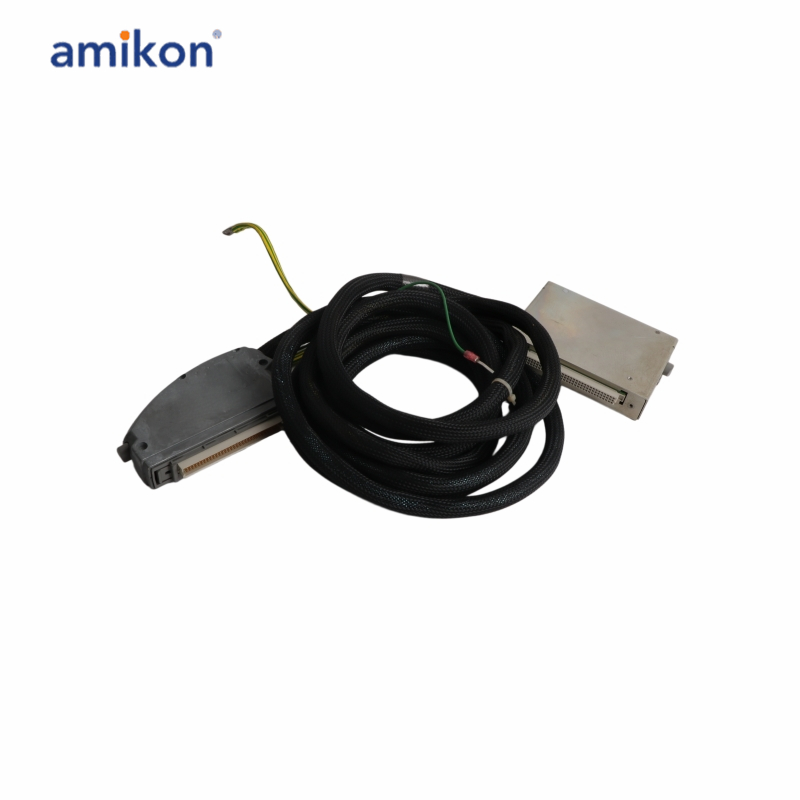

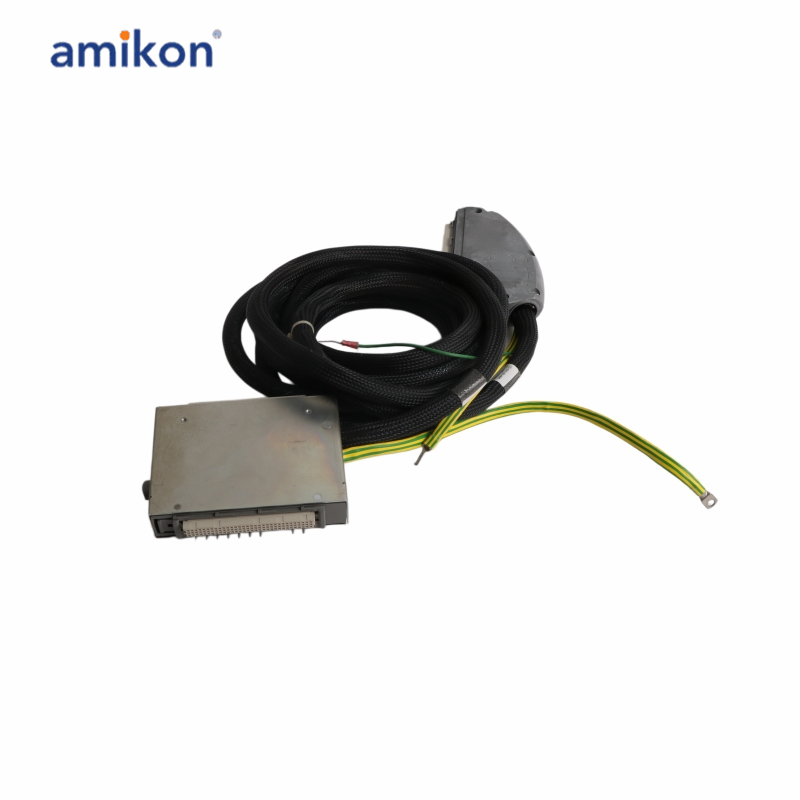

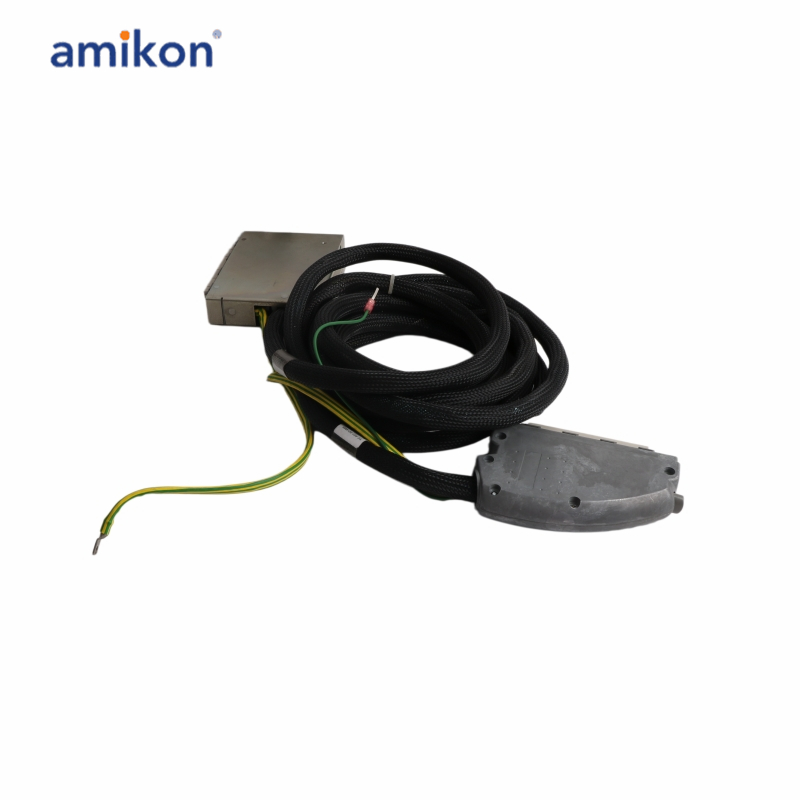

The TC-505-01-6M0 is an I/O Companion Slot Cable manufactured by ICS Triplex. It is primarily used within the Trusted TMR Processor System, a high-integrity industrial and control platform. It is designed for connectivity in specialized PLC system scenarios.
This type of Trusted I/O SmartSlot Cable is designed for use with digital 24 V/120 Vdc oranalogue output modules and is suitable for connecting output signals from the module toan internal FTA.Three multi-core cables are used for this application. The chassis end of the multi-core cableis fitted with a 96-way type ‘C’ connector housed in a single-width hood (TC-500). The nonchassis end of multi-core 1 is fitted with a 96-way type ‘R’ connector housed in asingle-width hood enabling connection to an FTA. The non-chassis end of multi-core 2 isfitted with a 5-way Weidmuller BLZF 3.5 series connector enabling the cable to beterminated at a T8290 Output Power Distribution Unit.

Frequently asked questions：

Q1: What is the ICS Triplex TC-505-01-6M0?
A1: It is an I/O companion slot cable designed for ICS Triplex Trusted systems, used to connect I/O modules and ensure reliable signal transmission between system components.

Q2: What is the TC-505-01-6M0 cable length?
A2: The TC-505-01-6M0 cable length is 6.0 meters (19.7 feet), providing flexibility for installation in control cabinets and industrial setups.

Q3: What is the TC-505-01-6M0 channel capacity?
A3: The TC-505-01-6M0 cable supports up to 40 channels, allowing multiple signal paths within a single cable assembly.

Q4: What is the TC-505-01-6M0 maximum working voltage?
A4: The TC-505-01-6M0 maximum working voltage is 60 V, suitable for low-voltage control and signal applications.

Q5: What is the TC-505-01-6M0 maximum current per channel?
A5: Each channel supports up to 2 A of current, ensuring reliable operation for connected devices.
