Product Specifications

Product Model	TC-505-02-8M5
Manufacturer	ICS Triplex
Capacity	40 Channels
Signal Direction	Output
Cable Length	8.5 meters
Single-channel Max Current	2 A
Rated Operating Voltage	24 VDC
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C

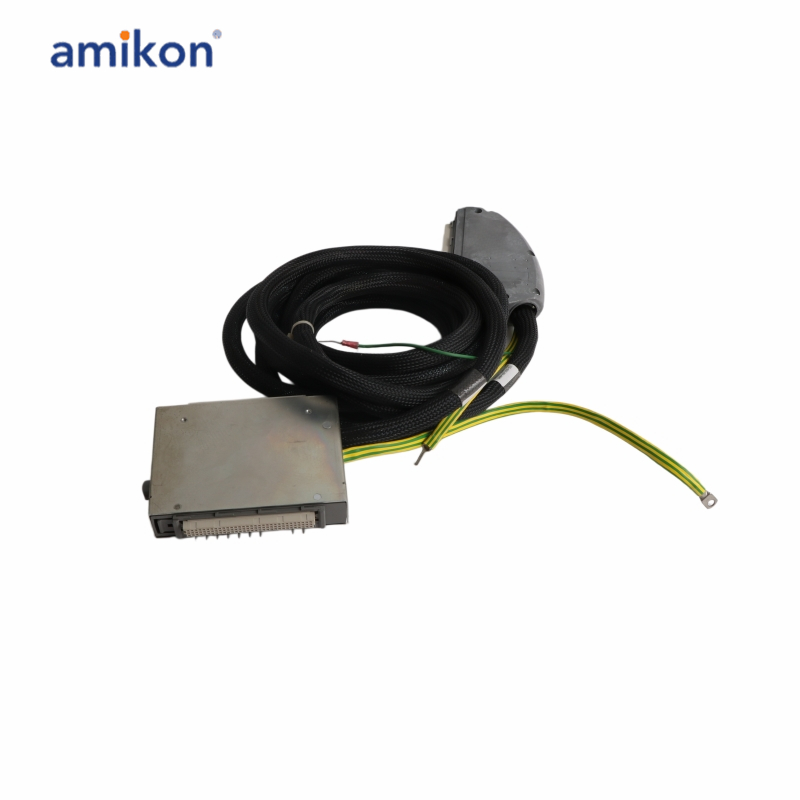

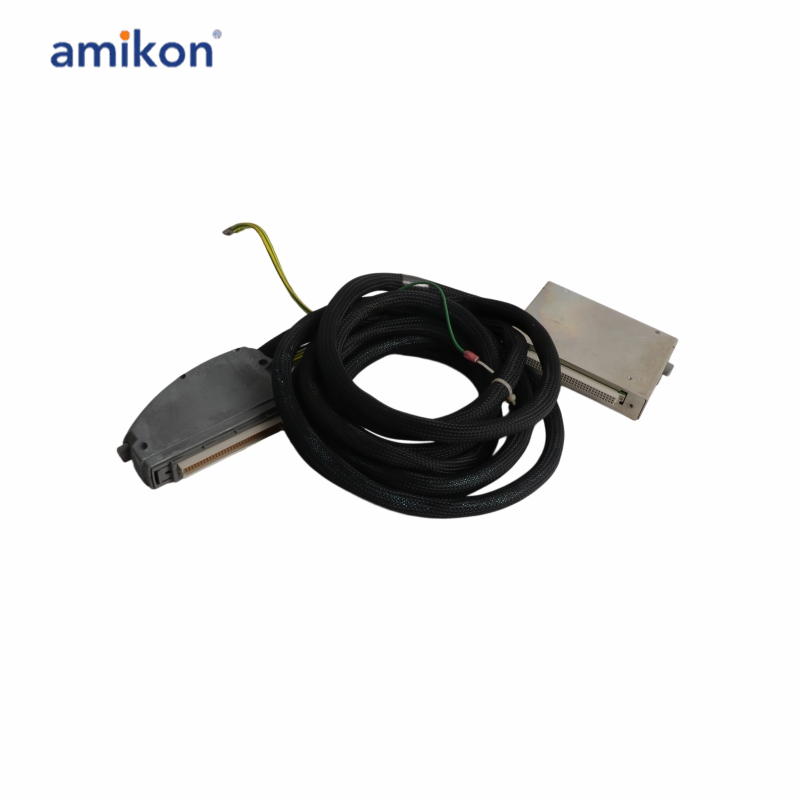

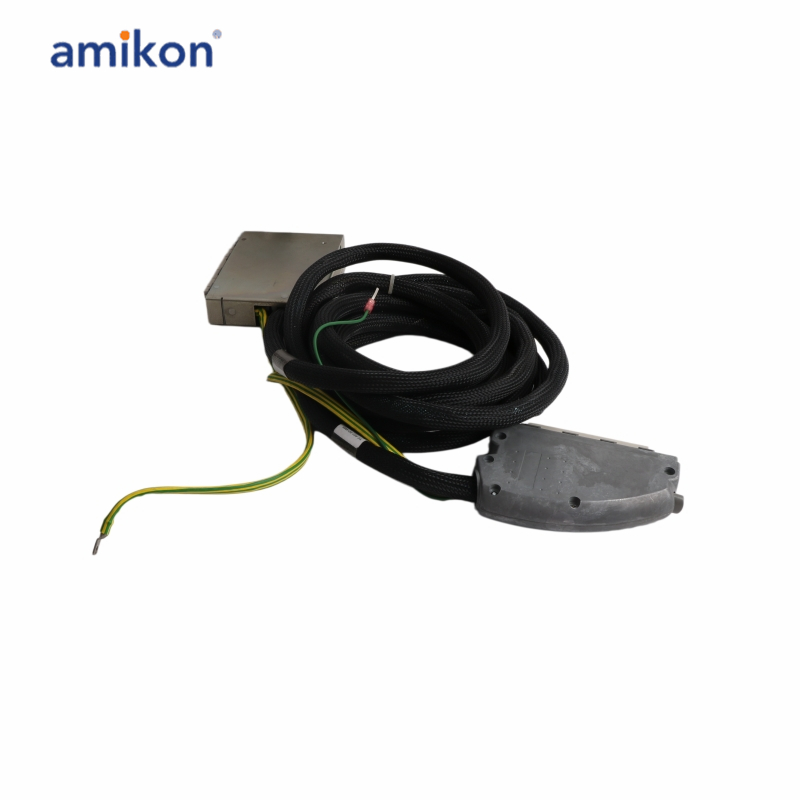

This TC-505-02-8M5 I/O SmartSlot Cable uses three multi-core cables for this application. The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in a single-width hood (TC-500). The non-chassis end of multi-core 1 is fitted with a 96-way type ‘R’ connector housed in a single-width hood enabling connection to an FTA. The non-chassis end of multi-core 2 is fitted with a 5-way Weidmuller BLZF 3.5 series connector enabling the cable to be terminated at a T8290 Output Power Distribution Unit.

Frequently asked questions：

Q1: What is the ICS Triplex TC-505-02-8M5 used for?
A1: It is used for I/O signal connection and communication in ICS Triplex industrial control and safety systems.

Q2: What is the channel capacity of the TC-505-02-8M5 module?
A2: The TC-505-02-8M5 module supports 40 channels.

Q3: What is the cable length of the TC-505-02-8M5?
A3: The TC-505-02-8M5 cable length is 8.5 meters.

Q4: What is the TC-505-02-8M5 maximum current per channel?
A4: The TC-505-02-8M5 single-channel maximum current is 2 A.

Q5: What is the rated operating voltage of the TC-505-02-8M5 module?
A5: The TC-505-02-8M5 rated operating voltage is 24 VDC

Product Applications

Oil & Gas & Petrochemical
Power & Energy
Chemicals & Pharmaceuticals
