brand new IFMA0035 Red Lion Frequency to Analog Converter,IFMA0035 Red Lion Frequency to Analog Converter suppliers,IFMA0035 Red Lion Frequency to Analog Converter manufacturers,factories

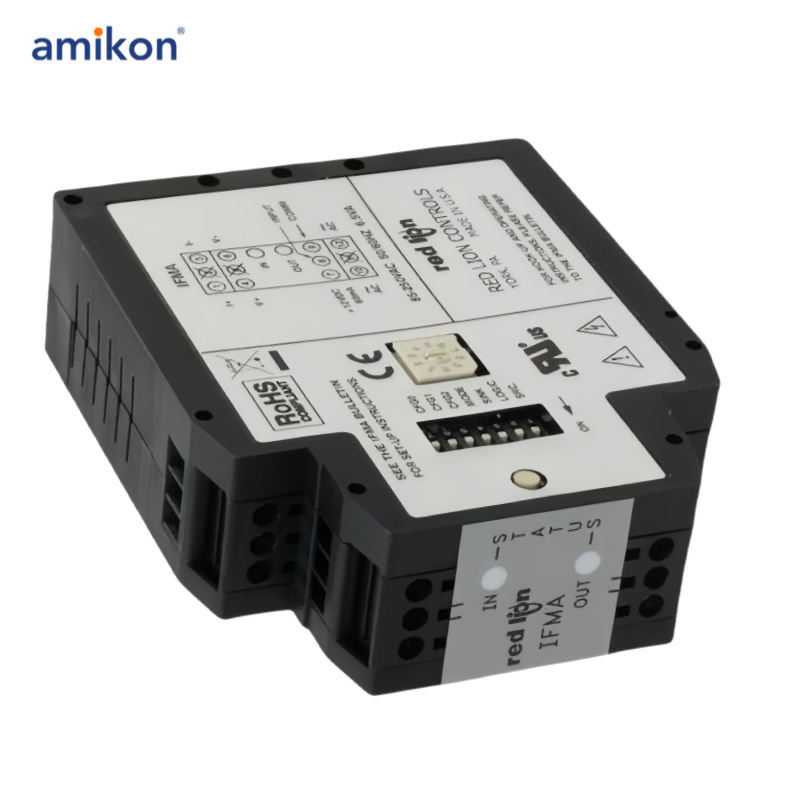

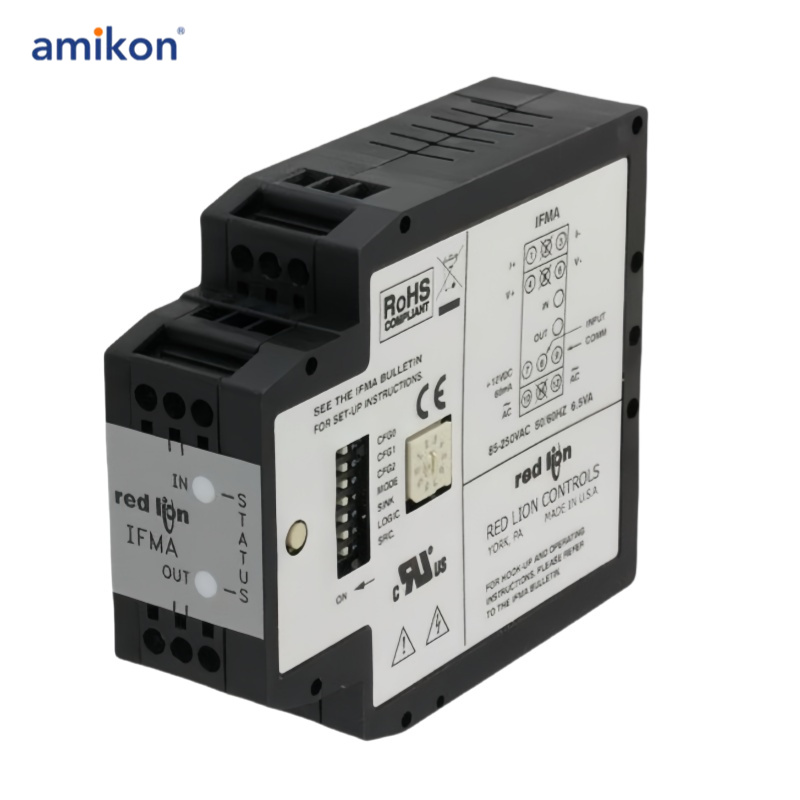

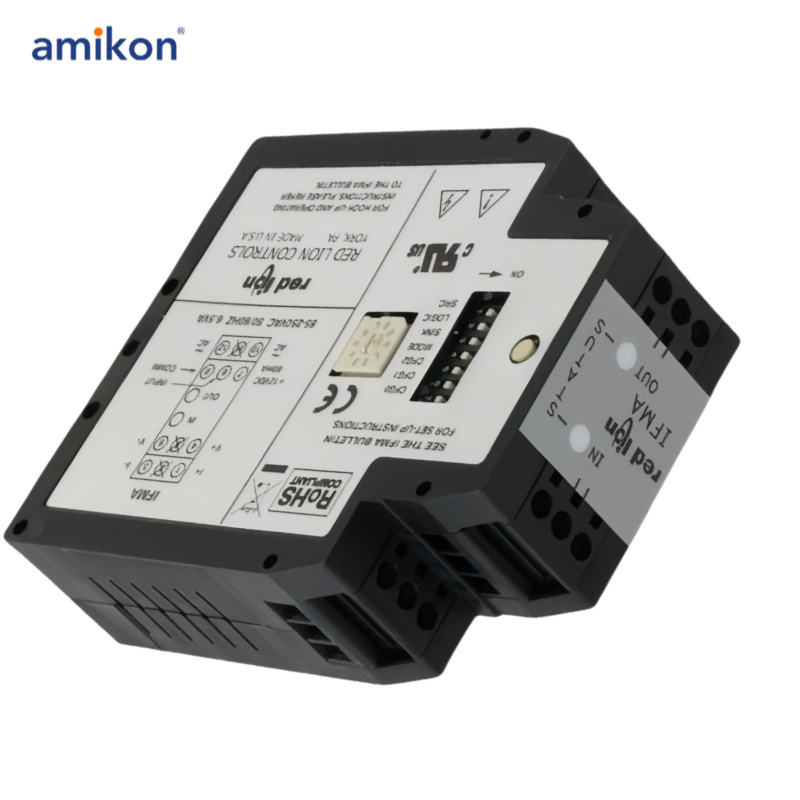

This IFMA0035 model IF MA accepts a frequency input and outputs an analog voltage or current proportional to the input frequency with 0.1% accuracy. The full-scale input frequency can be set to any value from 1 Hz to 25 KHz, either using a frequency source or digitally via the on-board rotary switches and pushbuttons.
The IFMA uses seven position DIP switches, a rotary switch, a pushbutton, and two indicator LEDs to accomplish input circuit configuration, operating parameter setting, and input/output indication. The input circuitry can select signals from a variety of sources based on the DIP switches. Indicator LEDs are used to display the input and output status of the IFMA during normal operation. These LEDs are also used during parameter setting to provide the user with visual feedback of existing parameter settings.
The IFMA0035 IFMA operates in one of four output modes. Programmable minimum and maximum response times provide optimum response at any input frequency.
The unit is equipped with universal mounting feet for mounting on standard DIN style mounting rails, including top hat rails (according to EN 50022-35x7.5 and 35x15) and G-rails (according to EN 50035-G32).

SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in themanual or on equipment must be observed to ensure personal safety and toprevent damage to either the instrument or equipment connected to it. Ifequipment is used in a manner not specified by the manufacturer, the protectionprovided by the equipment may be impaired.

SPECIFICATIONS

Specification	Details
POWER
- AC Operation	85 to 250 VAC, 48 to 62 Hz; 6.5 VA
- DC Operation	9 to 32 VDC; 2.5 W
- Power Up Current	Ip = 600 mA for 50 msec. max.
SENSOR POWER (AC version only)	+12 VDC ±25% @ 60 mA max.
OPERATING FREQUENCY RANGE	From 0 Hz to 25 KHz; user selectable.
SIGNAL INPUT	DIP switch selectable to accept signals from various sources (e.g., switch contacts, outputs from CMOS or TTL circuits, magnetic pickups, and all standard RLC sensors)
- Current Sourcing	Internal 1 KΩ pull-down resistor for sensors with current sourcing output (Max. sensor output current = 24 mA @ 24 V output.)
- Current Sinking	Internal 3.9 KΩ pull-up resistor for sensors with current sinking output (Max. sensor current = 3 mA.)
