Product Specifications

Model	EX-416
Output Voltage	0~5 V, output impedance: 100 Ω
Output Current	4~20 mA, applicable load resistance: 0~350 Ω
Resolution	0.04% F.S. (under LOW response frequency mode)
Linearity	±1% F.S.
Response Frequency (HIGH)	13 kHz (-3 dB)
Response Frequency (LOW)	1.3 kHz (-3 dB)
Power Supply Voltage	12~24 VDC ±10%
Max Current Consumption	240 mA
Enclosure Protection Rating	IP67
Ambient Operating Temperature	-10~+60 °C (no icing)
Relative Humidity	35~85 % RH, non-condensing

The KEYENCE EX-416 is a high-precision displacement sensor head designed for non-contact measurement applications in industrial , quality inspection, and positioning systems. When paired with the EX-205 amplifier unit, the sensor provides accurate distance measurement within a 0 to 5 mm measuring range, making it ideal for detecting small positional changes and dimensional variations in manufacturing processes.

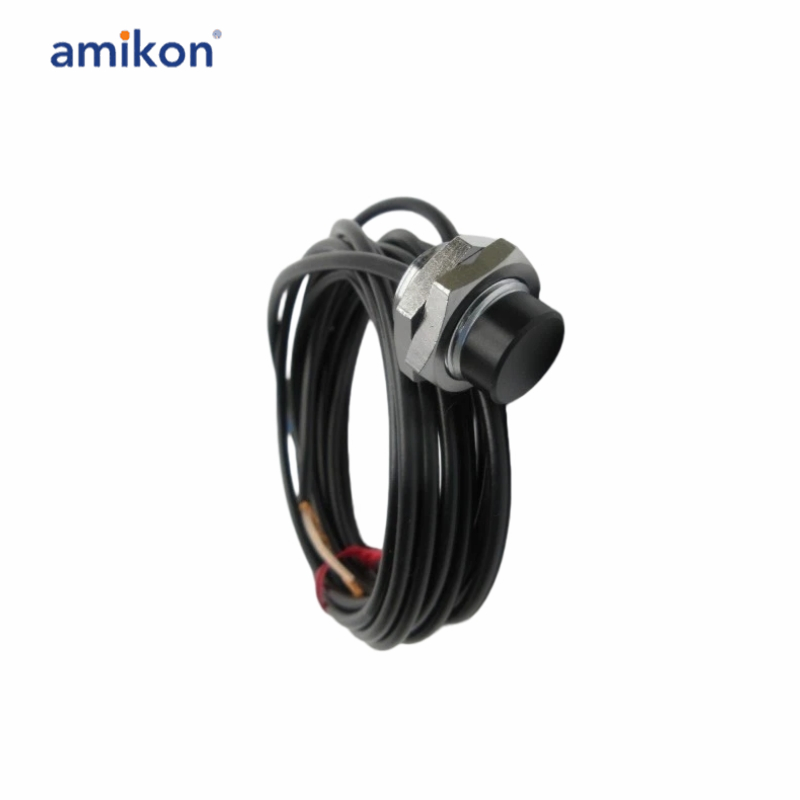

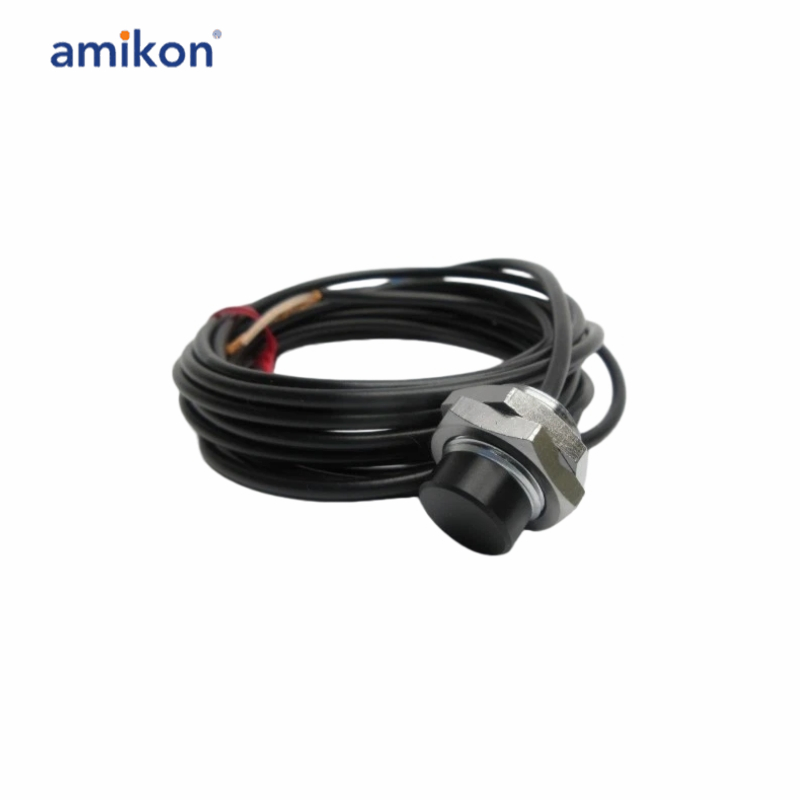

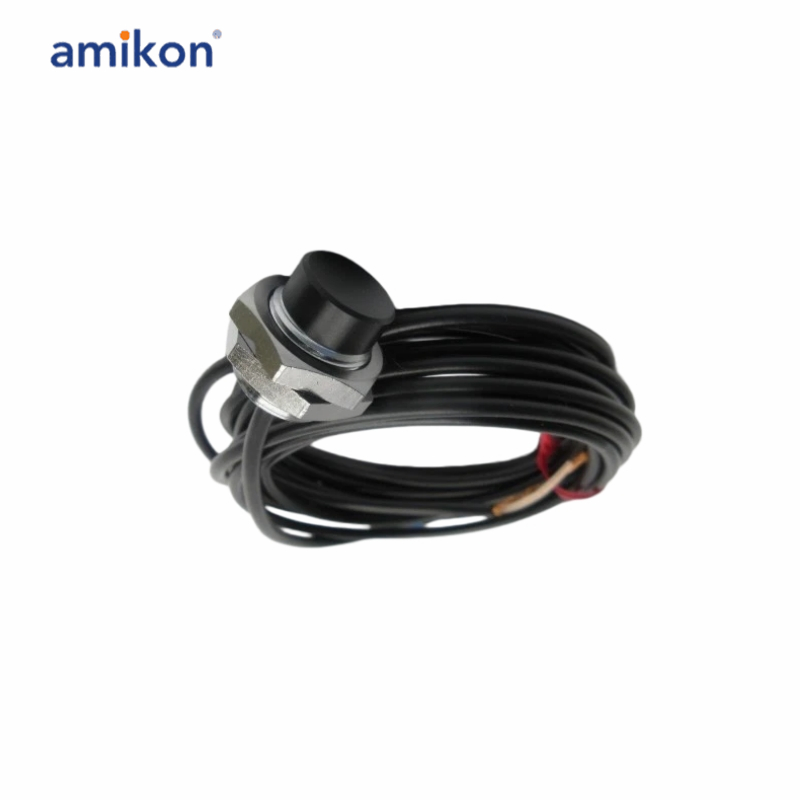

The EX-416 features a compact M16 threaded cylindrical housing (Ø14.5 mm) that allows easy installation in confined spaces and production equipment. It offers both 0–5 V voltage output and 4–20 mA current output, enabling seamless integration with PLCs, industrial controllers, and monitoring systems. With a high response frequency of up to 13 kHz, the sensor can accurately capture rapid movements and high-speed production events.

Frequently asked questions：

Q1: What is the KEYENCE EX-416 Proximity Sensor used for?
A1: The KEYENCE EX-416 is a proximity sensor designed for non-contact detection of metallic objects in industrial , positioning, counting, and presence-detection applications.

Q2: What is the required power supply voltage for the EX-416?
A2: The EX-416 sensor operates on a power supply voltage of 12 to 24 VDC ±10%.

Q3: What is the maximum current consumption of the EX-416 sensor?
A3: The EX-416 maximum current consumption is 240 mA.

Q4: What is the EX-416 ambient operating temperature range?
A4: The EX-416 operating temperature range is -10°C to +60°C (14°F to 140°F), with no icing permitted.

Product Applications

Automotive and Mechanical Manufacturing
Metalworking
Semiconductor and Electronics Manufacturing
