brand new MVI94-MCM PROSOFT Modbus communication module,MVI94-MCM PROSOFT Modbus communication module suppliers,MVI94-MCM PROSOFT Modbus communication module manufacturers,factories

Technical specifications for MVI94-MCM

Part Number/Catalog No.	MV194-MCM
External Power Supply	12 to 24 VDC; 340 to 170 mA
Manufacturer	Prosoft Technology
Compatible Series	1794 Flex I/O system
Module Type	Modbus communication module
Slot Width	Single slot
Module location	Any slot
Supported function codes	1, 2, 3, 4, 5, 6, 15 and 16
Embedded Ports:	One (1) Configuration Port; One (1) Application port
LED indicators:	Backplane transfer status Application status Serial activity and error LED status
Backplane Current:	20 mA @ 5 V
Operation:	Dictated by user program
Command capacity:	100 commands per port
Enron version:	Supported
Memory usage:	User definable
Product Type	Modbus Master/Slave Network Interface Module
Rockwell Compatible Series	Flex IO
Slot	1
Registers	5000 max.
Commands per Port	100 max.
Shock	30g Operational
Backplane Current Load	20 mA @ 5V

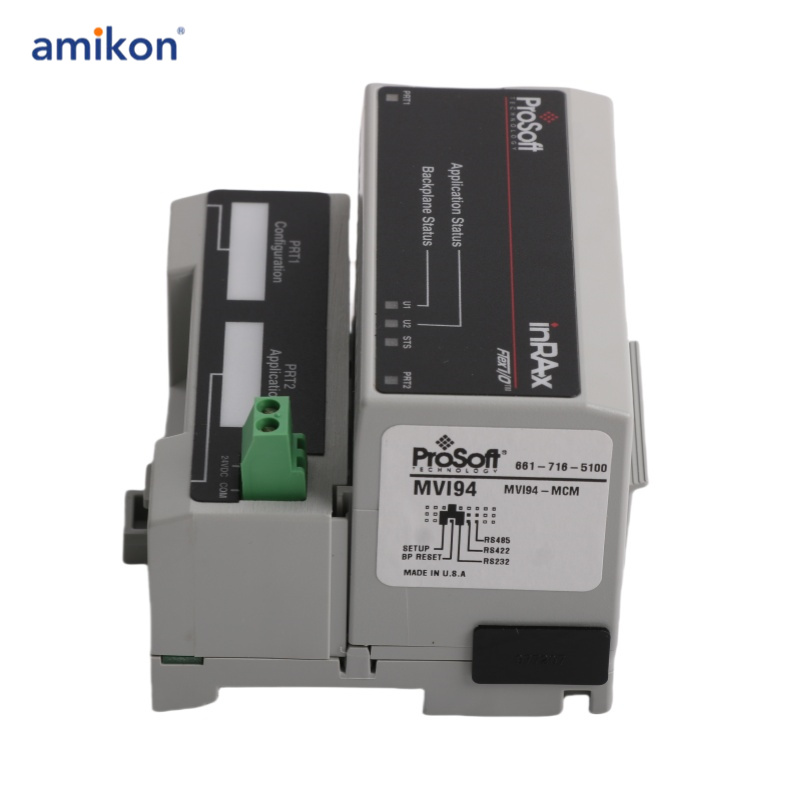

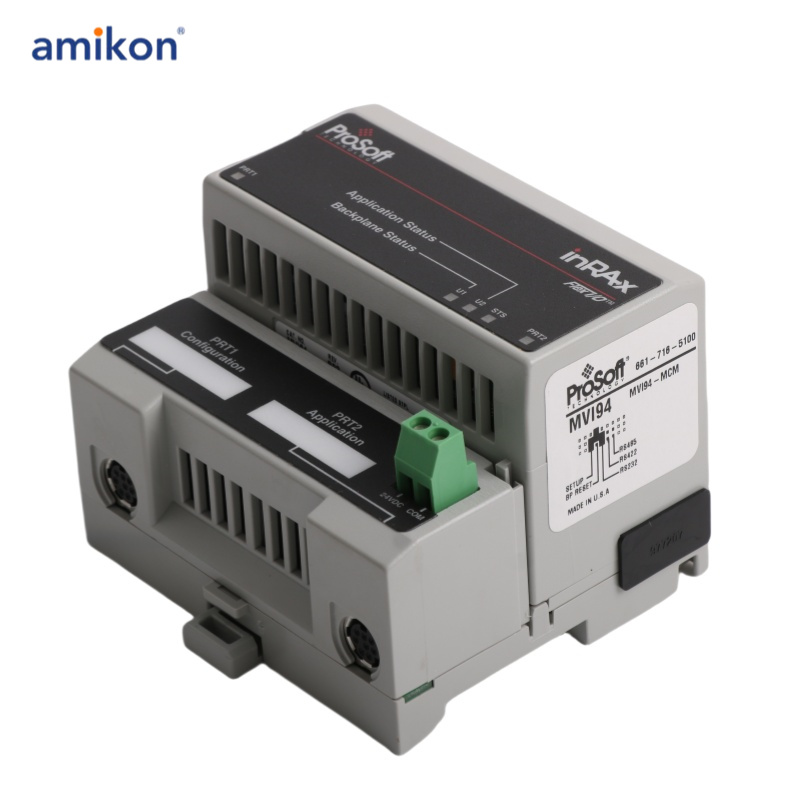

The MVI94-MCM is a Modbus Master or Slave Network Interface Module designed for seamless integration of Flex processors with Modbus protocol-compatible devices. This module, part of the Flex I/O series, features a single-slot design that is compatible with 1794 backplanes, allowing it to be installed in any slot of the backplane. It has a backplane current load of 20 mA at 5 Volts and requires an external power supply rated at 12 to 24 Volts DC.

The MVI94-MCM operates within a temperature range of 0 to 55 degrees Celsius and can be stored between -40 to 85 degrees Celsius. It is built with a shock absorption capability of 30 grams during operation and 50 grams in non-operational conditions. The module supports a relative humidity range of 5 to 95% (non-condensing).

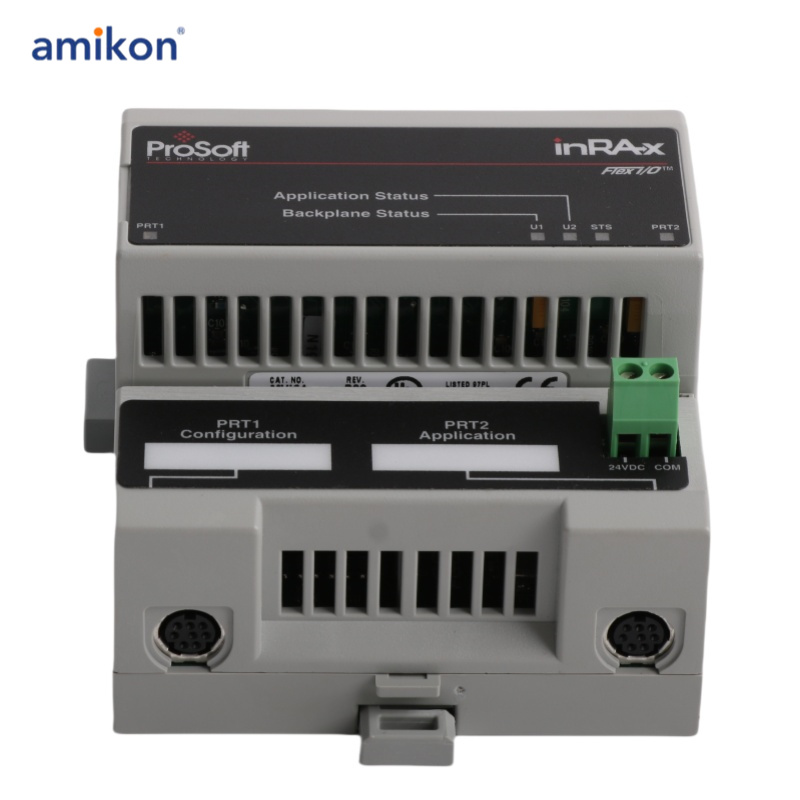

Equipped with LED indicators, the module provides visual feedback on its status and backplane data transfer activities. A communication program is needed to send and receive data between the module and a computer through the serial port, with HyperTerminal being the recommended software.

The module supports the storage and transfer of over 5000 registers to and from the processor’s data files. Additionally, it features user-definable memory and an application port that can emulate either a Modbus master or slave device, ensuring flexibility and adaptability for various communication setups.
