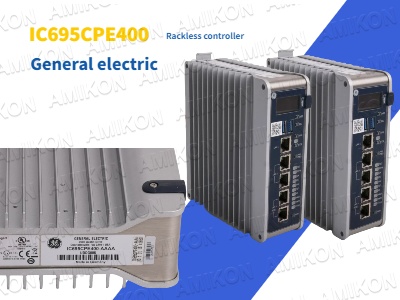

Introduction to the Versatile PACSystem RX3i CPU Emerson Automation's IC695CPE400 represents a significant advancement in industrial control technology, offering exceptional flexibility for demanding automation applications. As part of the PACSystem RX3i series (originally developed by GE Intelligent Platforms), this rackless controller combines robust processing power with extensive connectivity options in a compact DIN rail-mountable package. The controller's quad-core architecture delivers reliable performance for complex automation tasks across various industries including manufacturing, energy, and infrastructure. Its modular design allows for seamless integration into existing systems while providing the scalability needed for future expansion. High-Performance Hardware Architecture At the heart of the IC695CPE400 lies a powerful 1.2 GHz AMD G Series processor capable of handling multiple automation tasks simultaneously. The unit features: Expanded Memory Capacity: 64 MB of onboard memory supports sophisticated control algorithms Flexible I/O Handling: Accommodates up to 32K digital I/O points and 32K analog values Advanced Programming: Supports 768 program blocks (max 128KB each) for complex automation logic Efficient Data Management: Includes bulk memory (%W) for streamlined data exchange between processes The controller operates on a 24VDC power supply, making it suitable for various industrial environments while maintaining energy efficiency. Comprehensive Connectivity Solutions The IC695CPE400 stands out with its exceptional communication capabilities: Front Panel Interfaces: Five LAN ports for network integration Dual USB ports for local configuration and maintenance Video display port for HMI connectivity Rear Panel Connections: RJ45 serial COM port for legacy device integration IICS Cloud Port (EFA) for enterprise connectivity All Ethernet ports support 10/100/1000 Mbps speeds with auto-negotiation for both straight and crossover cables, ensuring compatibility with diverse network infrastructures. Specialized Network Features This controller offers sophisticated networking capabilities designed for industrial applications: LAN1: Dedicated to linear communication architectures LAN2 & LAN3: Embedded switch ports with advanced functionality LAN3 provides high-speed synchronization for redundant systems LAN2 supports media redundancy protocol (MRP) for fault-tolerant networks The system supports SRTP protocol for programming station communication via LAN1 and LAN2, while maintaining compatibility with standard industrial Ethernet protocols. Programming Flexibility for Diverse Applications Engineers can develop control strategies using multiple IEC 61131-3 compliant languages: Ladder Logic (LD): Traditional relay-based programming Structured Text (ST): High-level language for complex algorithms Function Block (FBD): Graphical programming for process control C Programming: For custom, high-performance applications This versatility all...

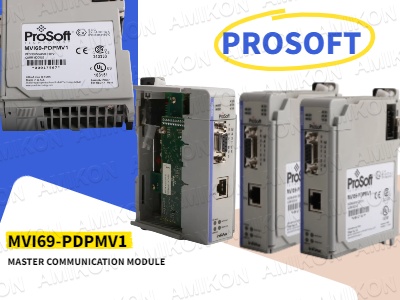

Introduction to the MVI69-PDPMV1 Module The MVI69-PDPMV1 is a high-performance PROFIBUS DPV1 Master communication module designed for Rockwell Automation’s CompactLogix and MicroLogix processors. Developed by ProSoft Technology under license from Rockwell Automation, this module enables seamless integration between PROFIBUS industrial networks and Allen-Bradley PLCs. With its proprietary backplane technology, the MVI69-PDPMV1 ensures real-time data exchange, making it ideal for industrial automation applications requiring high-speed communication between PLCs and field devices. Key Features of the MVI69-PDPMV1 The MVI69-PDPMV1 stands out due to its advanced communication capabilities, including: Full PROFIBUS DPV1 Master Support – Complies with IEC 61158 standards for industrial networking. Acyclic Data Transfer – Supports Class 1 and Class 2 DPV1 services for parameter configuration and diagnostics. Seamless Integration – Functions as an I/O module, bridging the PROFIBUS network with CompactLogix/MicroLogix processors. Asynchronous Data Transfer – Ensures smooth communication without delays between the PLC and PROFIBUS slaves. Robust Backplane Communication – Uses Rockwell Automation’s licensed technology for high-speed data exchange. These features make it a reliable choice for industries such as manufacturing, oil & gas, and automotive automation. Applications in Industrial Automation The MVI69-PDPMV1 is widely used in process control and factory automation, including: Motor Control Systems – Enables PLCs to communicate with PROFIBUS-driven motor drives. Sensor & Actuator Networks – Facilitates data exchange between PLCs and distributed I/O devices. Batch Processing & Packaging – Ensures synchronized operations in automated production lines. Energy Management Systems – Helps monitor and control power distribution networks. Its ability to handle both cyclic and acyclic data makes it versatile for complex automation tasks. Installation and Configuration Setting up the MVI69-PDPMV1 involves: Hardware Installation – Mounting the module in a CompactLogix/MicroLogix chassis. Network Configuration – Using ProSoft Configuration Builder (PCB) to set up PROFIBUS parameters. PLC Programming – Configuring RSLogix 5000 or Studio 5000 for data mapping. Testing & Validation – Ensuring proper PROFIBUS slave device communication. For optimal performance, users should follow Rockwell Automation’s installation guidelines. Troubleshooting and Maintenance Common issues with the MVI69-PDPMV1 include: PROFIBUS Network Errors – Check termination resistors and baud rates. PLC Communication Failures – Verify backplane compatibility and firmware versions. Data Transfer Delays – Optimize PROFIBUS scan times in configuration software. Regular firmware updates and preventive maintenance help extend the module’s lifespan. Conclusion The MVI69-PDPMV1 PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation PLCs, enabling seaml...

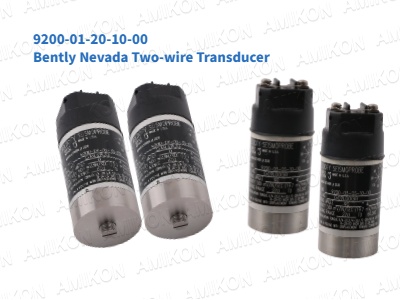

Advanced Vibration Measurement for Industrial Applications The Bently Nevada 9200-01-20-10-00 represents a significant advancement in vibration monitoring technology. This innovative two-wire transducer system provides precise measurement of absolute vibration in critical industrial equipment. Unlike conventional sensors, it captures movement relative to free space rather than requiring a fixed reference point, making it ideal for monitoring bearing housings, compressor casings, and structural components. Engineered for reliability in demanding environments, this solution offers plant operators a robust method for detecting potential equipment failures before they occur. The system's unique design eliminates many limitations found in traditional vibration sensors, providing maintenance teams with more accurate data for predictive maintenance strategies. Innovative Moving-Coil Technology Explained At the heart of the 9200-01-20-10-00 system lies its sophisticated moving-coil mechanism that sets it apart from other vibration sensors: Self-Generating Operation: Creates its own power through electromagnetic induction Linear Voltage Output: Produces signals directly proportional to vibration velocity Impact-Resistant Design: Minimizes false readings from sudden shocks or impulses Simplified Installation: Requires only two wires for both power and signal transmission This technology demonstrates superior performance compared to solid-state alternatives, particularly in environments with frequent mechanical shocks or transient vibrations. The passive design ensures long-term reliability with minimal maintenance requirements. 9200-01-20-10-00 Key Advantages Over Conventional Vibration Sensors The Seismoprobe system offers several distinct benefits that make it preferred for industrial monitoring: Enhanced Measurement Accuracy The transducer's velocity-proportional output provides more meaningful vibration data than displacement or acceleration measurements alone, particularly for rotating machinery analysis. Reduced False Alarms Improved immunity to impact vibrations decreases nuisance alerts that often plague accelerometer-based systems, allowing for more accurate condition assessment. Simplified Field Deployment With no external power requirements, technicians can quickly install and relocate sensors without complex wiring or power supply considerations. Durability in Harsh Conditions The rugged construction withstands extreme temperatures, moisture, and chemical exposure common in industrial settings. 9200-01-20-10-00 Practical Applications Across Industries This vibration monitoring solution proves invaluable in numerous industrial scenarios: Power Generation Turbine bearing monitoring Generator casing vibration analysis Pump and fan condition assessment Oil & Gas Compressor health monitoring Pipeline vibration detection Offshore platform structural analysis Manufacturing Production equipment condition monitoring Conveyor system vibration trackin...

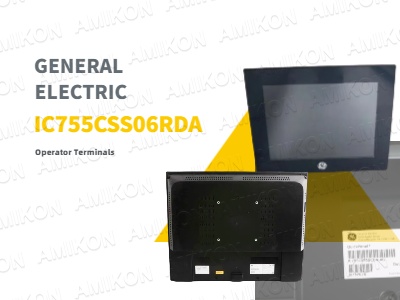

Overview of the IC755CSS06RDA QuickPanel+ Terminal The IC755CSS06RDA is a QuickPanel+ operator terminal originally manufactured by GE Intelligent Platforms (GE IP), now part of Emerson Automation. Designed as a Human Machine Interface (HMI), it provides real-time visualization and control for industrial machines and processes. With its customizable graphics, this HMI allows operators to monitor system performance, adjust variables, and execute control commands efficiently. Key Features and Display Specifications The IC755CSS06RDA features a 6-inch LCD screen with a 320 x 240-pixel resolution, ensuring clear visibility of process data. The display includes an analog-resistive touch panel, enabling operators to input commands directly. This touch interface supports navigation, parameter adjustments, and other configurable actions, making it highly adaptable to various industrial applications. Communication and Connectivity Options IC755CSS06RDA To facilitate seamless data exchange with Programmable Logic Controllers (PLCs), this HMI offers multiple connectivity options: 1x RJ45 Ethernet/IP port (10/100 Mbps, max 100m cable distance) 1x 5-pin RS232 serial port (max 15m cable distance) Three USB ports (2x USB 2.0 Type-A, 1x USB 2.0 mini Type-B) SD/SDHC card slot for removable storage These interfaces ensure flexible integration with different control systems and allow easy data transfer and firmware updates. Operating System and Software Compatibility The IC755CSS06RDA runs on Windows Compact Embedded 7, providing a stable and user-friendly environment for HMI configuration. This OS supports essential Windows tools, including: Command Prompt for advanced system management FTP (File Transfer Protocol) for data exchange SNTP (Simple Network Time Protocol) for time synchronization Additionally, it is compatible with GE’s Proficy Machine Edition software, enabling efficient HMI programming and customization. Industrial Applications and Benefits IC755CSS06RDA This operator terminal is widely used in industries such as: Manufacturing – Machine control and process monitoring Oil & Gas – Equipment visualization and safety systems Water Treatment – SCADA and automation control Food & Beverage – Production line supervision Key benefits include: High customizability for tailored HMI screens Robust communication with PLCs and other devices Compact and durable design for industrial environments Conclusion The IC755CSS06RDA QuickPanel+ operator terminal is a versatile and reliable HMI solution for industrial automation. With its responsive touch screen, multiple connectivity options, and Windows-based OS, it provides an efficient interface for monitoring and controlling complex systems. Whether used in manufacturing, energy, or process industries, this HMI enhances operational efficiency and ensures seamless human-machine interaction.  sales7@amikon.cn   86-18965423501   AMKPLC  Recent Hot Models General El...

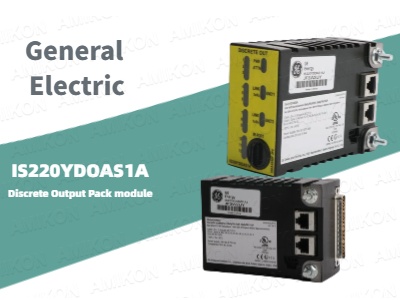

Module Overview The IS220YDOAS1A serves as a critical component within GE's Mark VIeS control system architecture. Its innovative design bridges I/O Ethernet networks with discrete output terminal boards through an advanced electrical interface. The module's dual-board configuration (combining a universal processor board with a dedicated acquisition board) ensures exceptional operational stability in demanding industrial environments. IS220YDOAS1A Key Functional Advantages Multi-channel control: Simultaneously manages up to 12 relay circuits Intelligent feedback system: Monitors terminal board status in real-time Broad compatibility: Supports various terminal board models including TRLYS1B/D/F Industrial durability: Features robust construction for harsh operating conditions Interface Specifications IS220YDOAS1A Engineered with dual RJ-45 Ethernet ports and a three-pin power input, the module guarantees stable signal transmission. Its proprietary DC-37 pin connector establishes direct linkage with terminal boards, significantly reducing signal degradation - a critical feature for industrial applications requiring uninterrupted operation. Industrial Applications IS220YDOAS1A From turbine control in power plants to production line coordination in smart factories, this module delivers precise discrete control. Its exceptional environmental tolerance makes it particularly valuable for oil/gas facility operations and other challenging industrial settings in the Industry 4.0 era. Maintenance Recommendations Quarterly connector inspections Regular cooling channel maintenance Biannual preventive testing Immediate troubleshooting using dedicated diagnostic tools when alert indicators activate Conclusion: With its outstanding performance metrics and rugged industrial design, the IS220YDOAS1A has become essential for modern automation systems. It provides an optimal solution for industrial applications requiring high-precision discrete control capabilities.  sales7@amikon.cn 86-18965423501   AMKPLC  Recent Hot Models General Electric DS3810MMBB1A1A General Electric 8851-LC-MT General Electric DS3800NTCF1C1C General Electric 8811-IO-DC-01 General Electric DS3800NSFE1E1B General Electric 8811-IO-DC-01 General Electric DS3800NPSE1E1G General Electric 8811-IO-DC-01 General Electric DS3800NOAA1F1D General Electric 8810-HI-TX-01 General Electric DS3800NMEC1K1K General Electric 8750-CA-NS General Electric DS3800NGDD1C1B General Electric 8709-CA-08 General Electric DS3800NGDC1A1A General Electric 8611-FT-FU General Electric DS3800NDAC1D1E General Electric 8607ERL General Electric DS3800HVDB1K1G General Electric 8601-FT-NI General Electric DS3800HMPK1F1B General Electric 8421-CC-PS General Electric DS3800HMPJ1A1D General Electric 8104-AO-IP General Electric DS3800HMPJ1A1D General Electric 8103AI-TX General Electric DS3800HISA1A1A General Electric 8021-CE-LH General Electric DS3800HIOD1H1G General Electric 8020-CE-RH General El...

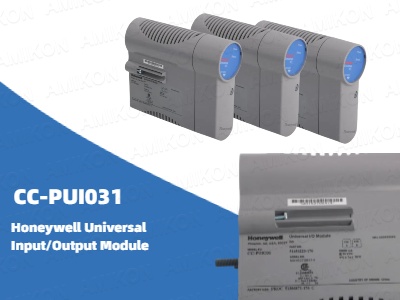

Product Overview and Technical Specifications The Honeywell CC-PUI031 Universal I/O Module stands out in industrial automation with its exceptional compatibility and flexibility. Featuring 32 programmable channels, this module supports configurable input/output modes to meet diverse field requirements. Its innovative circuit design accommodates multiple signal types while effectively suppressing electromagnetic interference in harsh industrial environments, ensuring stable signal transmission. CC-PUI031 Key Advantages and Performance Features High Channel Density: 32 programmable channels in a single module optimize cabinet space utilization Intelligent Diagnostics: Built-in real-time monitoring circuits provide early fault warnings Wide Temperature Range: Industrial-grade operation from -40°C to 70°C Dual-Mode Redundancy: Supports hot-swapping to minimize system downtime Energy Efficiency: Low-power architecture reduces energy consumption by 15% compared to similar products TCC-PUI031 ypical Industry Applications In oil & gas applications, the module is commonly used for: Pressure/temperature signal acquisition in refining systems Control units for pipeline motorized valves Status monitoring nodes in safety interlock systems For manufacturing automation, it serves in: Sensor network construction for production lines Signal interface for robotic control systems Digital input acquisition for quality inspection equipment System Integration Considerations CC-PUI031 Critical installation requirements include: Grounding Standards: Recommended star topology with ≤4Ω resistance Signal Isolation: Magnetic isolation devices for analog channels Cabling Requirements: Maintain ≥30cm separation between power and signal cables Environmental Protection: Enclosures with ≥IP54 rating for dusty conditions Parameter Configuration: Reserve 10% spare channels for future expansion Maintenance Strategies and Troubleshooting CC-PUI031 A comprehensive preventive maintenance plan should include: Quarterly channel calibration (within ±0.1% tolerance) Monthly terminal torque checks (recommended 0.6N·m) Weekly temperature monitoring (investigate ±5°C fluctuations) Common troubleshooting approaches: Unresponsive channels: First verify power supply (24VDC±10%) Signal drift: Check shield grounding integrity Communication failure: Validate termination resistance (typically 120Ω) Conclusion and Selection Guidance CC-PUI031 With its modular design and superior environmental adaptability, the CC-PUI031 module has become the preferred choice for industrial automation systems. For mission-critical applications, we recommend: Implementing redundant configurations in key process sections Allocating 15-20% spare channels Selecting OEM-certified accessories Maintaining complete module lifecycle documentation This product is particularly suitable for existing systems undergoing smart upgrades, offering compatibility with legacy equipment while meeting future d...

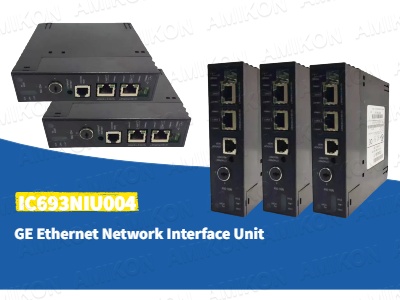

Introduction to the IC693NIU004 Module The IC693NIU004 serves as a critical communication component in industrial automation systems, specifically designed for GE's Series 90-30 Programmable Logic Controllers. This Ethernet Network Interface Unit (NIU) bridges the gap between PLC hardware and modern networking requirements, enabling seamless integration of legacy control systems with contemporary Ethernet-based architectures. IC693NIU004 Key Technical Specifications This robust interface module features dual 10/100 Mbps Ethernet ports with auto-sensing and auto-negotiation capabilities, supporting both simplex and fault-tolerant network configurations. The unit's technical specifications include: Memory capacity: 4096 internal coils, 256 temporary output bits, and 9999 register memory locations I/O handling: Supports up to 2048 discrete inputs/outputs and 1268/512 analog input/output words Network flexibility: Functions as a built-in Ethernet switch supporting linear, star, and ring topologies Expansion capability: Interfaces with up to 8 baseplates (1 CPU + 7 expansion/remote units) Network Communication Features The IC693NIU004 implements Ethernet Global Data (EGD) protocol for efficient data exchange across distributed systems. Its advanced communication capabilities include: Dual-port architecture with shared IP addressing Support for Secure Real-time Transport Protocol (SRTP) Built-in network diagnostics through status LEDs (EOK, LAN, STAT, PS PORT) Hardware reset functionality via dedicated pushbutton Compatibility with various industrial Ethernet topologies Configuration and Programming Requirements Proper configuration of the IC693NIU004 requires: CIMPLICITY Machine Edition Logic Developer software (version 4.0 SP3 or later) Special 4 firmware or newer Proper network parameter setup including: IP address assignment Subnet configuration EGD exchange definitions Security protocol implementation The module's design allows for re-initialization without complete power cycling, significantly reducing potential downtime during maintenance or troubleshooting procedures. Industrial Applications and Best Practices This Ethernet interface module finds application in numerous industrial scenarios: Manufacturing automation systems requiring distributed control Process industries with remote I/O requirements Infrastructure monitoring applications Energy management systems For optimal performance, installers should: Maintain operating temperatures within 0-60°C range Ensure proper network cabling and termination Implement regular firmware updates Follow GE's recommended maintenance procedures Conclusion: Reliable Industrial Networking Solution The IC693NIU004 Ethernet Network Interface Unit represents a robust solution for modernizing Series 90-30 PLC systems. Its combination of high-speed networking, substantial I/O capacity, and flexible configuration options makes it an excellent choice for industrial automation upgrades. The module's support for sec...

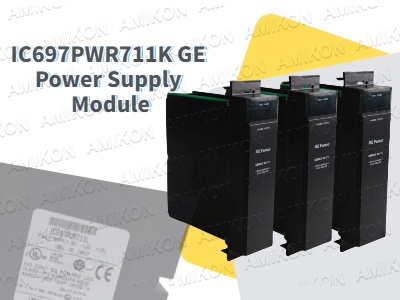

Product Overview The IC697PWR711K is a high-performance power supply module designed for industrial automation systems, specifically compatible with the 90-30 Series PLC family. This module provides stable and efficient power distribution to control racks, ensuring reliable operation in demanding industrial environments. Key features include dual voltage input supporting 120VAC and 240VAC (selectable via jumper), with a wide voltage range of 90-132VAC (120V mode) or 180-264VAC (240V mode). The module operates at 47-63Hz frequency and delivers multiple output voltages including +5VDC, +12VDC, and -12VDC to the backplane. It also supports rack expansion capability, allowing it to power a second rack within a 3-foot distance. With its slide-in rack construction and plug-in module design, the IC697PWR711K ensures easy installation and maintenance, making it a preferred choice for industrial control applications. Technical Specifications The IC697PWR711K power supply module is engineered for high efficiency and durability. Electrical characteristics include +5VDC output at 18A max (primary backplane power), +12VDC output at 2A max (auxiliary power), and -12VDC output at 1A max (analog circuit power). The total power capacity is 100W max including secondary rack, with an inrush current of 3A peak (half-cycle). Protection and safety features include short-circuit protection (electronic), overcurrent protection, power factor correction (PFC) for AC operation, and requires external fusing for branch circuit protection. Environmental ratings specify operating temperature from 0°C to 60°C (derating required for extreme conditions), with mounting position in the leftmost slot of the 90-30 rack or VME integrator rack. Installation and Setup Proper installation ensures optimal performance and longevity of the IC697PWR711K module. Mounting instructions include positioning in the leftmost slot of the PLC rack, securing via the 48-pin backplane connector, setting the jumper for 120VAC or 240VAC operation, and optional secondary rack powering using a 3-foot connecting cable (max distance) while ensuring total load does not exceed 100W (5.2A for the second rack). Power-up procedure involves verifying input voltage settings, ensuring external fuse protection is installed, turning on the module's ON/OFF switch, and monitoring output voltages for stability. Applications in Industrial Automation The IC697PWR711K is widely used in PLC-based control systems across various industries. Common use cases include manufacturing automation where it powers PLC racks in assembly lines, process control systems ensuring stable voltage for sensors and actuators, material handling systems supporting conveyors and sorting equipment, and energy management applications providing backup power distribution. Benefits in industrial settings include reduced wiring complexity through single PSU for two racks, improved system reliability with built-in protections, and simplified maintenance th...
