Introduction to the IC693NIU004 Module The IC693NIU004 serves as a critical communication component in industrial automation systems, specifically designed for GE's Series 90-30 Programmable Logic Controllers. This Ethernet Network Interface Unit (NIU) bridges the gap between PLC hardware and modern networking requirements, enabling seamless integration of legacy control systems with contemporary Ethernet-based architectures. IC693NIU004 Key Technical Specifications This robust interface module features dual 10/100 Mbps Ethernet ports with auto-sensing and auto-negotiation capabilities, supporting both simplex and fault-tolerant network configurations. The unit's technical specifications include: Memory capacity: 4096 internal coils, 256 temporary output bits, and 9999 register memory locations I/O handling: Supports up to 2048 discrete inputs/outputs and 1268/512 analog input/output words Network flexibility: Functions as a built-in Ethernet switch supporting linear, star, and ring topologies Expansion capability: Interfaces with up to 8 baseplates (1 CPU + 7 expansion/remote units) Network Communication Features The IC693NIU004 implements Ethernet Global Data (EGD) protocol for efficient data exchange across distributed systems. Its advanced communication capabilities include: Dual-port architecture with shared IP addressing Support for Secure Real-time Transport Protocol (SRTP) Built-in network diagnostics through status LEDs (EOK, LAN, STAT, PS PORT) Hardware reset functionality via dedicated pushbutton Compatibility with various industrial Ethernet topologies Configuration and Programming Requirements Proper configuration of the IC693NIU004 requires: CIMPLICITY Machine Edition Logic Developer software (version 4.0 SP3 or later) Special 4 firmware or newer Proper network parameter setup including: IP address assignment Subnet configuration EGD exchange definitions Security protocol implementation The module's design allows for re-initialization without complete power cycling, significantly reducing potential downtime during maintenance or troubleshooting procedures. Industrial Applications and Best Practices This Ethernet interface module finds application in numerous industrial scenarios: Manufacturing automation systems requiring distributed control Process industries with remote I/O requirements Infrastructure monitoring applications Energy management systems For optimal performance, installers should: Maintain operating temperatures within 0-60°C range Ensure proper network cabling and termination Implement regular firmware updates Follow GE's recommended maintenance procedures Conclusion: Reliable Industrial Networking Solution The IC693NIU004 Ethernet Network Interface Unit represents a robust solution for modernizing Series 90-30 PLC systems. Its combination of high-speed networking, substantial I/O capacity, and flexible configuration options makes it an excellent choice for industrial automation upgrades. The module's support for sec...

Product Overview The IC697PWR711K is a high-performance power supply module designed for industrial automation systems, specifically compatible with the 90-30 Series PLC family. This module provides stable and efficient power distribution to control racks, ensuring reliable operation in demanding industrial environments. Key features include dual voltage input supporting 120VAC and 240VAC (selectable via jumper), with a wide voltage range of 90-132VAC (120V mode) or 180-264VAC (240V mode). The module operates at 47-63Hz frequency and delivers multiple output voltages including +5VDC, +12VDC, and -12VDC to the backplane. It also supports rack expansion capability, allowing it to power a second rack within a 3-foot distance. With its slide-in rack construction and plug-in module design, the IC697PWR711K ensures easy installation and maintenance, making it a preferred choice for industrial control applications. Technical Specifications The IC697PWR711K power supply module is engineered for high efficiency and durability. Electrical characteristics include +5VDC output at 18A max (primary backplane power), +12VDC output at 2A max (auxiliary power), and -12VDC output at 1A max (analog circuit power). The total power capacity is 100W max including secondary rack, with an inrush current of 3A peak (half-cycle). Protection and safety features include short-circuit protection (electronic), overcurrent protection, power factor correction (PFC) for AC operation, and requires external fusing for branch circuit protection. Environmental ratings specify operating temperature from 0°C to 60°C (derating required for extreme conditions), with mounting position in the leftmost slot of the 90-30 rack or VME integrator rack. Installation and Setup Proper installation ensures optimal performance and longevity of the IC697PWR711K module. Mounting instructions include positioning in the leftmost slot of the PLC rack, securing via the 48-pin backplane connector, setting the jumper for 120VAC or 240VAC operation, and optional secondary rack powering using a 3-foot connecting cable (max distance) while ensuring total load does not exceed 100W (5.2A for the second rack). Power-up procedure involves verifying input voltage settings, ensuring external fuse protection is installed, turning on the module's ON/OFF switch, and monitoring output voltages for stability. Applications in Industrial Automation The IC697PWR711K is widely used in PLC-based control systems across various industries. Common use cases include manufacturing automation where it powers PLC racks in assembly lines, process control systems ensuring stable voltage for sensors and actuators, material handling systems supporting conveyors and sorting equipment, and energy management applications providing backup power distribution. Benefits in industrial settings include reduced wiring complexity through single PSU for two racks, improved system reliability with built-in protections, and simplified maintenance th...

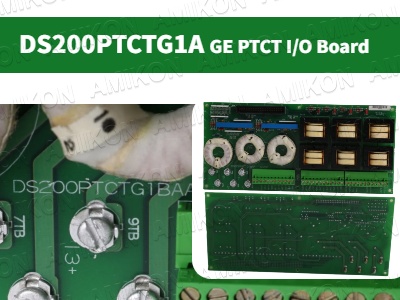

DS200PTCTG1A PTCT Input/Output Board Introduction  The GE DS200PTCTG1A is a voltage transformer (PT) and current transformer (CT) input/output board designed for use with GE's EX2000 excitation system. This specialized board plays a vital role in isolating, scaling, and conditioning voltage and current signals from PTs and CTs, ensuring accurate measurement and control in power generation and industrial applications. In addition, it supports low voltage (10V DC) and current signal inputs (4-20 mA), making it extremely versatile for a variety of monitoring and protection functions. Key Features and Technical Specifications  The DS200PTCTG1A provides a wide range of reliable signal processing functions:  Voltage signal processing:  Six high-precision transformers with a secondary rating of 1.6 Vrms (primary rating of 120 Vrms). Each primary connection has a dedicated terminal block. Test points (TP1-TP12) for voltage signal measurement. Current signal processing:  Three CTs with load resistors (R10-R12) for voltage measurement on the secondary side. Test points (TP13-TP18) for monitoring current signals. Low voltage and current inputs:  can be configured as 10V DC or 4-20 mA inputs via jumper settings (BJ nomenclature). Current output:  transmits a 4-20 mA signal to the TCCB board via connector JKK. Applications in power generation and industrial systems  The DS200PTCTG1A is widely used in:  Generator excitation control: Ensures accurate voltage and current feedback to the excitation system. Protection relays: Provide isolated signals for overcurrent and overvoltage protection. Power monitoring: facilitates accurate measurement of electrical parameters in substations. Industrial Automation: Integrates with control systems for process monitoring and control. Installation and Configuration  Wiring Terminals: Dedicated terminals for each PT and CT input ensure safe wiring. Jumper Settings: Adjustable to 10V DC or 4-20 mA input mode. Test points: for easy troubleshooting and signal verification. Output to TCCB: 4-20 mA signals are passed through the JKK connector for further processing. Advantages of using the DS200PTCTG1A  High accuracy: Ensures accurate signal scaling for reliable measurements. Isolation protection: prevents noise interference and ground loops. Flexible input options: Supports both voltage and current signals. Easy maintenance: Test point and jumper configurations simplify diagnostics. Conclusion  The GE DS200PTCTG1A PTCT I/O Board is a robust and precise solution for handling PT and CT signals in power generation and industrial applications. Its ability to isolate, scale, and condition electrical signals makes it indispensable for excitation systems, protective relaying, and power monitoring.  sales7@amikon.cn   86-18965423501   AMKPLC  Recent Hot Models GE IC698RMX016 GE 750-P5-G5-S5-HI-A20-R-E-H GE IC698PSA350 GE 750-P5-G5-S5-HI-A20...

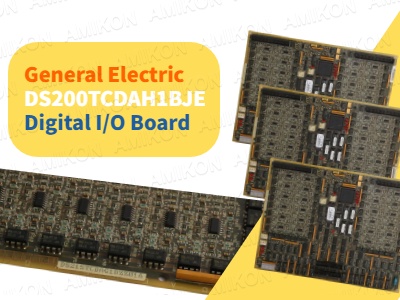

Introduction to the DS200TCDAH1BJE Digital I/O Board  The GE DS200TCDAH1BJE is a key digital I/O board designed specifically for the Mark V control system, which is widely used in industrial automation and turbine control applications. The board plays a vital role in processing digital contact input and output signals, ensuring seamless communication between terminal blocks and control modules. Whether in power plants, manufacturing facilities, or heavy machinery control systems, the DS200TCDAH1BJE improves operational efficiency by providing reliable signal conditioning and real-time data processing. Key Functions of the DS200TCDAH1BJE Board  The DS200TCDAH1BJE performs several essential functions in a Mark V control system: Digital Signal Processing: Processes input and output signals, including relays and solenoid controls. Signal Conditioning: Filters and prepares signals for accurate system interpretation. Time Stamping: Records time-stamped status changes for real-time monitoring and diagnostics. IONET Communications: Transmits processed signals via JX1 or JX2 connectors for full system integration. This board ensures a smooth flow of data between the terminal boards (DTBA and DTBB) and the central control system, minimizing delays and errors.  How the Contact Input Circuit Works  DS200TCDAH1BJE receives digital input signals from the DTBA and DTBB terminal boards connected through the JR and JQ connectors. It processes these signals as follows: Signal reception: The input signals are transmitted from the terminal boards to the TCDA board. Signal Conditioning: The board filters out noise and adjusts the signal level for accurate processing. Time Stamping: Any signal state changes are time stamped for troubleshooting purposes. Data Transfer: The processed signal is sent to the IONET for further system operation. In addition, software-configurable signal inversion allows the user to customize how inputs are interpreted, thus enhancing system flexibility. Applications in industrial control systems DS200TCDAH1BJE  is widely used in: Power generation: turbine control and protection systems. Manufacturing automation: machine control and safety interlocks. Oil and gas: monitoring and control of critical processes. Water treatment: pump and valve control systems. Its robust design and real-time processing capabilities make it ideal for high-reliability applications. Maintenance and Troubleshooting Tips  To ensure optimal performance: ✔ Periodic inspections: check for loose connections or damaged components. ✔ Firmware updates: Keep the software configuration up-to-date. ✔ Error logging: Monitor time-stamped signals for abnormal behavior. ✔ Replacement: If a failure occurs (for example, loss of signal or overheating), replace the board with a compatible unit. Conclusion  The GE DS200TCDAH1BJE digital I/O board is a key component in the Mark V control system, ensuring efficient signal processing and system communica...

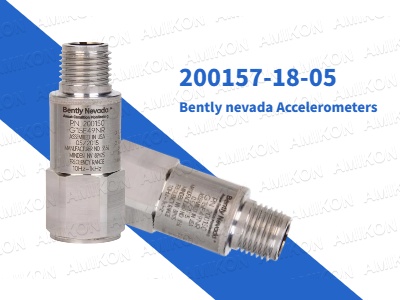

Introduction to Bently Nevada 200157-18-05 Accelerometers Bently Nevada’s 200350 and 200355 Accelerometers are high-performance, case-mounted seismic transducers designed for industrial vibration monitoring. These rugged sensors are widely used in machinery protection systems, providing accurate acceleration measurements in demanding environments such as power plants, oil refineries, and heavy manufacturing facilities. Compatible with Bently Nevada’s Trendmaster Pro Constant Current Direct Input Card (149811-02) and Seismic Direct Input Card (164746-01), these accelerometers ensure reliable data collection for predictive maintenance and machinery health monitoring. Robust Design for Industrial Durability 200157-18-05 Built to endure extreme conditions, the 200350 and 200355 Accelerometers feature a hermetically sealed stainless steel housing, protecting internal components from moisture, dust, and corrosive chemicals. The top-mounted MIL-C-5015 2-pin connector allows for quick and secure signal cable attachment, while the ¼-28 threaded base ensures flexible mounting options on various machinery surfaces. This robust construction guarantees long-term performance in high-temperature, high-vibration, and hazardous environments. Advanced Piezoelectric Sensing Technology 200157-18-05 At the heart of these accelerometers lies a precision piezoelectric sensing element, which generates an electrical charge in response to mechanical vibration. This charge is converted into a differential voltage signal, directly proportional to the acceleration along the sensor’s sensitive axis. The result is highly accurate vibration data, essential for detecting imbalances, misalignments, and bearing wear before they lead to equipment failure. Key Applications in Industry 200157-18-05 These accelerometers are ideal for: Rotating machinery monitoring (turbines, compressors, pumps) Condition-based maintenance programs Predictive maintenance in power generation & oil & gas industries Structural vibration analysis in heavy industrial equipment Their compatibility with Bently Nevada’s monitoring systems makes them a trusted choice for engineers seeking reliable, real-time vibration data. Why Choose Bently Nevada 200157-18-05 Accelerometers? Hermetic sealing for resistance to harsh environments Stainless steel construction for durability Precision piezoelectric sensing for accurate measurements Easy installation with MIL-C-5015 connectors and threaded base Compatibility with industry-standard monitoring systems Conclusion The Bently Nevada 200350 and 200355 Accelerometers provide a dependable solution for vibration monitoring in challenging industrial settings. With their rugged design, advanced sensing technology, and seamless integration with Bently Nevada’s monitoring systems, they help prevent unexpected downtime and extend equipment lifespan. For industries where machinery reliability is critical, these accelerometers deliver the performance and du...

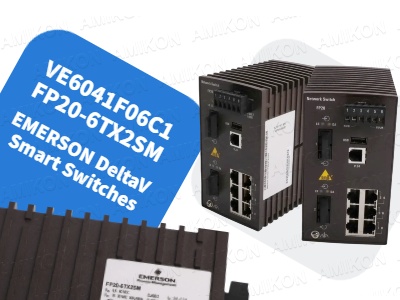

Introduction to DeltaV VE6041F06C1 FP20-6TX2SM Smart Switches Emerson’s DeltaV™ Smart Switches revolutionize industrial networking by combining commercial off-the-shelf (COTS) hardware with DeltaV-optimized software. Designed for seamless integration into DeltaV Area Control Networks (ACN), these switches deliver plug-and-play functionality, reducing setup time while enhancing reliability. Unlike traditional switches that require complex configurations, DeltaV Smart Switches are pre-configured for immediate deployment, ensuring optimal performance in process control environments. Their auto-discovery feature simplifies network expansion, making them ideal for industries like oil & gas, pharmaceuticals, and chemical processing. Key Features of DeltaV VE6041F06C1 FP20-6TX2SM Smart Switches DeltaV Smart Switches (such as the VE6041F06C1 FP20-6TX2SM model) offer several advanced capabilities: Zero-Touch Configuration – Ready for immediate use in DeltaV networks without manual setup. Auto Port Lockdown – Enhances cybersecurity by preventing unauthorized device access. Centralized Management – Configure and monitor all switches via the DeltaV Network Device Command Center. Cybersecurity Compliance – Meets industrial security standards to protect against evolving threats. High Reliability – Supports mission-critical operations with redundant power and fiber-optic options. These features make DeltaV Smart Switches a cost-effective yet high-performance solution for modern industrial networks. Benefits for Industrial Automation Deploying DeltaV VE6041F06C1 FP20-6TX2SM Smart Switches provides significant advantages: ✔ Reduced Downtime – Pre-configured settings minimize installation errors. ✔ Enhanced Security – Auto lockdown and role-based access prevent cyber threats. ✔ Scalability – Easily expand networks without reconfiguring existing infrastructure. ✔ Lower Total Cost of Ownership (TCO) – Combines COTS affordability with DeltaV-specific optimizations. Industries with strict compliance requirements (such as FDA-regulated facilities) benefit from their built-in security and audit capabilities. Cybersecurity & Network Protection In today’s increasingly hostile cyber environment, industrial networks are prime targets for attacks. DeltaV VE6041F06C1 FP20-6TX2SM Smart Switches address this challenge with: Automated Security Policies – Enforce consistent protection across all switches. Real-Time Monitoring – Detect and respond to anomalies instantly. Secure Firmware Updates – Prevent unauthorized modifications. By integrating these switches, companies can reduce vulnerabilities while maintaining high network availability. Applications in Process Control Systems DeltaV VE6041F06C1 FP20-6TX2SM Smart Switches are ideal for: Oil & Gas – Secure communication between offshore platforms and control centers. Pharmaceuticals – Ensure GMP compliance with validated network components. Power Generation – Reliable data transfer in SCADA and DCS environments. Ch...

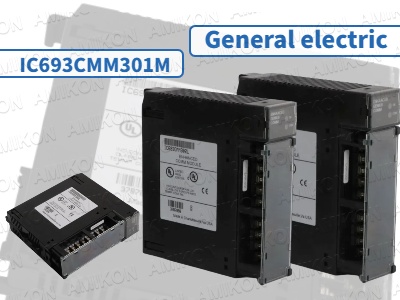

Overview of the IC693CMM301M Module The IC693CMM301M is a Genius Communications Module (GCM) designed for GE Series 90-30 PLCs. It enables seamless communication between multiple PLCs and industrial devices over a Genius Bus network. This intelligent module supports high-speed data exchange, making it ideal for industrial automation and control systems. With its ability to connect up to 32 devices on a single bus, the IC693CMM301M enhances system integration, allowing Series 90-30, 90-70, Series Six, and Series Five PLCs to communicate efficiently. IC693CMM301M Key Features and Specifications Compatibility: Works with GE Series 90-30 PLCs and other GE Fanuc PLCs. Bus Connectivity: Supports Genius Bus communication for real-time data exchange. Installation Options: Can be mounted on a CPU baseplate, expansion baseplate, or remote baseplate (optimal performance on CPU baseplate). Device Support: Connects 0-32 devices on a single Genius Bus. Applications: Used for data monitoring, industrial computer interfacing, and group-to-group communication. Installation and Setup The IC693CMM301M module is designed for easy integration into existing Series 90-30 PLC systems. Here’s how to set it up: Mounting Location: For best performance, install on the CPU baseplate. Wiring: Connect the Genius Bus to the terminal board on the module’s front panel. Configuration: Use GE programming software (such as Proficy Machine Edition) to configure communication parameters. Testing: Verify connections and test data exchange between devices. Common Applications The IC693CMM301M is widely used in industrial automation for: Real-time data monitoring (sensors, actuators, and control systems). Multi-PLC communication (linking Series 90-30 with other GE PLCs). Industrial networking (factory automation, process control, and machine-to-machine communication). Troubleshooting & Maintenance Tips No Communication? Check bus wiring and ensure proper termination. Module Not Recognized? Verify baseplate installation and power supply. Data Errors? Inspect for loose connections or faulty Genius Bus devices. Firmware Updates: Keep the module updated via GE Fanuc software tools. Conclusion The IC693CMM301M Genius Communications Module is a powerful solution for enhancing PLC networking and industrial automation. Its ability to connect multiple devices on a Genius Bus makes it a valuable component in GE Series 90-30 systems. For optimal performance, ensure proper installation, regular maintenance, and correct configuration. If you need replacements or upgrades, always source from authorized GE suppliers to guarantee compatibility and reliability.  sales7@amikon.cn  86-18965423501   AMKPLC  Recent models sold to the Middle East GE IS220YDIAS1A GE IS200VCRCH1BBB GE IS220YDIAS1A GE IS200VCRCH1B GE IS220YAICS1A GE IS200VAICH1DBC GE IS220UCSAH1A GE IS200VAICH1DAB GE IS220PVIBH1A GE IS200VAICH1DAA GE IS220PTURH1A GE IS200VAICH1CBA GE IS220PTCCH1A GE IS...

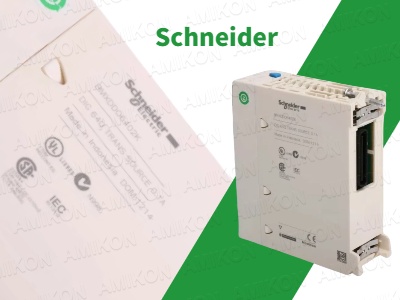

Introduction to the BMXDDO6402K Schneider Discrete Output Module The BMXDDO6402K Schneider Discrete Output Module is a vital component in the Modicon X80 range, designed to work seamlessly with Modicon M580 and M340 Programmable Automation Controllers (PAC). This module is engineered to provide robust and reliable control for a wide range of industrial applications, making it an essential tool for medium to large process automation systems. Key Features and Specifications The BMXDDO6402K module offers 64 discrete outputs with sink (positive) logic, making it highly versatile for various control tasks. It operates within a voltage range of 19V DC to 30V DC, with a typical current consumption of 79mA at 3.3V DC. Each output can handle a current of up to 0.5A, ensuring efficient power delivery to connected devices. Advanced Protection Mechanisms One of the standout features of the BMXDDO6402K module is its comprehensive protection suite. It includes reverse polarity protection, external short-circuit protection, overload protection, and overvoltage protection. These features ensure that the module remains operational even under adverse conditions, reducing downtime and maintenance costs. Reliability and Compliance The BMXDDO6402K module is built to last, with an impressive Mean Time Between Failures (MTBF) of 159,924 hours. It is rated IP20, ensuring protection against dust and indirect contact. The module weighs a mere 0.15kg, making it lightweight and easy to integrate into existing systems. It is also certified by multiple international standards, including EAC, Merchant Navy, CSA, RCM, CE, and UL, and meets EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. Cost-Effective and User-Friendly The Modicon X80 range, which includes the BMXDDO6402K module, is designed to reduce maintenance and training costs. By using a common platform of modules, companies can stock the same spare parts for different Programmable Automation Controllers (PAC), simplifying inventory management. Additionally, the unified training approach ensures that technicians can quickly become proficient with multiple controllers, enhancing operational efficiency. Conclusion The BMXDDO6402K Schneider Discrete Output Module is a powerful and reliable solution for industrial automation. Its advanced features, robust protection mechanisms, and compliance with international standards make it an ideal choice for a wide range of applications. By choosing the BMXDDO6402K, companies can benefit from reduced maintenance costs, simplified training, and enhanced system reliability, ultimately driving operational efficiency and productivity.  sales7@amikon.cn 86-18965423501   AMKPLC  Recent Hot Models Schneider AS-S908-110 Schneider 140XCP51000 Schneider AS-P890-000 Schneider 140XCP50000 Schneider AM-SA85-000 Schneider 140XCA71706 Schneider 990XCP98000 Schneider 140XBP01600 Schneider 490NRP25400 Schneider 140XBP01000 Schneider 416NHM30030A Schne...
