Product Specifications

Product Number	RSD-GW3-Ex2.DPE
Rated voltage	8.88-9.5 V
Power loss	8 W
Power consumption	8.5 W
Cycle time	1.6 ms
Transfer rate	9.6-1500 kBit/s
Ambient temperature	-20-70 °C (253-343 K)
Storage temperature	-20-100 °C (253-373 K)
Relative humidity	95 %, non-condensing
Shock resistance	15 g peak, 11 ms period
Core cross-section	≤ 2.5 mm²
Output-side Voltage Uo	± 3.72 V
Output-side Current Io	76.5 mA
Output-side Power Po	103 mW
Input-side Voltage Ui	± 3.75 V
Internal capacitance Ci	negligible
Internal inductance Li	negligible
External capacitance Co	100 µF
External inductance Lo	1.5 mH
L/R-ratio	344 µH/Ω

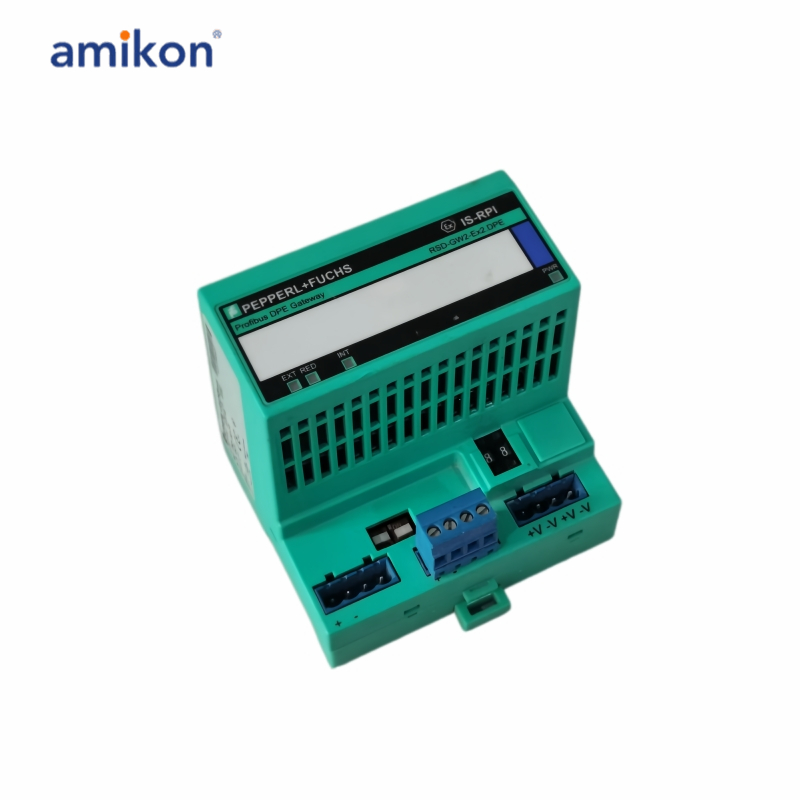

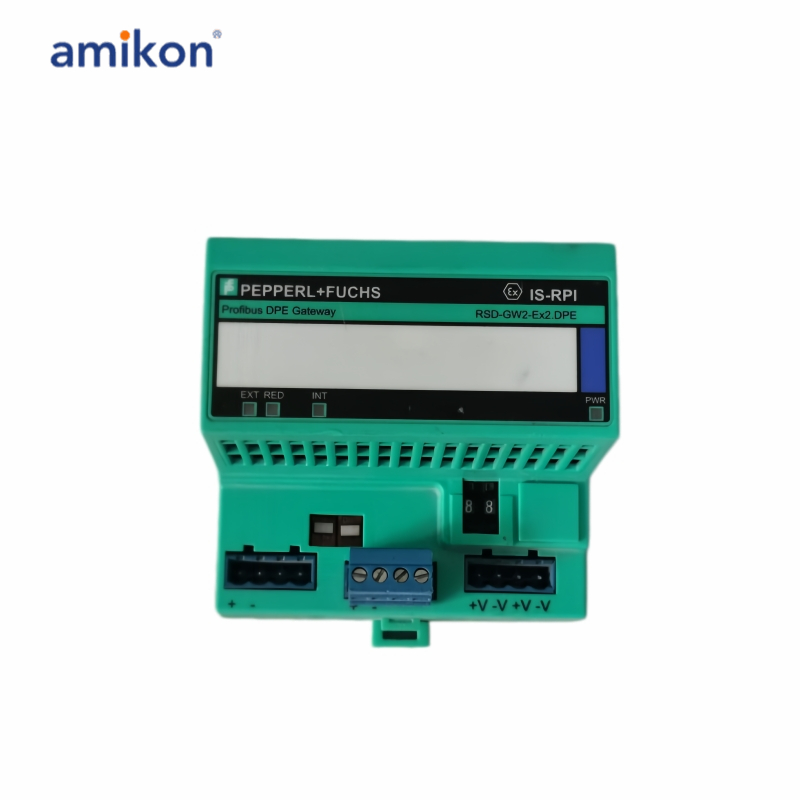

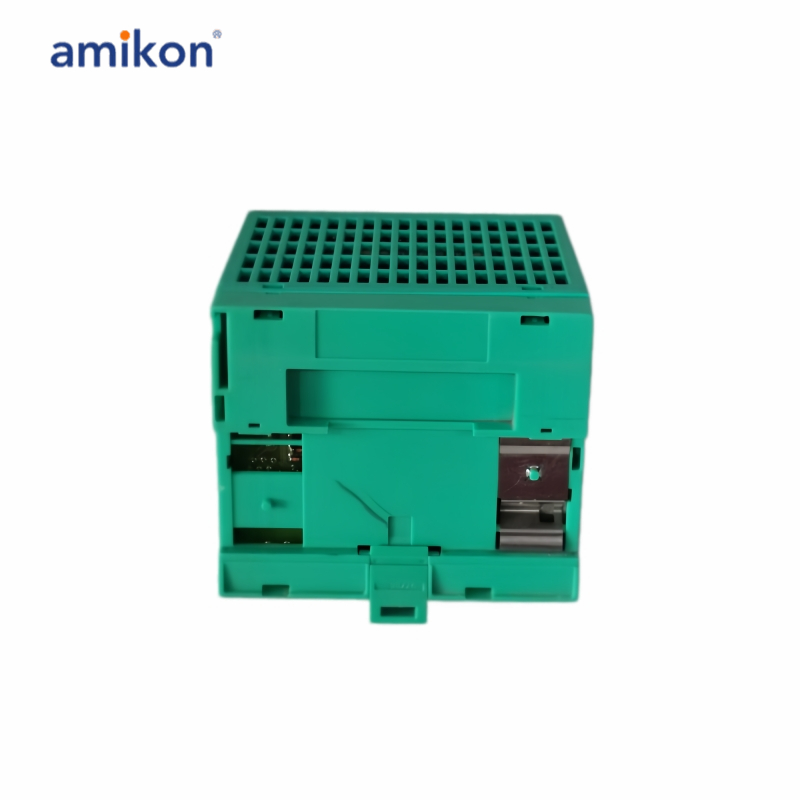

The Pepperl+Fuchs RSD-GW3-Ex2.DPE is a PROFIBUS DP gateway designed to serve as the interface between the PROFIBUS DP-V1 network and the internal manufacturer-specific bus. It converts the protocol of the internal bus to the PROFIBUS DP protocol and vice versa, enabling communication between field devices and the control system.

The RSD-GW3-Ex2.DPE supports PROFIBUS DP-V1 communication with a data transfer rate from 9.6 kbit/s up to 1.5 Mbit/s. It provides PROFIBUS DP media redundancy, supports the transfer of HART signals, and features LED status indicators for the internal backplane bus, external PROFIBUS communication, redundant transmission line, and power status. The gateway also supports hot swap operation and can be replaced under voltage in Zone 1 applications.

The gateway is designed with an MBI backplane interface and communicates with external devices through PROFIBUS using intrinsically safe RS-485 transfer technology. It supports bus addresses from 1 to 99, which can be configured via a switch, and includes a selectable terminating impedance with ON/OFF settings.

Frequently asked questions：

What is the Pepperl+Fuchs RSD-GW3-Ex2.DPE?
The RSD-GW3-Ex2.DPE is a PROFIBUS DP gateway that serves as an interface between the PROFIBUS DP-V1 network and the internal manufacturer-specific bus. It converts communication between the internal bus and the PROFIBUS DP protocol in both directions.

What is the operating voltage of the gateway?
The gateway operates with a terminal supply voltage of 8.88 V to 9.5 V.

What are the power consumption specifications?
The gateway has a power consumption of approximately 8.5 W and a power loss of 8 W.

What protection rating does the RSD-GW3-Ex2.DPE provide?
The gateway is rated IP20. For field installation, a separate enclosure with a minimum protection rating of IP54 is required.
