Product Specifications

Model	9470/32-16-11
Product Type	Digital Input/Output Module
Channel Quantity	16 Ex i Inputs/Outputs
Max Switching Frequency	20 kHz
Frequency Input Channels	Up to 8 channels
Rotation Direction Detection Channels	Up to 4 channels
Counter Function	16-bit / 32-bit Up-Down Counter
Counting Range	0 ~ 65535 (UINT16)
Supply Voltage	8.2 V
Operating Point Current	1.65 mA
Min. ON Input Signal Current	2.1 mA
Max. OFF Input Signal Current	1.2 mA
Max. Output Current	8.2 mA
Open-Circuit Voltage (Ua)	8.2 V
Internal Resistance	1 kΩ
Total Current Consumption	120 mA
Max. Power Consumption	2.5 W
Operating Temperature	-40°C ~ +75°C
Storage Temperature	-40°C ~ +80°C

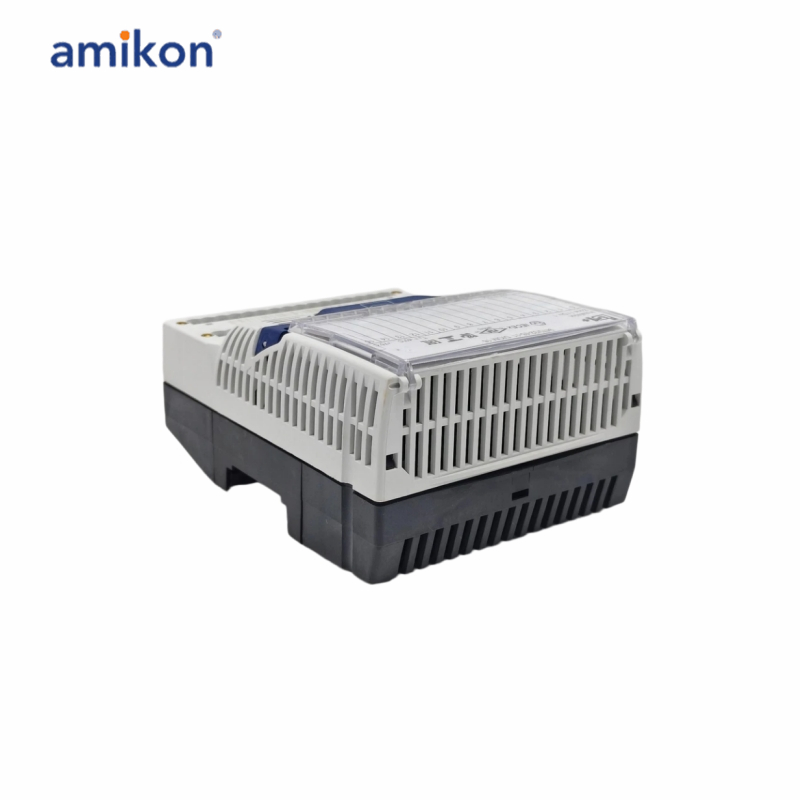

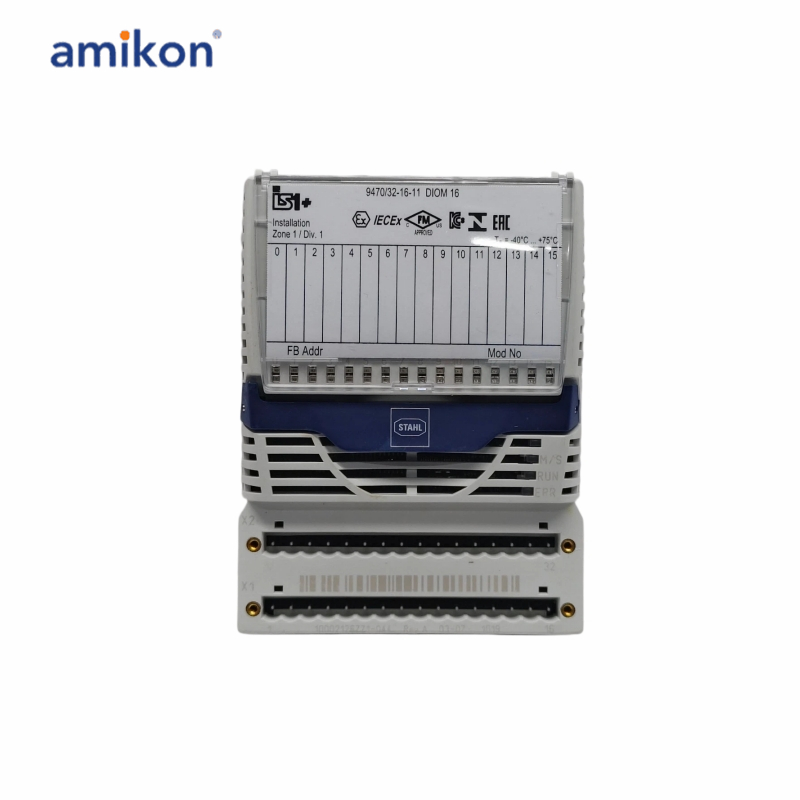

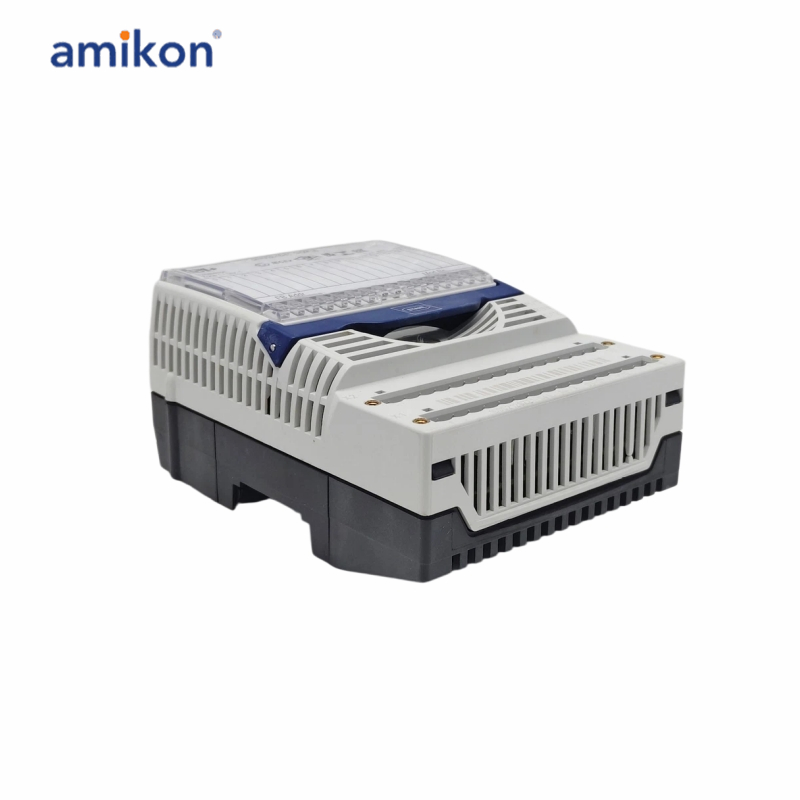

The 9470/32 digital input/output module for Zone 1 has 16 channels which can be used in pairs forEx ioperation as inputs for contacts and NAMUR proximity switches (EN 60947-5-6) or as outputsfor indicator lamps and low-power solenoid valves. Eight inputs can be used for frequencies of upto 20 kHz, and four can be used for detecting the direction of rotation.All inputs/outputs are short-circuit proof and galvanically separated from the system.
The 9470/32-16-11 module features intrinsically safe Ex ia IIC circuits, line fault monitoring, galvanic isolation, and individual channel status and fault LEDs. It supports frequency measurement up to 20 kHz, directional rotation detection, and up/down counting functions. Designed for maximum system availability, the module can be hot-swapped in Zone 1 without disconnecting power. All channels are short-circuit protected and isolated from the system, ensuring reliable operation in safety-critical applications.

Frequently asked questions：

Q1: What is the R-STAHL 9470/32-16-11 Digital Input/Output Module used for?
A1: The 9470/32-16-11 is a digital I/O module used for monitoring and controlling field signals in industrial and hazardous-area applications.

Q2: What is the maximum switching frequency of the 9470/32-16-11 module?
A2: The 9470/32-16-11 module supports a maximum switching frequency of 20 kHz, enabling fast signal processing and response.

Q3: What is the supply voltage required by the 9470/32-16-11 module?
A3: The 9470/32-16-11 module operates with a supply voltage of 8.2 V.

Q4: What is the 9470/32-16-11 operating point current?
A4: The 9470/32-16-11 operating point current is 1.65 mA.

Q5: What is the 9470/32-16-11 minimum ON input signal current?
A5: The 9470/32-16-11 minimum current required to recognize an ON input signal is 2.1 mA.

Product Applications

Oil and Gas Extraction
Petrochemical and Chemical Industries
Fine Chemicals and Pharmaceuticals
Metallurgy and Power Control
