Model Number: 0-60031-5
Type: Drive I/O Module
Manufacturer: Reliance Electric
Input Voltage: 24 VDC ±10%
LED Indicators: 9 status LEDs for monitoring
Operating Temperature: 0°C to 55°C
Vibration Resistance: 5G @ 10–2000 Hz

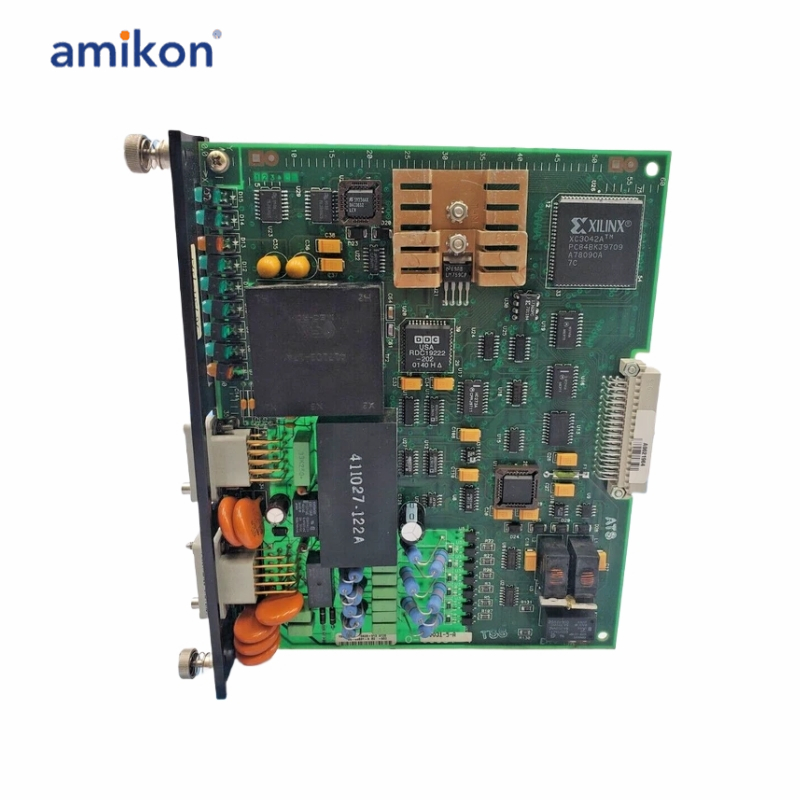

The 0-60031-5 is a circuit board fabricated by Reliance as a component for their various drive systems, most usually the Automate series of drives. The 0-60031-5 is considered an obsolete part and is no longer in active production. It is typically notated as a Reliance part. However, changes in company structure merged this portion of Reliance Electric with other manufacturers. The part you are replacing may have shipped originally from Baldor-Reliance or Asea Brown Boveri.

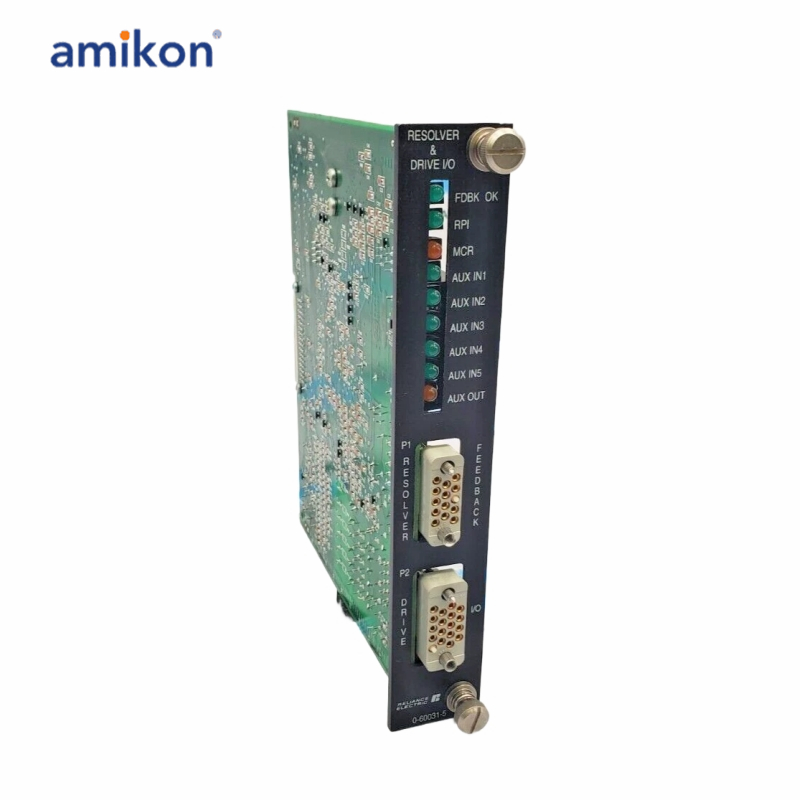

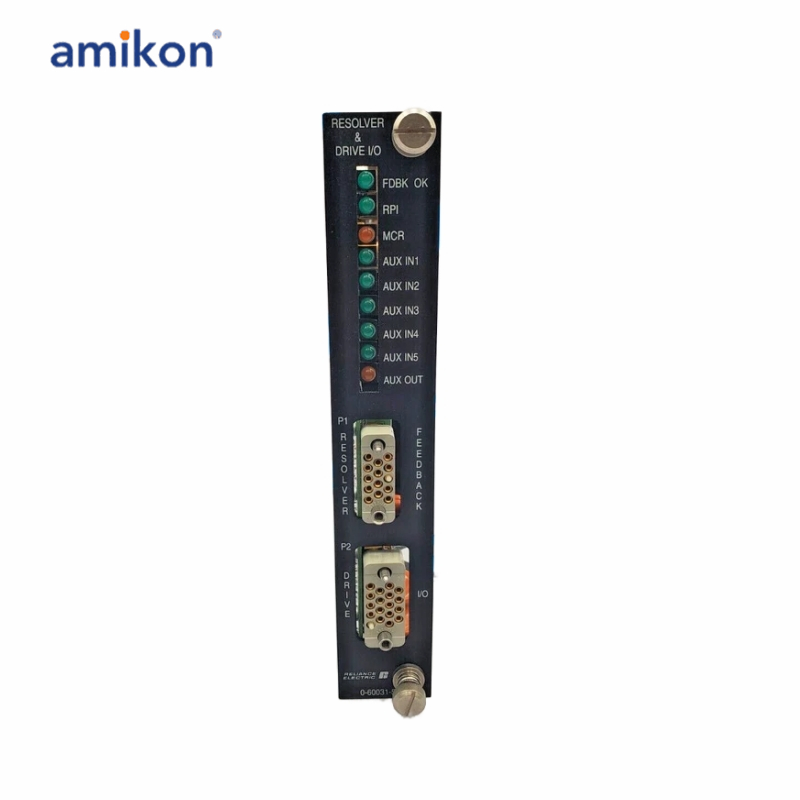

The 0-60031-5 is a Resolver and Drive I/O PMI module. This component has an attached narrow faceplate with two female plug connectors in its lower half. These are labeled ‘resolver feedback’ and ‘drive I/O. ’ The board also has nine LED indicators (mounted in a pattern of two green, one red, five green, one red.) These are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4, auxin5 and aux out.
