Range of Product：Altivar Soft Starter ATS480
Product or Component Type：Soft Starter
Product Destination：Asynchronous Motors
Product Specific Application：Process and Infrastructures
Device Short Name：ATS480
Network Number of Phases：3 Phases
Utilisation Category：AC-3A, AC-53A
Power Supply Voltage (Ue)：208–690 V (-15…+10 %)
Power Supply Frequency：50–60 Hz (-20…+20 %)
Rated Operational Current ([Ie])：
Normal Duty: 62.0 A (at <40 °C)
Heavy Duty: 47.0 A (at 40 °C)
Degree of Protection：IP20
Control Circuit Voltage ([Us])：110–230 V AC, 50/60 Hz (-15…+10 %)
Apparent Power：0.09 kVA
Integrated Motor Overload Protection：Yes
True Current Limiting (%In, 5 × Ie maximum)：150–700 %
Rated Current Power Loss Specification：62.0 A
Power Loss (Static, Current Independent)：25.0 W
Power Loss (Per Device, Current Dependent)：181.0 W

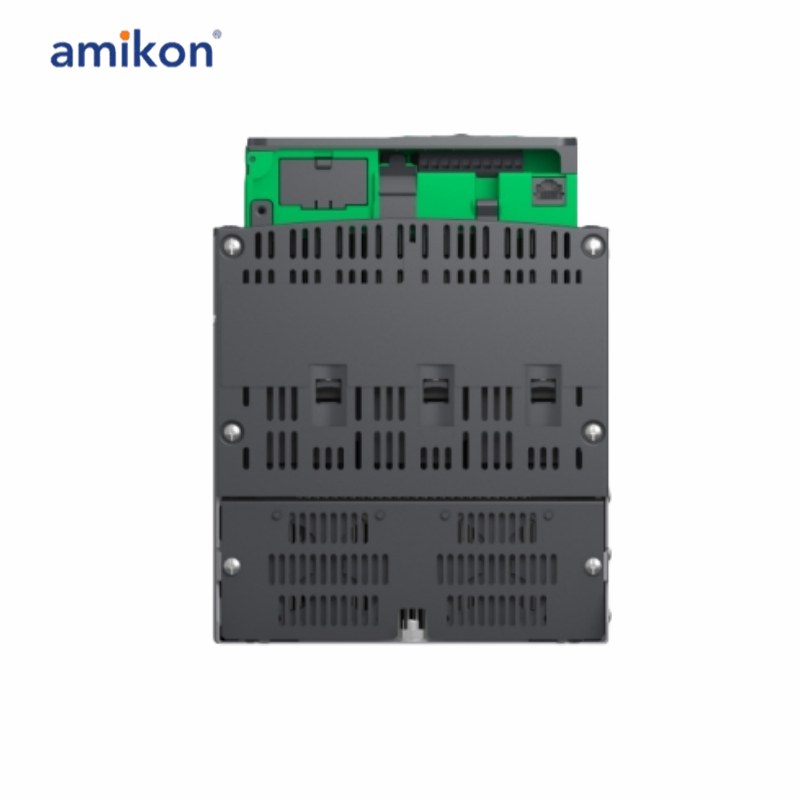

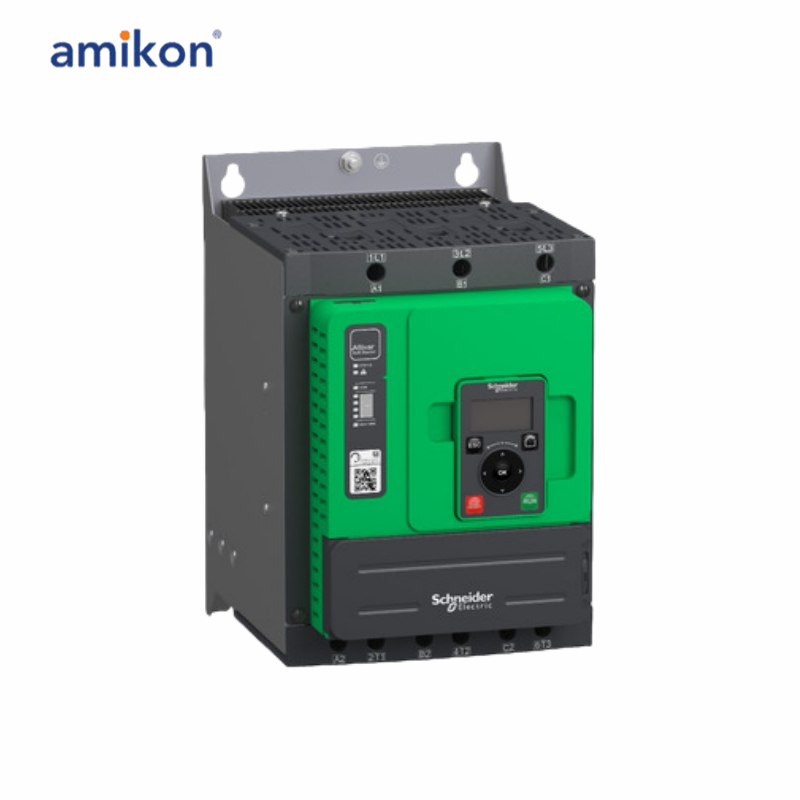

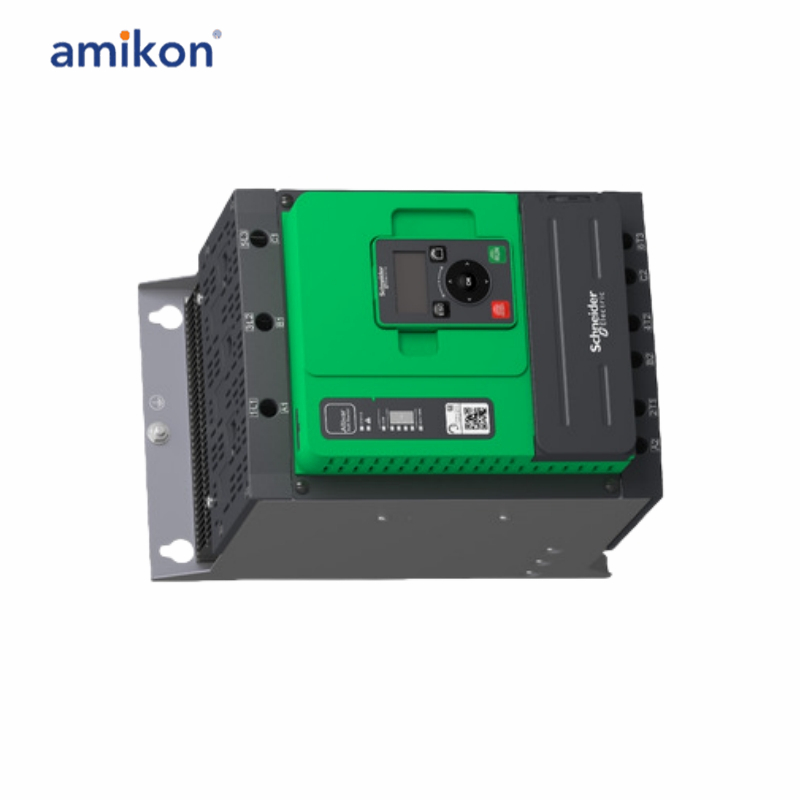

The Schneider Electric ATS480D62Y Soft Starter is part of the Altivar Soft Starter ATS480 series, engineered to provide smooth starting and stopping of three‑phase asynchronous motors across a wide supply voltage range from 208 V to 690 V AC. This soft starter is suitable for demanding industrial applications, infrastructure systems, and critical machines where controlled torque and reduced mechanical stress are important. It features advanced torque control (TCS) for optimized acceleration/deceleration and includes built‑in motor protection functions such as overload, phase loss, and thermal protection. The ATS480D62Y can be installed in‑line or inside the motor delta connection to reduce current and improve performance. It is designed for industrial robustness, connectivity, and integration with digital tools such as EcoStruxure.
