Manufacturer: Schneider Electric
Series: ATV312

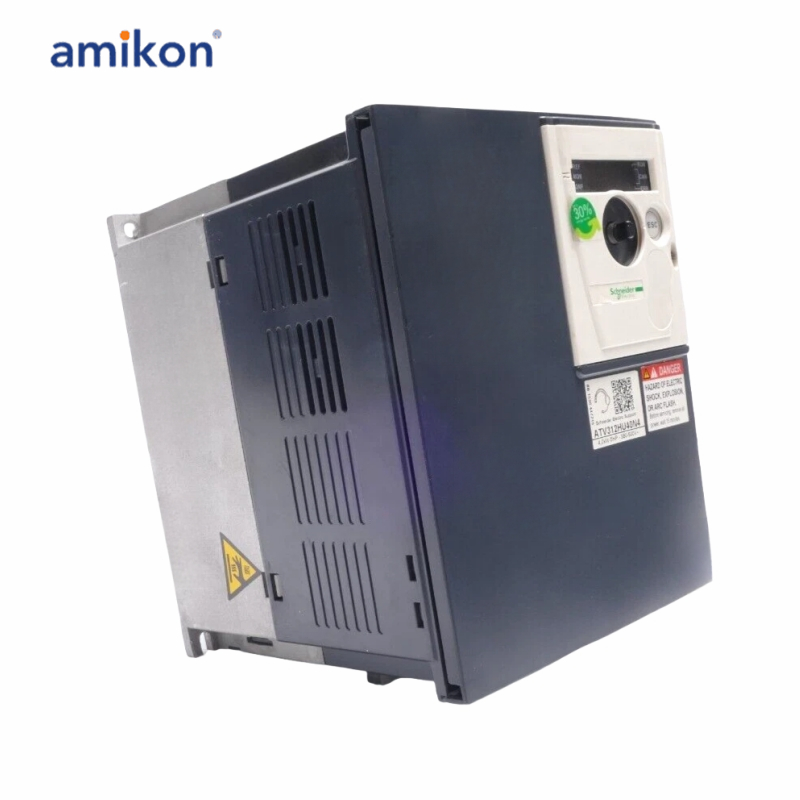

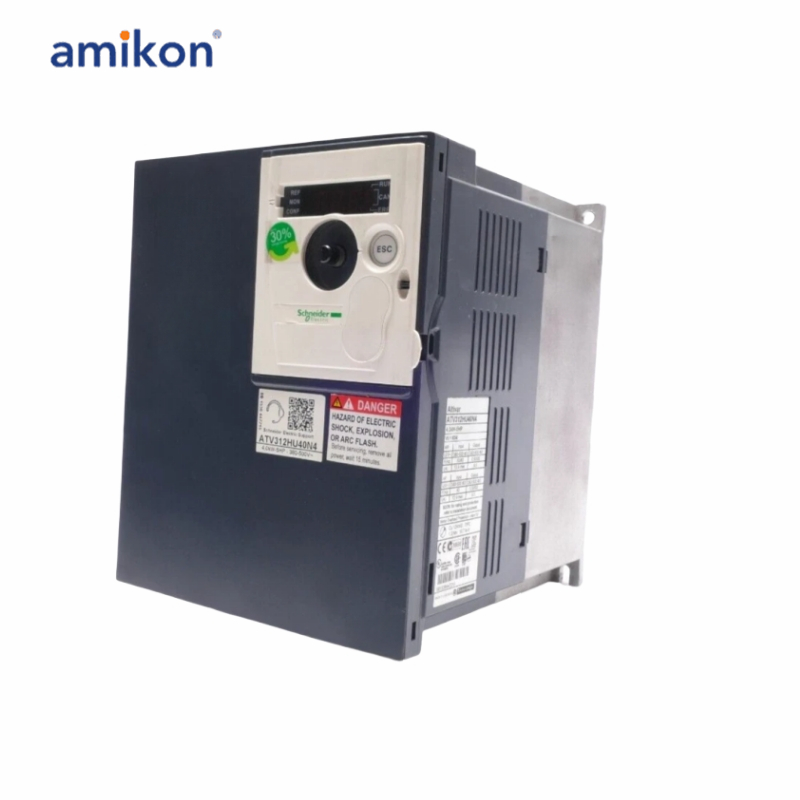

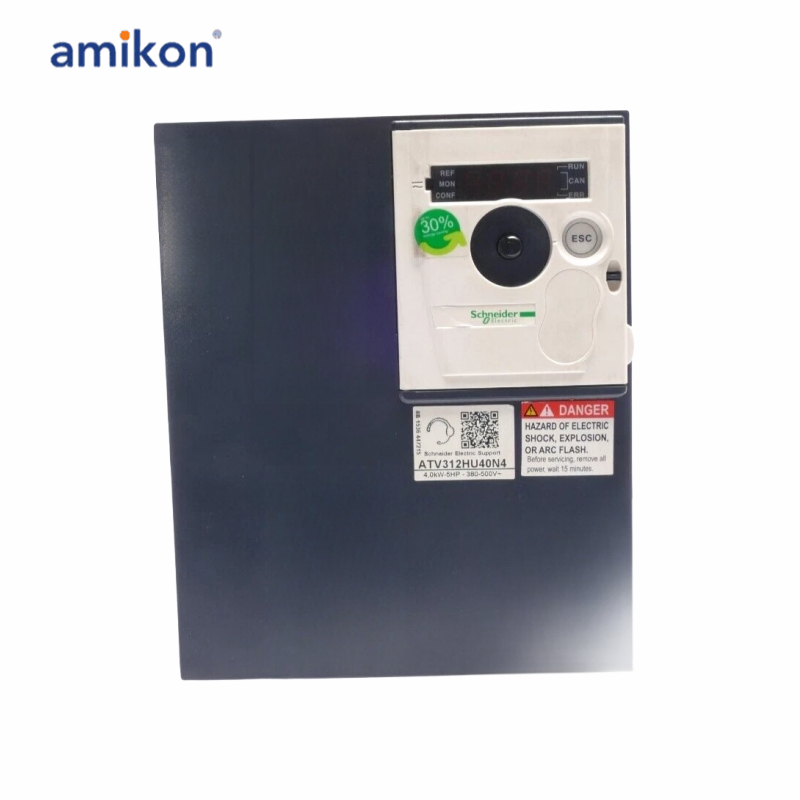

Device Short Name: ATV312HU40N
Device Type: Adjustable Frequency Drive
Control Method: Sensorless flux vector control using PWM
Operating Speed Range: Adjustable from 1 to 50
Frequency Output: 0 to 500 Hz
Default Switching Frequency: 4 kHz (adjustable between 2 and 16 kHz)
Motor Capacity (kW): 4 kW
Motor Rating (hp): 5 hp
Input Voltage Range: 380…500 V (-15%…+10%)
Input Frequency: 50/60 Hz (±5%)
Phase Configuration: Three-phase
Input Current: 13.9 A (380 V), 10.6 A (500 V)
Peak Current Capacity: 14.3 A (up to 60 seconds)
Apparent Power Rating: 9.2 kVA
Integrated EMC Filter: Built-in

Designed by Schneider Electric, the ATV312HU40N is an adjustable frequency drive that excels in controlling motor speed and torque. Its advanced control method employs sensorless flux vector control using pulse width modulation (PWM), enhancing performance across various loads. Users can set the operating speed anywhere from 1 to 50, making it adaptable for multiple applications.
This drive is apt for dynamic control environments and can output frequencies ranging from 0 to 500 Hz. Its default switching frequency is 4 kHz, but it can be adjusted between 2 and 16 kHz, depending on user requirements. The ATV312HU40N supports motor capacities up to 4 kW (or 5 horsepower), ensuring effective performance.
