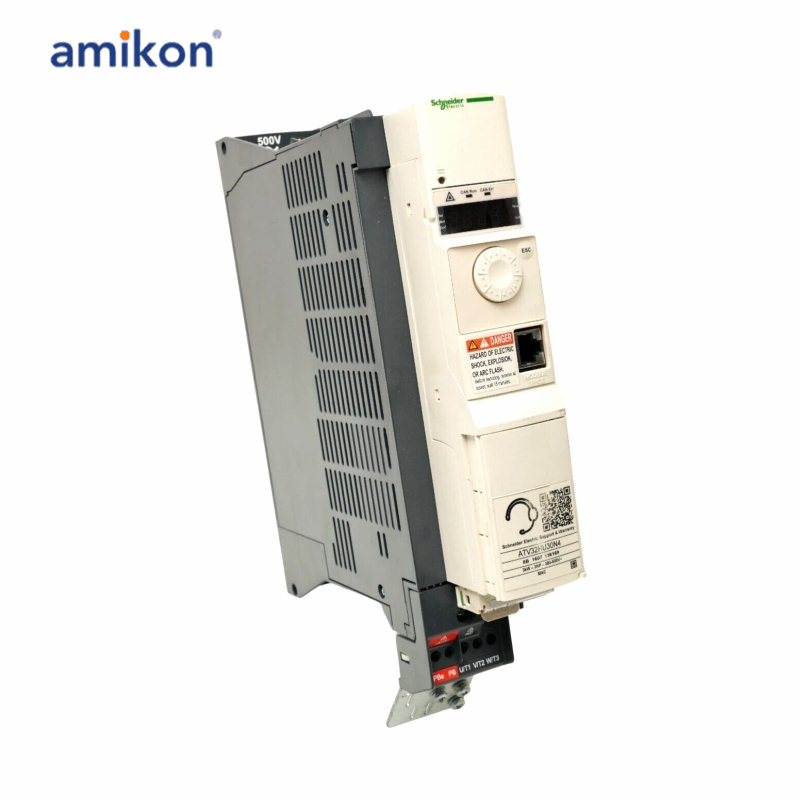

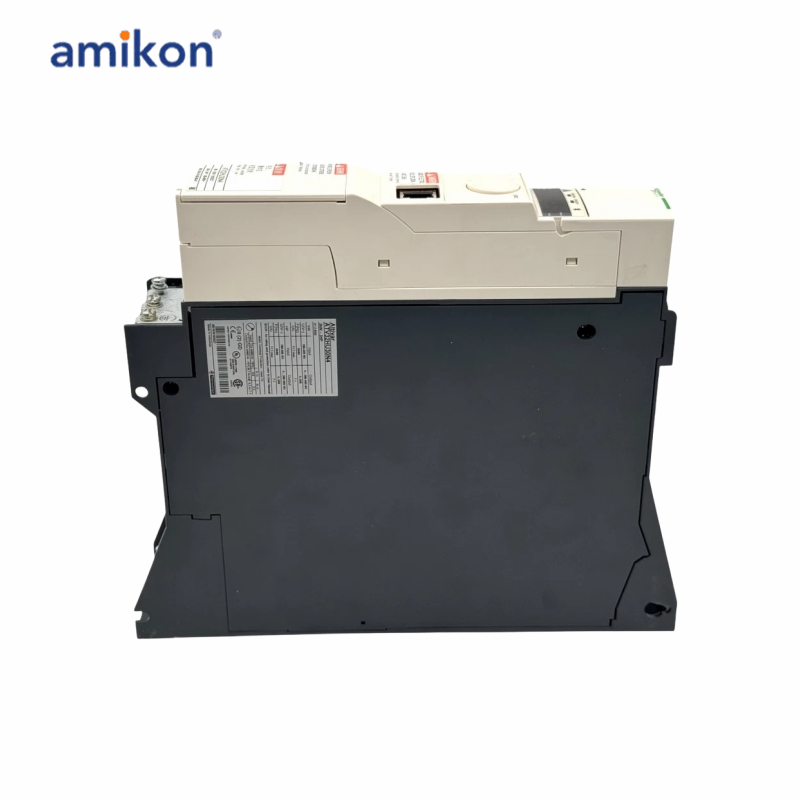

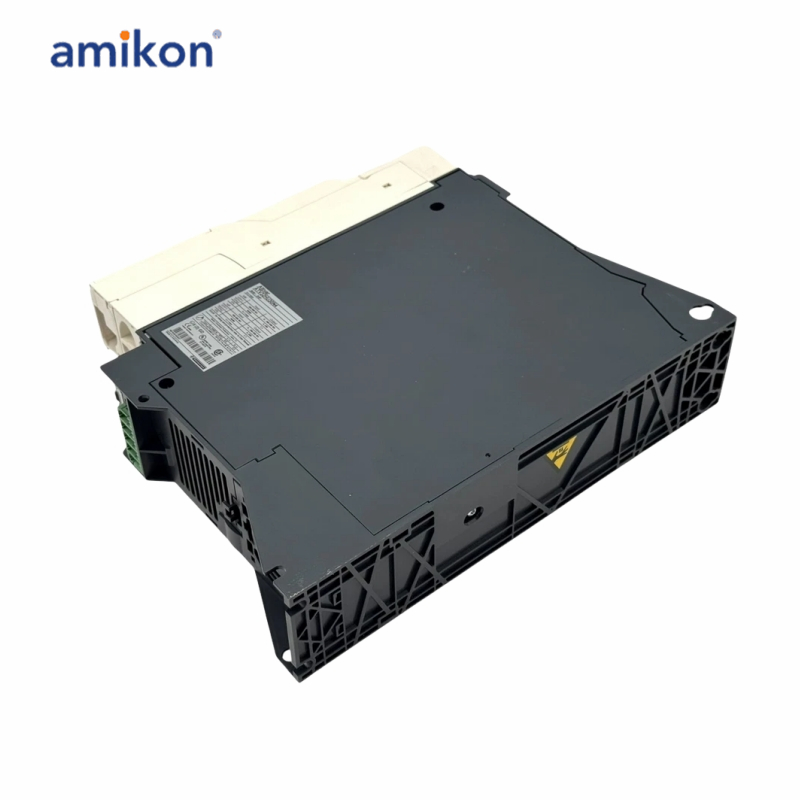

Part Number: ATV32HU30N4
Range of Product: Altivar 32
Component Name: ATV32
Rated Supply Voltage [Us]: 380...500 V (-15...+10 %)
Supply Voltage Limits: 323…550 V
Supply Frequency: 50...60 Hz (-5...+5 %)
Network Frequency: 47.5...63 Hz
Motor Power (kW): 3 kW (at 380...480 V)
Apparent Power: 7.3 kVA (500 V, 3-phase, 3 kW)
Prospective Line Isc: 5 kA (3-phase)
Nominal Output Current: 7.1 A (4 kHz, 500 V, 3 kW)
Maximum Transient Current: 10.7 A (60 s, 3 kW)
Output Frequency: 0.0005…0.599 kHz
Nominal Switching Frequency: 4 kHz
Torque Accuracy: ±15 %
Transient Overtorque: 170…200 %
Braking Torque: ≤170 % (with braking resistor)

This Altivar 32 3-phase variable speed drive has a rated power of 3kW, and a supply voltage of 380V to 500V AC. It is designed for applications such as small conveyors, hoists, bagging / labeling machines, mixers, kneaders, textile machines, pumps, compressors, fans, wood-working and metal processing machines. It has a 60mm-wide book form-factor, allowing for a flexible and easy installation on a mounting plate without any space between adjacent drives. It also offers a snap-lock seal, status and faults display, a jog dial navigation button and an integrated EMC filter. It offers high readability of key parameters thanks to a bright LED 4-digit display. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime.
