Product Specifications

Manufacturer	Schneider Electric
Product Type	Variable Speed Drive
Product Line	Altivar
Part Number	ATV61HD75N4
Weight	65.00 lbs (29.48 kg)
Series	Altivar 61
EMC Filter	Integrated EMC filter
Switching Frequency Range	1–16 kHz adjustable
Power Rating	75 kW / 100 HP
Assembly Style	With heat sink
Maximum Transient Current	94.8 A (60 seconds)
Supply Voltage	380–480 V, 3-phase
Protection Rating	IP20
Apparent Power	55.3 kVA (380 V, 3-phase)
Supply Frequency	50/60 Hz
Nominal Switching Frequency	12 kHz
Maximum Horse Power Rating	100 HP

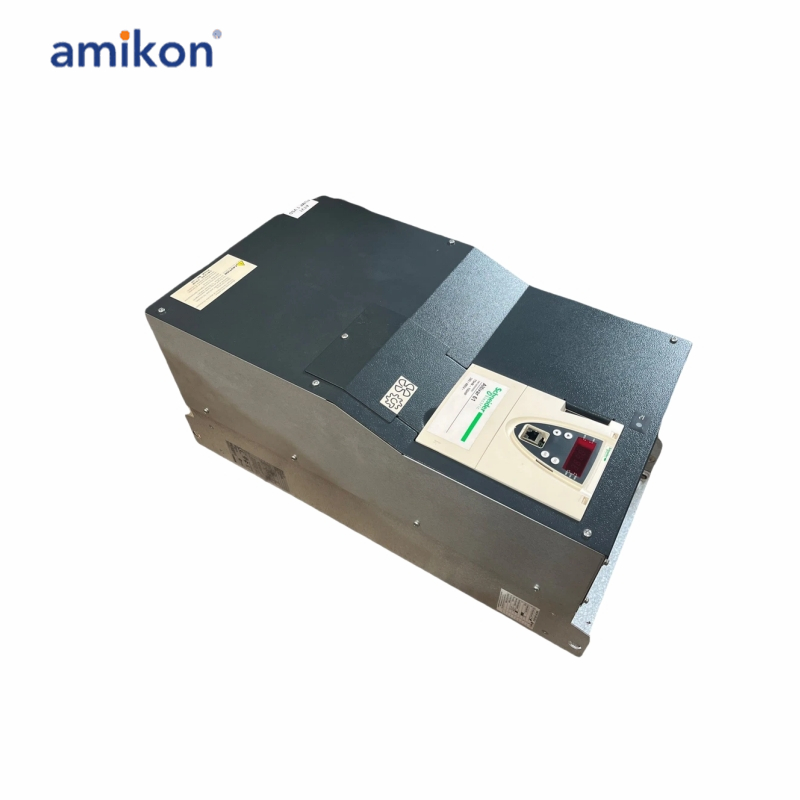

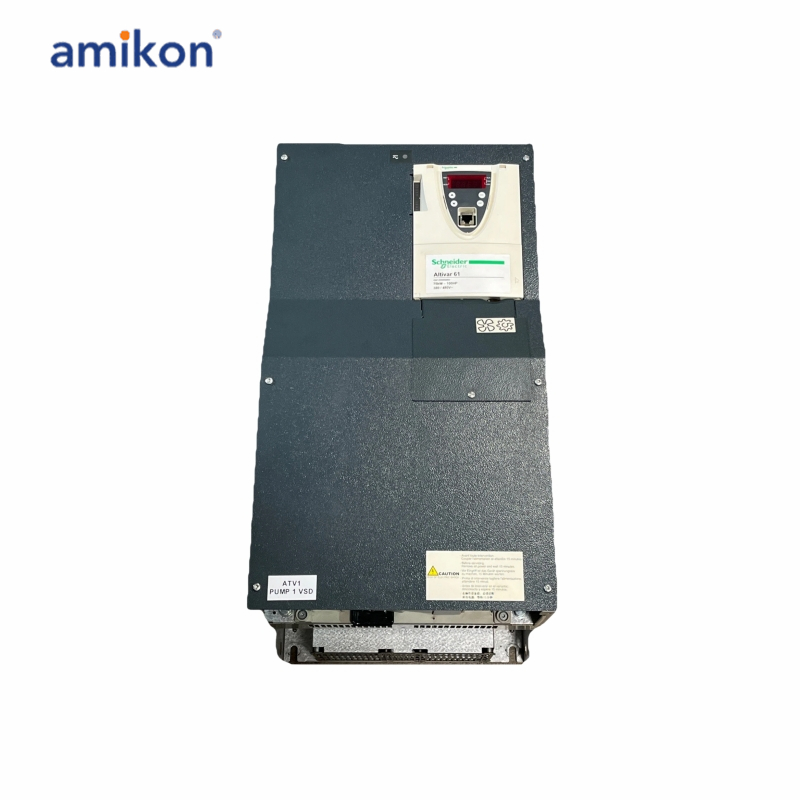

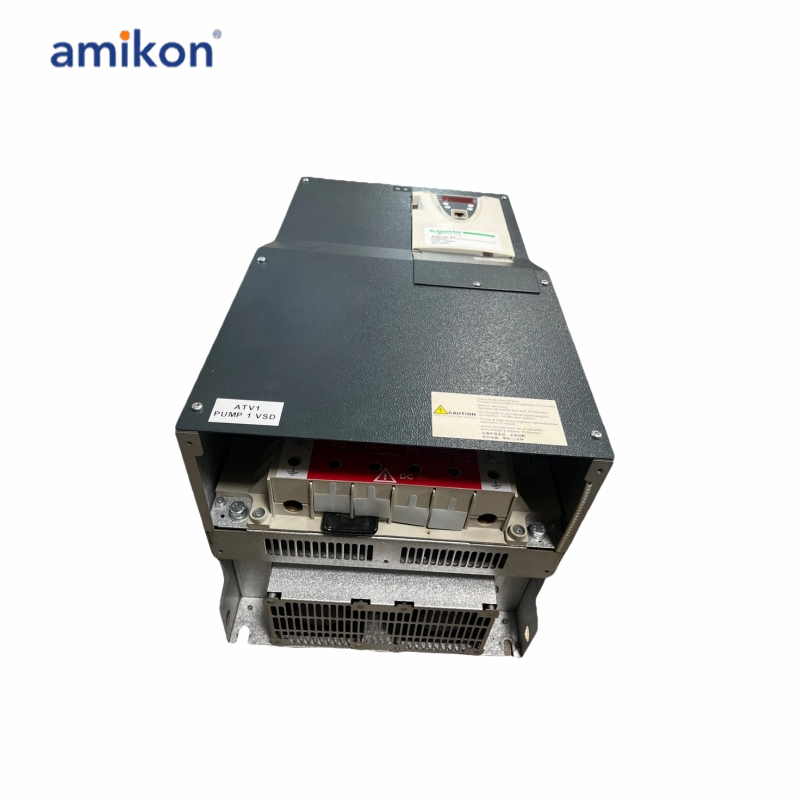

The Schneider Electric ATV61HD75N4 is a robust variable-speed drive ideal for a wide range of motor control scenarios. It is engineered to perform efficiently at a power output of 75 kW, translating to a maximum horsepower rating of 100 HP.
This drive achieves versatility in voltage, accommodating supply voltages from 380 to 480 V in a three-phase format. A key feature is its integrated EMC filter, which enhances system performance by mitigating electromagnetic disturbances. Switching frequency is highly adaptable, with a range from 1 kHz to 16 kHz. It is particularly effective in optimizing motor control dynamics at a typical nominal frequency setting of 12 kHz.

Frequently asked questions：

Q1: What is the Schneider ATV61HD75N4?
A1: It is a variable speed drive (VSD) designed for controlling the speed and torque of three-phase AC motors in industrial and HVAC applications.

Q2: What is the ATV61HD75N4 power rating of this drive?
A2: The drive has a power rating of 75 kW (100 HP), suitable for medium to large motor applications.

Q3: What is the ATV61HD75N4 maximum transient current?
A3: It can handle a maximum transient current of 94.8 A for up to 60 seconds.

Q4: What is the ATV61HD75N4 supply voltage requirement?
A4: The drive operates on a supply voltage of 380–480 V, 3-phase.

Q5: What is the ATV61HD75N4 supported supply frequency?
A5: It supports both 50 Hz and 60 Hz power systems.

Product Applications

Municipal/Water Treatment Industry
HVAC (Heating, Ventilation, and Air Conditioning System)
Petrochemical/Chemical Industry Power plant
Metallurgy / Building Materials
