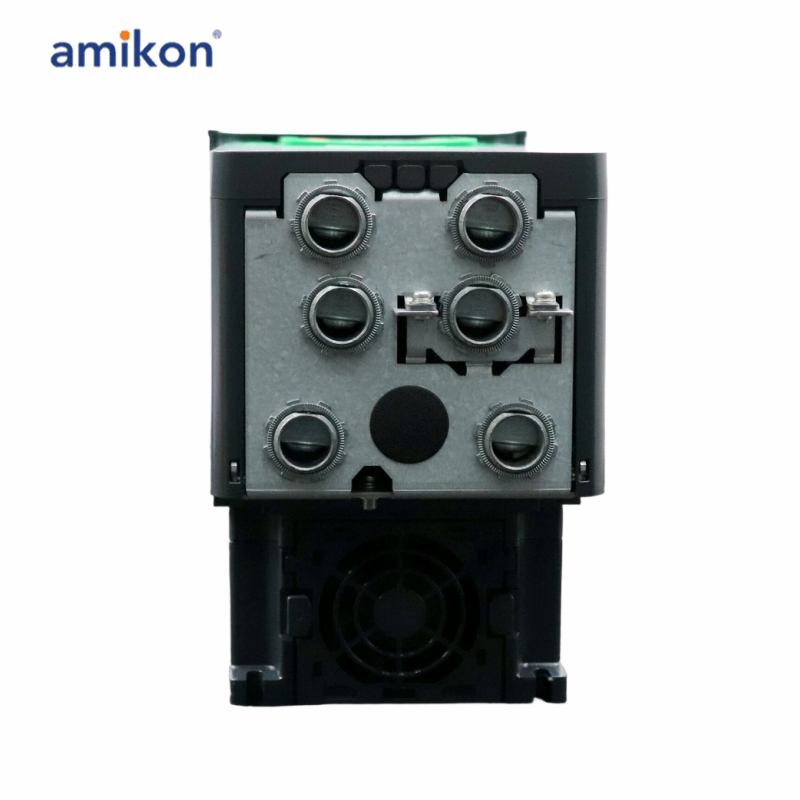

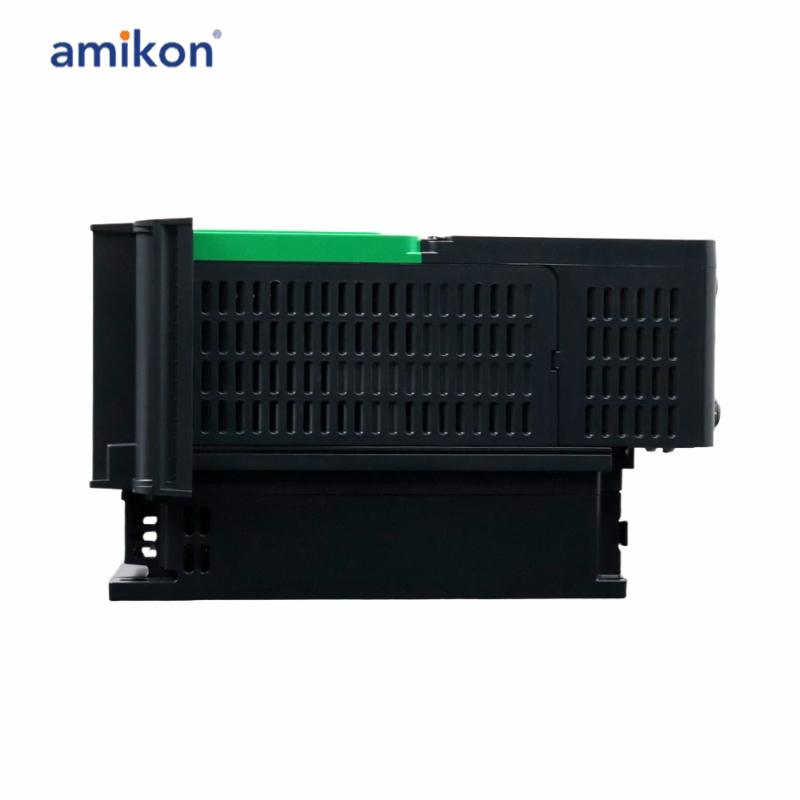

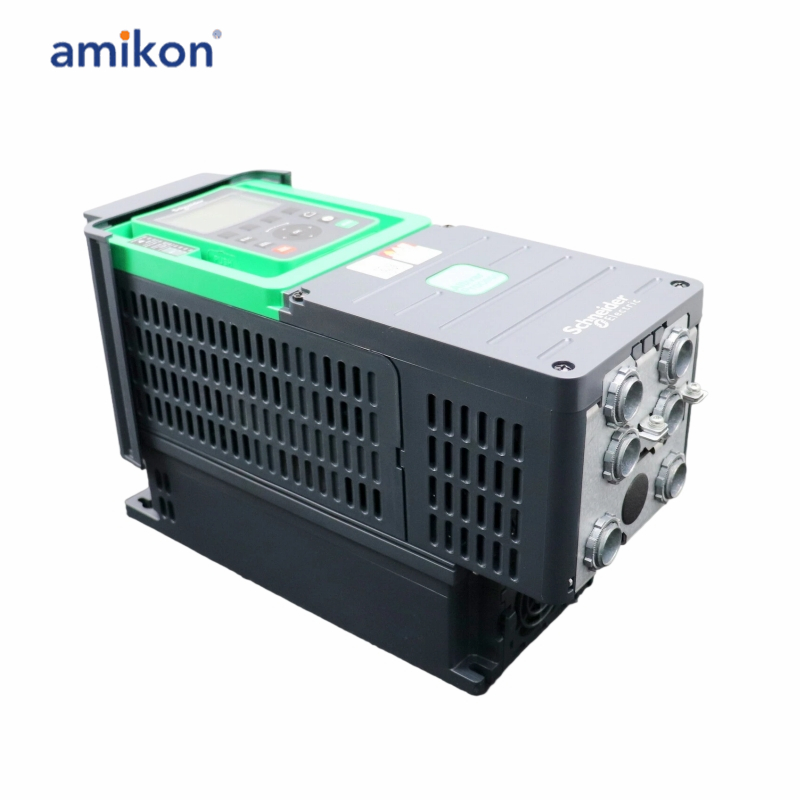

Part Number:ATV630U15N4
Manufacturer: Schneider Electric
Range of Product: Altivar Process ATV600
Device Short Name: ATV630
Mounting Mode: Wall mount
Rated Supply Voltage [Us]: 380…480 V (–15% to +10%)
Relative Symmetric Mains Voltage Tolerance: ±10%
Supply Frequency: 50/60 Hz (–5% to +5%)
Relative Symmetric Network Frequency Tolerance: ±5%
Nominal Output Current: 4.0 A
Motor Power:
1.5 kW (Normal duty)
0.75 kW (Heavy duty)
Maximum Horsepower Rating:
2 hp (Normal duty)
1 hp (Heavy duty)

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 1.5kW / 2hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.75kW / 1hp for applications requiring significant overload (up to 150%). It weighs 4.5kg and its dimensions are, 144mm wide, 350mm high, 203mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
