Product or Component Type: Variable speed drive

Device Application: Industrial application

Product Destination: Synchronous motors, Asynchronous motors

Phase: 3-phase

Mounting Mode: Wall mount

Continuous Output Current: 481 A (2.5 kHz, normal duty) / 387 A (2.5 kHz, heavy duty)

Rated Supply Voltage [Us]: 380...480 V -15... +10 %

Relative Symmetric Mains Voltage Tolerance: ±10 %

Relative Symmetric Network Frequency Tolerance: ±5 %

Nominal Output Current: 481.0 A

Data Format: 8 bits

Type of Polarization: No impedance (Modbus serial)

Number of Addresses: 1…247 (Modbus serial)

Network Frequency: 50…60 Hz

Prospective Line Isc: 50 kA

Base Load Current at High Overload: 387.0 A

Base Load Current at Low Overload: 481.0 A

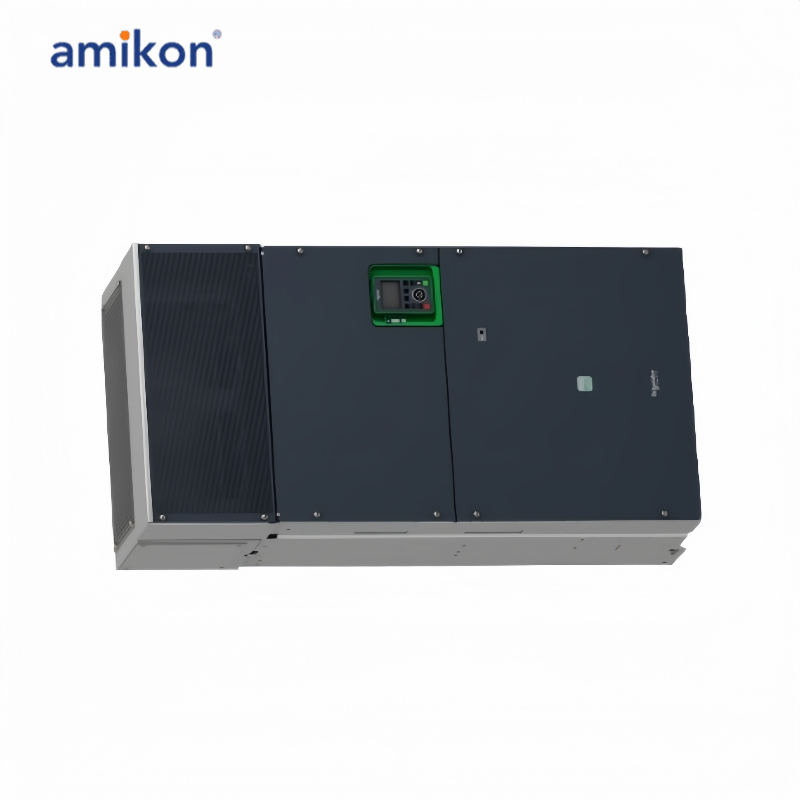

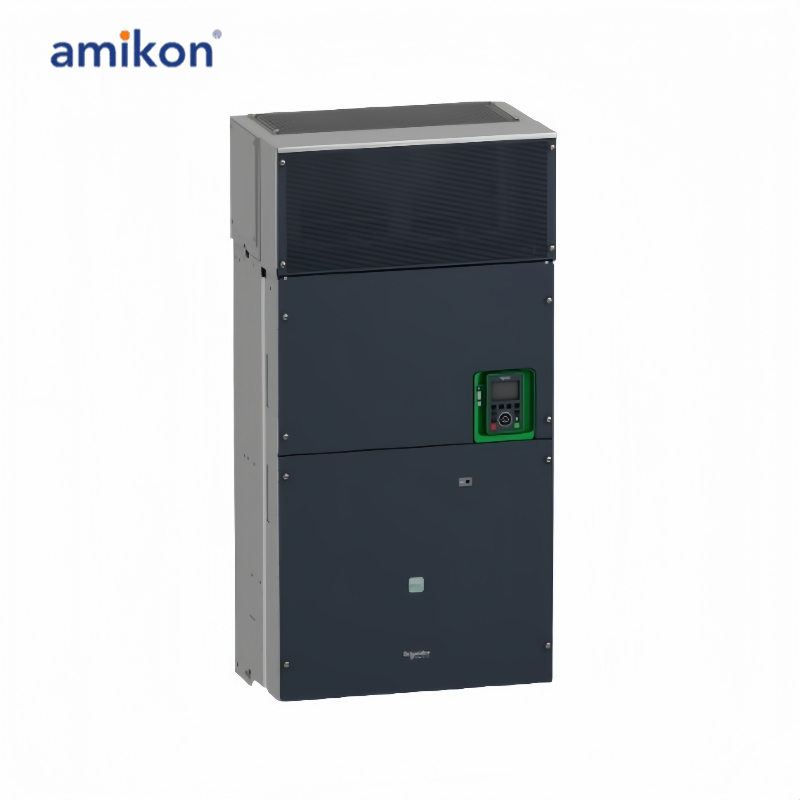

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 250kW/400hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 200kW/300hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into architectures. It is designed to be mounted in vertical position (+/- 10 °) on a wall.

sales7@amikon.cn

86-18965423501

AMKPLC

Amikon provide 12 months warranty for all the goods from us.
We have DHL,UPS,TNT,you can use your own freight forwarder for transportation.
Shipped in 3 days after payment
Original packing with cartons.
100% make sure the best quality!
