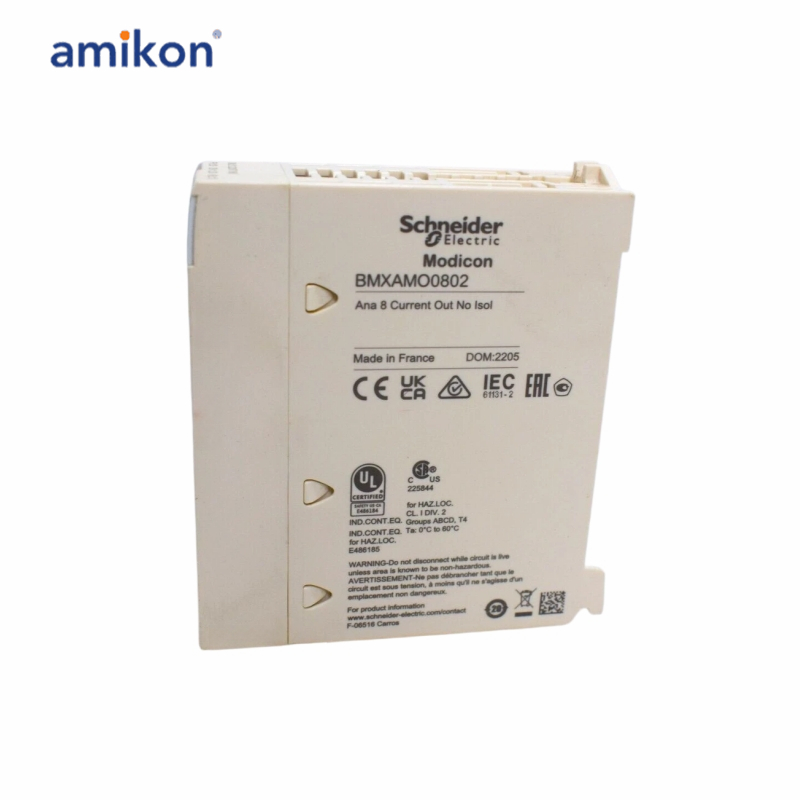

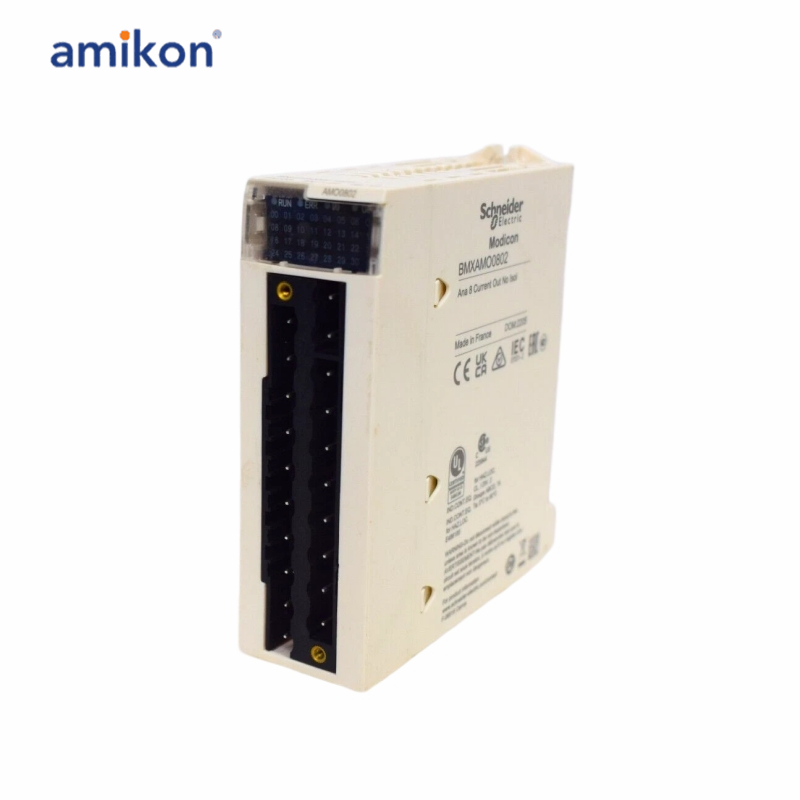

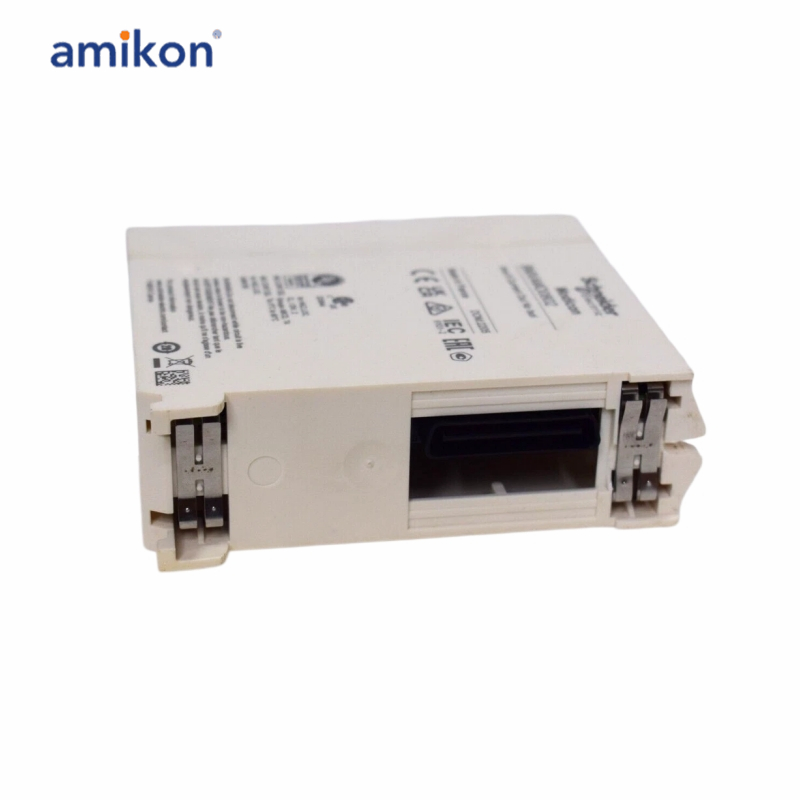

Schneider BMXAMO0802 Analog output module

Manufacturer: Schneider Electric
Product Line: Modicon X80
Part Number: BMXAMO0802
Weight: 0.38 lbs (0.17 kg)
Type: Analog Output Module
Number of Outputs: 8 Outputs
Current Outputs: Supported
Resolution: 16-Bit
Connectors: 1 Connector
Operating Temperature: 0 to 60 °C
Maximum Operating Humidity: 80% RH without condensation
Storage Temperature: 0 to 60 °C
Maximum Storage Humidity: 80% RH without condensation
Maximum Operating Altitude: 1000 m above sea level
Maximum Storage Altitude: 1000 m above sea level

The Modicon X80 series includes the BMXAMO0802, an analog output module featuring eight separate outputs. Each output can manage current signals and is capable of 16-bit resolution, providing precise control of output values. This unit is designed for operation within a designated temperature range between 0 to 60 degrees Celsius, making it suitable for various applications in a moderate climate.
With a maximum operating humidity of 80% relative humidity, the module prevents condensation buildup, protecting its internal components from moisture-related damage. The storage conditions mirror the operational parameters, allowing for safe storage within the same temperature and humidity ceilings. The BMXAMO0802 can also be installed at altitudes up to 1000 meters above sea level, ensuring functionality in various geographical settings. Additionally, its IP20 rating indicates protection against solid foreign objects larger than 12 mm, which is ideal for environments without corrosive chemicals. The module connects via a single connector and is intended for use in clean indoor settings, ensuring reliability and efficiency.

Frequently asked questions：

Q1: What is the BMXAMO0802?
A: The BMXAMO0802 is an analog output module from Schneider Electric, designed for use in Modicon M340 PLC systems to control actuators and devices requiring precise analog signals.
Q2: How many outputs does it have?
A: The BMXAMO0802 module has 8 analog outputs.
Q3: Does it support current outputs?
A: Yes, the BMXAMO0802 module supports current output signals.
Q4: What is the BMXAMO0802 resolution of the outputs?
A: The BMXAMO0802 outputs provide 16-bit resolution for high-accuracy control.
