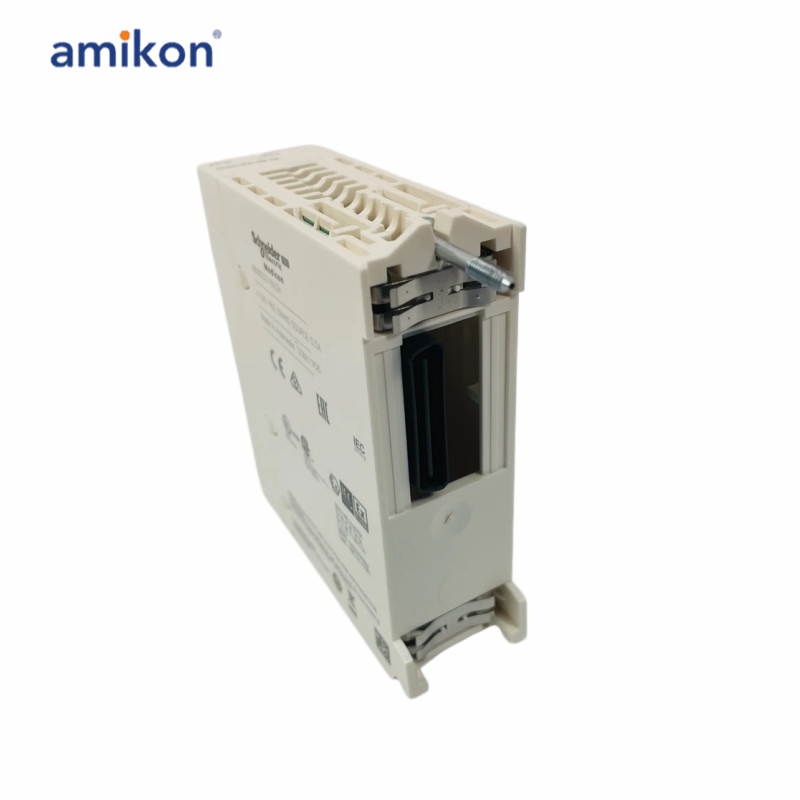

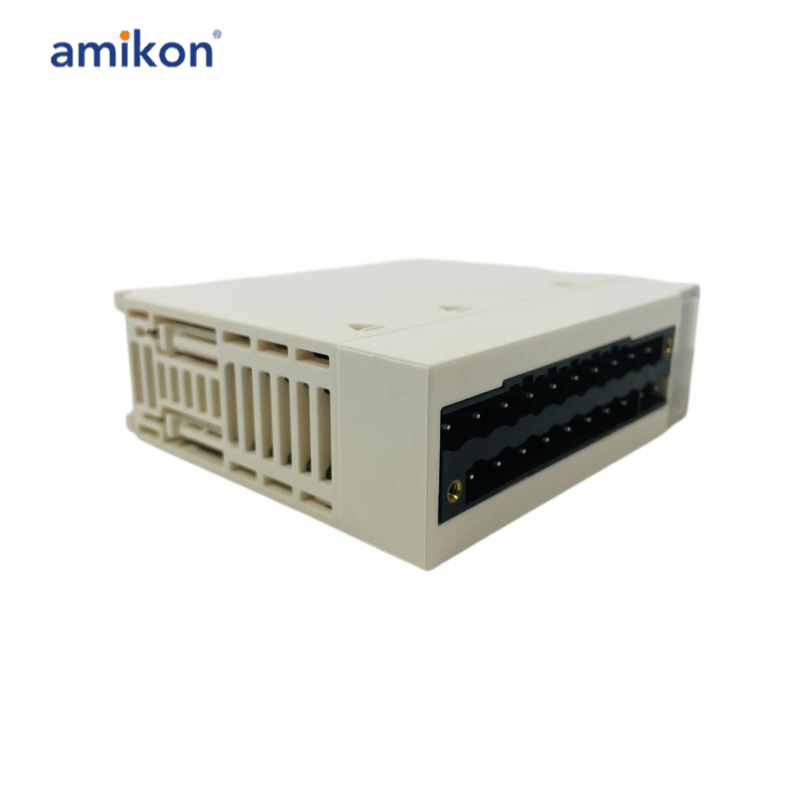

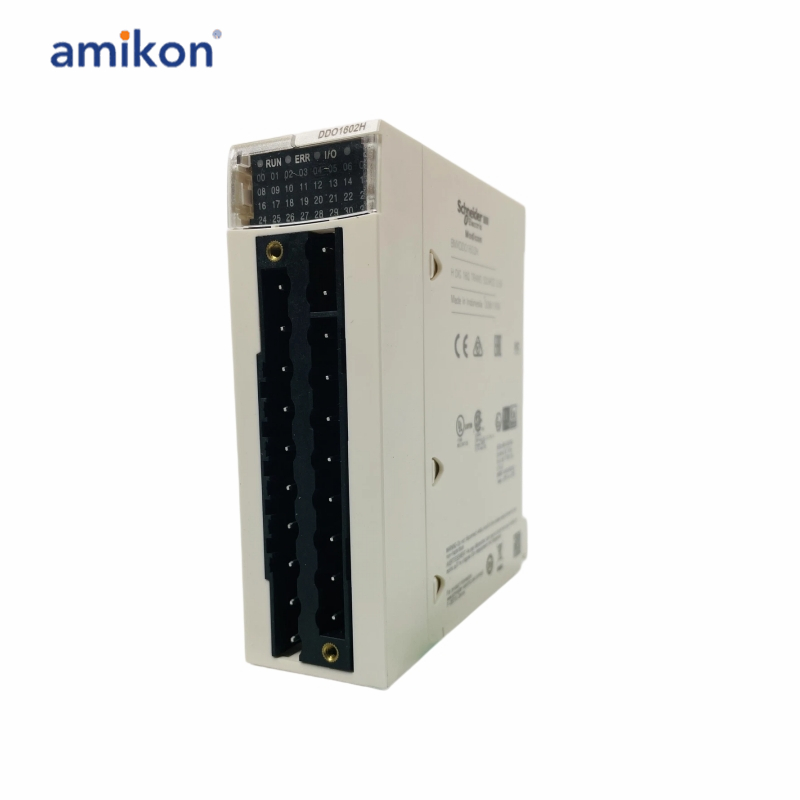

Schneider BMXDDO1602 Discrete Output Module

Manufacturer: Schneider Electric
Product Line: Modicon
Part Number: BMXDDO1602
Weight: 0.31 lbs (0.14 kg)
Description of Module: Output Module
Description: Discrete Output Module
Output Type: Solid State
Output Logic: Positive
Output Voltage: 24 VDC (19 to 30 VDC)
Discrete Output Current: 0.5 A
Current per Channel: 0.625 A
Current per Module: ≤ 10 A
Leakage Current: ≤ 0.5 mA at State 0
Residual Voltage: 1.2 V at State 1
Insulation Resistance: > 10 MΩ at 500 V DC
Power Dissipation: ≤ 4 W
Response Time on Output: 1.2 ms
Typical Current Consumption: 100 mA at 3.3 V DC
IP Degree of Protection: IP20

The BMXDDO1602 from Schneider Electric serves as a versatile output module within the Modicon series. It operates as a discrete output module, specializing in solid state output management. Designed for a voltage supply of 24 VDC, it accepts an input range of 19 to 30 VDC, thus expanding its applicability in various systems. Each discrete output can handle a current of 0.5 A, while individual channels are rated for 0.625 A. Overall, the module supports a maximum current load of 10 A across all channels.
Leakage current for this module is capped at 0.5 mA in the off state, ensuring minimal energy loss. Additionally, a residual voltage of 1.2 V can be observed in the active state, indicating effective performance. Insulation resistance exceeds 10 MOhm at 500 V DC, which is important for maintaining signal integrity over time. The module has a power dissipation rate of no more than 4 W, keeping energy consumption low.

Frequently asked questions：

Q1: What is the BMXDDO1602?
A: The BMXDDO1602 is a discrete output module from Schneider Electric, designed for use with Modicon M340 PLC systems to control digital field devices.
Q2: What is the BMXDDO1602 output voltage?
A: The BMXDDO1602 module operates at 24 VDC, with an acceptable range of 19 to 30 VDC.
Q3: What is the BMXDDO1602 discrete output current per channel?
A: Each channel supports a current of 0.5 A, with a maximum of 0.625 A per channel.
