Product Specifications

Part Number	MICROLOGIC 6.0 E
Network Type	AC
Network Frequency	50/60 Hz
Thermal Memory	20 min
Short-time Protection Pick-up Adjustment Type (Isd)	Adjustable, 9 settings
Short-time Protection Pick-up Adjustment Range (Isd)	1.5 ~ 10 × Ir
Short-time Protection Delay Adjustment Type (tsd)	Adjustable
Short-time Protection Delay Adjustment Range (tsd)	0 ~ 0.4 s (I²t = Off)
Short-time Protection Delay Adjustment Range (tsd)	0.1 ~ 0.4 s (I²t = On)
Instantaneous Protection Pick-up Adjustment Type (Ii)	Adjustable, 9 settings
Instantaneous Protection Pick-up Adjustment Range (Ii)	2 ~ 15 × In / Off
Ground-fault Protection Pick-up Adjustment Type (Ig)	Adjustable, 9 settings
Operating Ambient Air Temperature	-25 ~ 70 °C
Storage Ambient Air Temperature	-40 ~ 85 °C

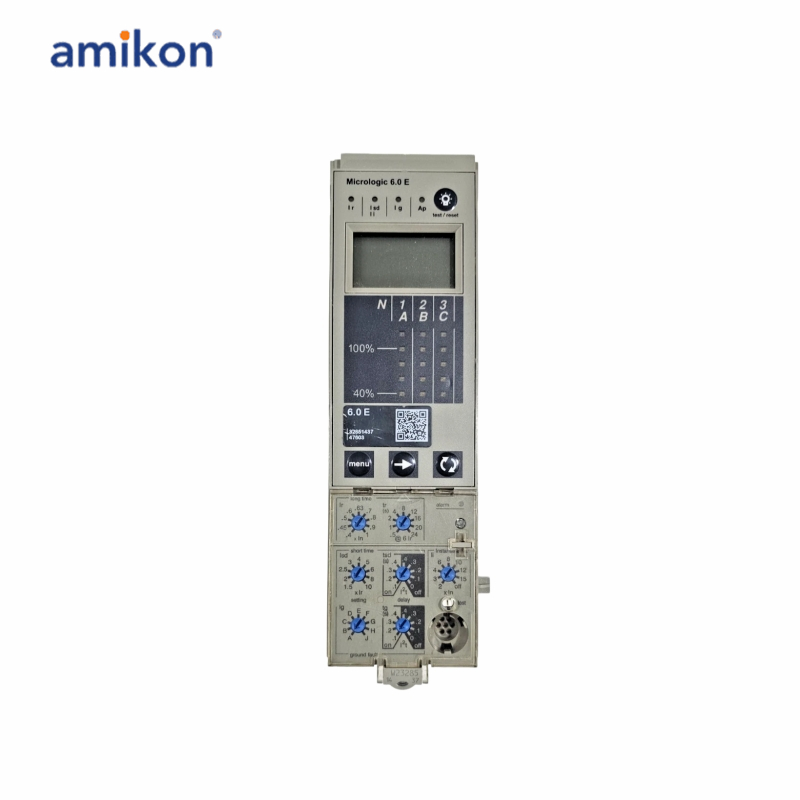

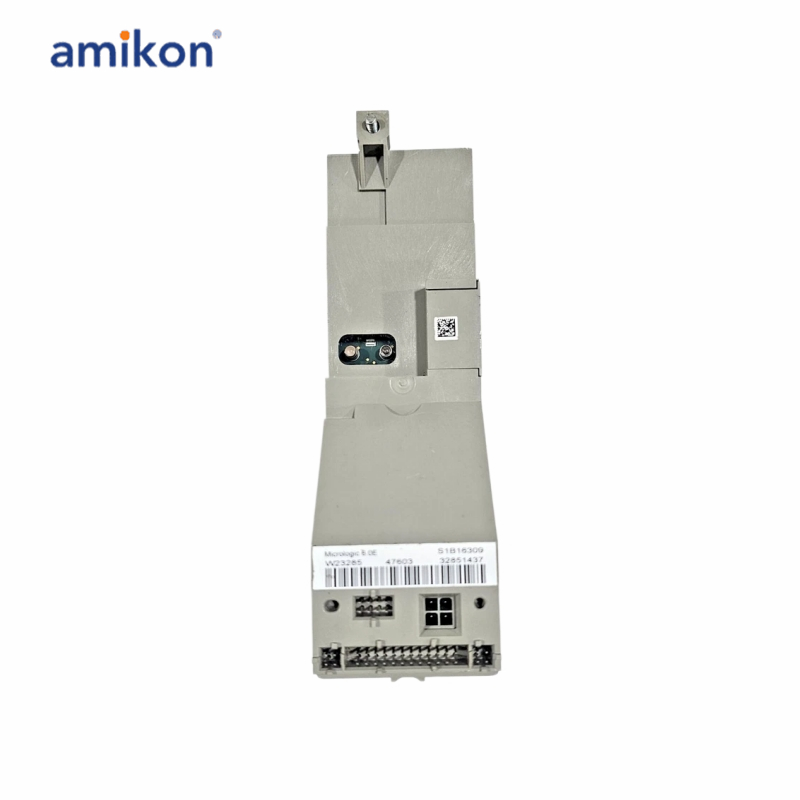

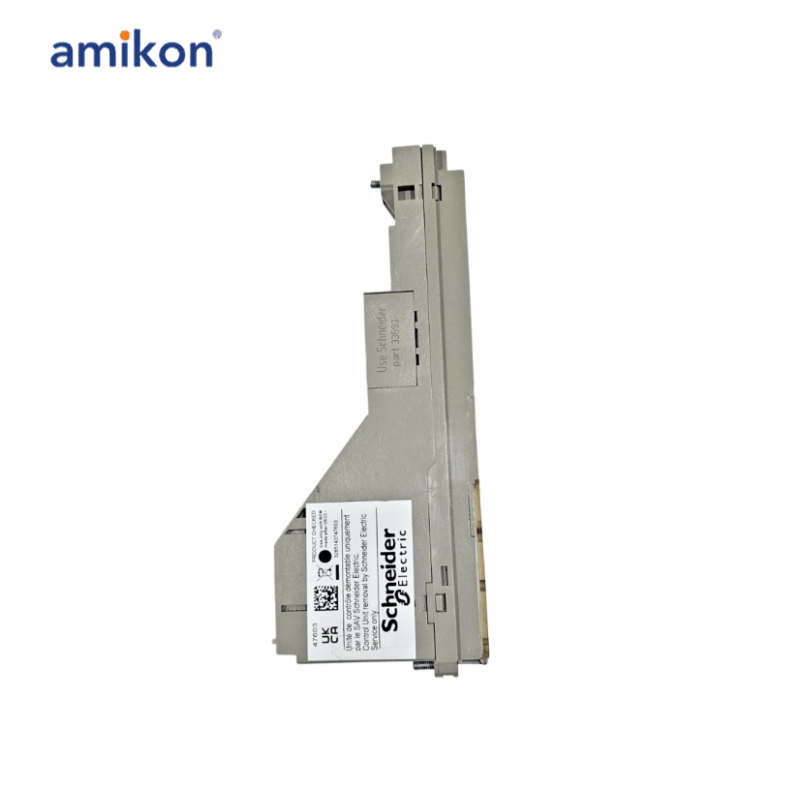

Micrologic 6.0E (Energy meter) is an electronic control unit used on Masterpact NW 08 to 63 drawout circuit breakers. This control unit has a selective and earth fault protection (LSIG) and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. Micrologic 6.0E offers an adjustable earth fault protection. Micrologic 6.0E indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 6.0E is equipped with a digital LCD screen that displays the active energy with 2% accuracy. This control unit can be associated with drawout Masterpact NW basic frame.

Frequently asked questions：

Q1: What is the SCHNEIDER MICROLOGIC 6.0 E Control Unit?
A1: It is an electronic control unit used in Schneider Electric circuit breakers for advanced protection, monitoring, and fault management functions in electrical distribution systems.

Q2: What is the MICROLOGIC 6.0 E instantaneous protection pick-up adjustment range?
A2: The MICROLOGIC 6.0 E instantaneous protection pick-up adjustment range (Ii) is adjustable from 2 to 15 × In, with an OFF option available.

Q3: What type of ground-fault protection adjustment is supported?
A3: The ground-fault protection pick-up adjustment type (Ig) is adjustable with 9 selectable settings.

Q4: What is the MICROLOGIC 6.0 E operating ambient temperature range?
A4: The MICROLOGIC 6.0 E operating ambient air temperature range is -25°C to +70°C.

Q5: What is the MICROLOGIC 6.0 E storage temperature range?
A5: The MICROLOGIC 6.0 E storage ambient air temperature range is -40°C to +85°C.

Product Applications

Mining and Metallurgy
Oil and Natural Gas
Automobile Manufacturing
