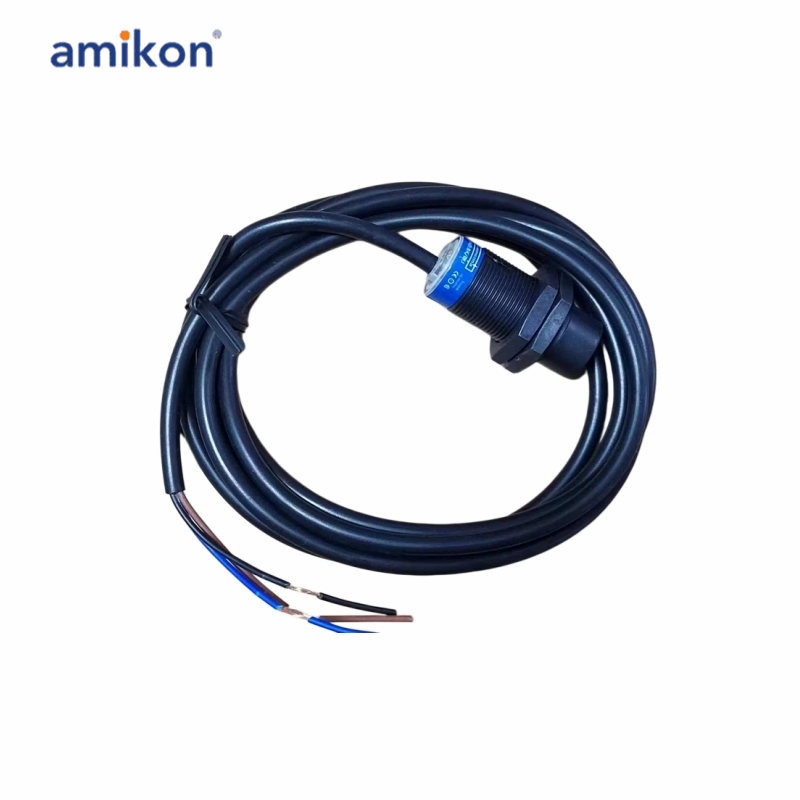

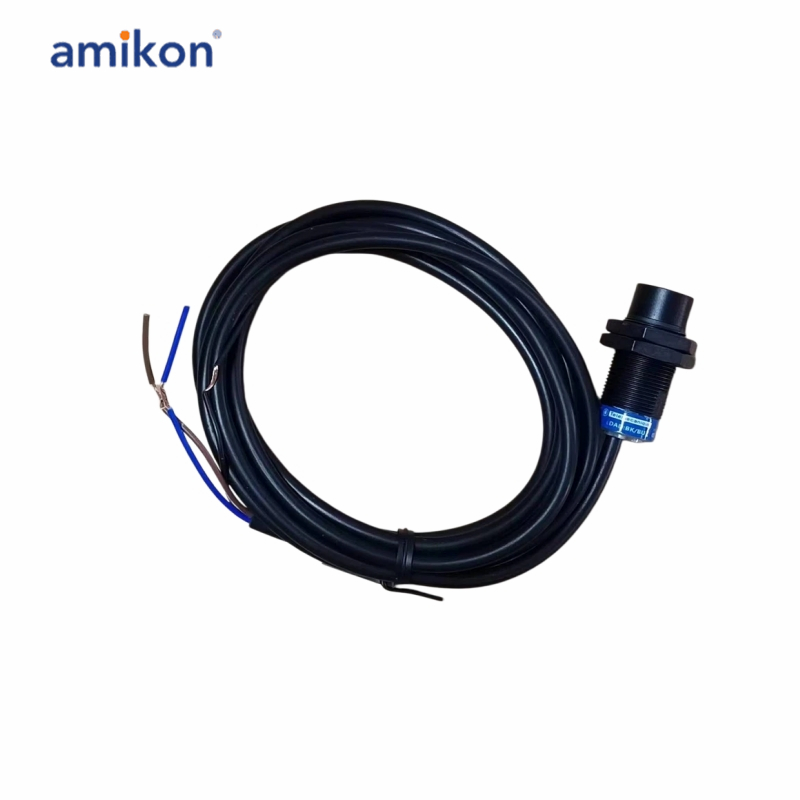

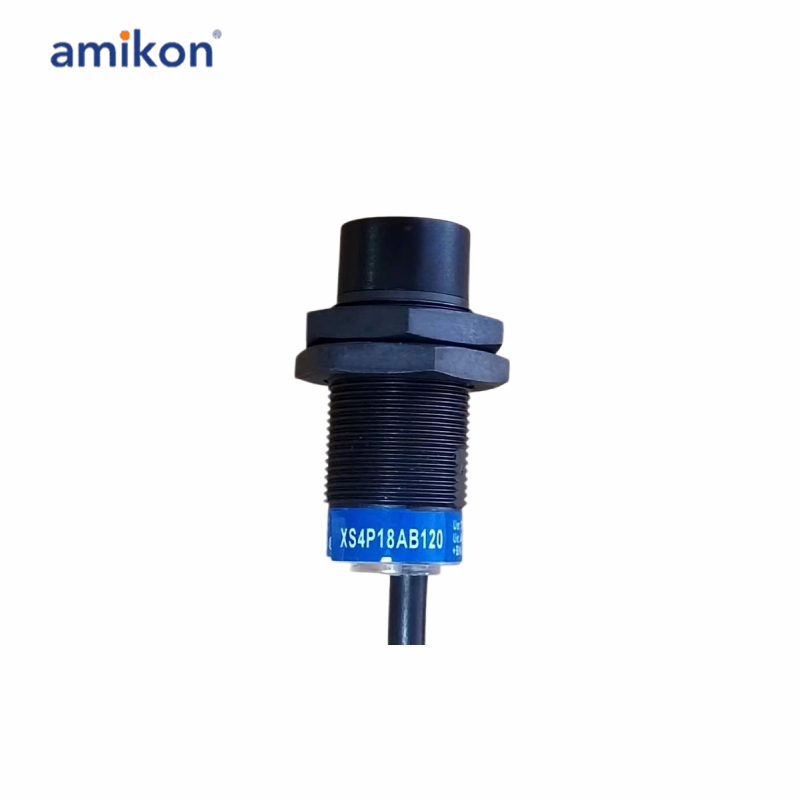

Schneider XS4P18AB120 Inductive Proximity Sensor

Product Specifications

The XS4P18AB120 model from Schneider Electric is a highly efficient inductive proximity sensor designed for robust performance in demanding environments. This sensor operates using a 24 VDC power supply and leverages a PNP Normally Open (NO) output type to trigger actions based on detection. Its cylindrical body style measures 18 mm in diameter, providing ease of installation in various applications.
Constructed from nickel-plated brass, the housing offers excellent resistance to corrosion and environmental factors, achieving an IP67 protection rating. This capability allows the sensor to perform reliably in challenging conditions. The operating temperature range extends from -25°C to +70°C, ensuring functionality across a wide variety of settings.
The XS4P18AB120 works with an effective sensing distance of 8 mm, making it suitable for non-contact object detection. It incorporates an M12 connector for simple electrical connections. Additionally, the sensor boasts an impressive response time of less than 1 millisecond, facilitating quick reaction times in dynamic applications. With a low current draw of 20 mA, this sensor is efficient for continuous operation, and it is designed for flush mounting to fit into compact spaces. Weighing just 0.17 kg, it integrates seamlessly into numerous setups.

Frequently asked questions：

Q1: What is the Schneider XS4P18AB120 Inductive Proximity Sensor used for?
A1: The Schneider Electric XS4P18AB120 Inductive Proximity Sensor is designed for non-contact detection of metallic objects in industrial systems.

Q2: What is the operating temperature range of the XS4P18AB120 sensor?
A2: The XS4P18AB120 sensor operates within a temperature range of -25°C to +70°C (-13°F to +158°F), making it suitable for a variety of industrial environments.

Q3: What type of connection interface does the XS4P18AB120 sensor use?
A3: The XS4P18AB120 is equipped with an M12 connector, providing a secure and reliable connection for quick installation and maintenance.

Q4: What is the response time of the XS4P18AB120 sensor?
A4: The XS4P18AB120 sensor features a fast response time of less than 1 ms, enabling accurate detection in high-speed systems.

Q5: What is the current consumption of the XS4P18AB120 sensor?
A5: The XS4P18AB120 sensor has a low current consumption of 20 mA, contributing to efficient system operation.

Product Applications

Packaging and Material Handling
Food and Beverage Industry
Machine Tools and Assembly Lines
Automotive and Electronics Manufacturing
