Product Specifications

Part Number	DL35-B15552
Resolution	100 µm
Repeatability	≥ 0.5 mm
Measurement accuracy	Typ. ± 15 mm
Response time	2.5 ms ~ 96.5 ms
Response time	Optional: 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
Switching frequency	333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
Power Supply	12 to 30 V DC
Power consumption	≤ 1.7 W
Ripple	≤ 5 Vpp
Initialization time	≤ 500 ms
Warm-up time	≤ 20 min
Operating temperature	-30 °C ~ +55 °C (Supply voltage ≤ 24 V)
Storage temperature	-40 °C ~ +75 °C
Max. relative humidity	≤ 95% (non-condensing)
Typical ambient light immunity	40 klx

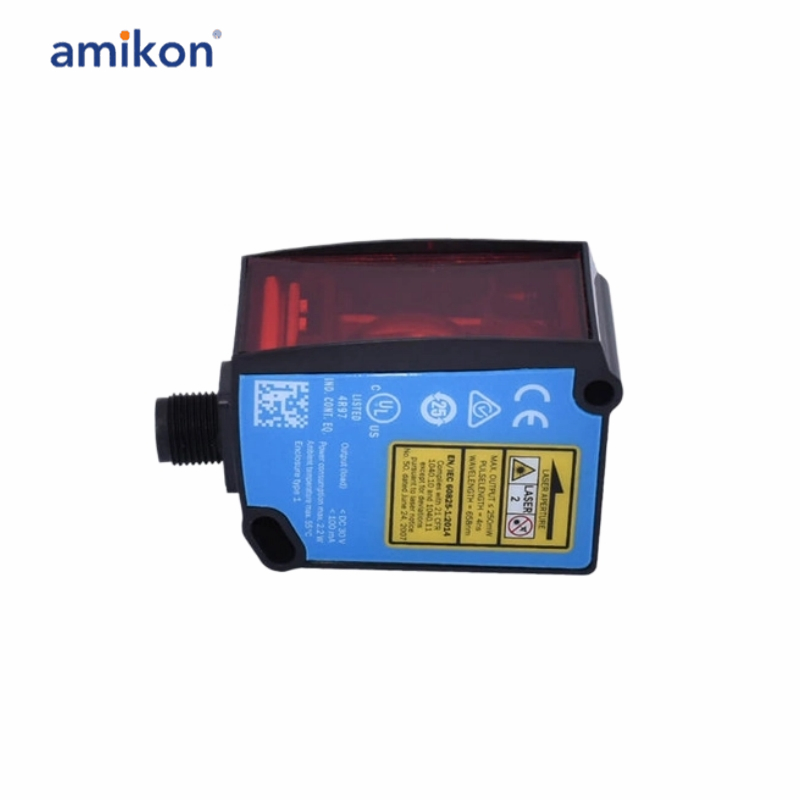

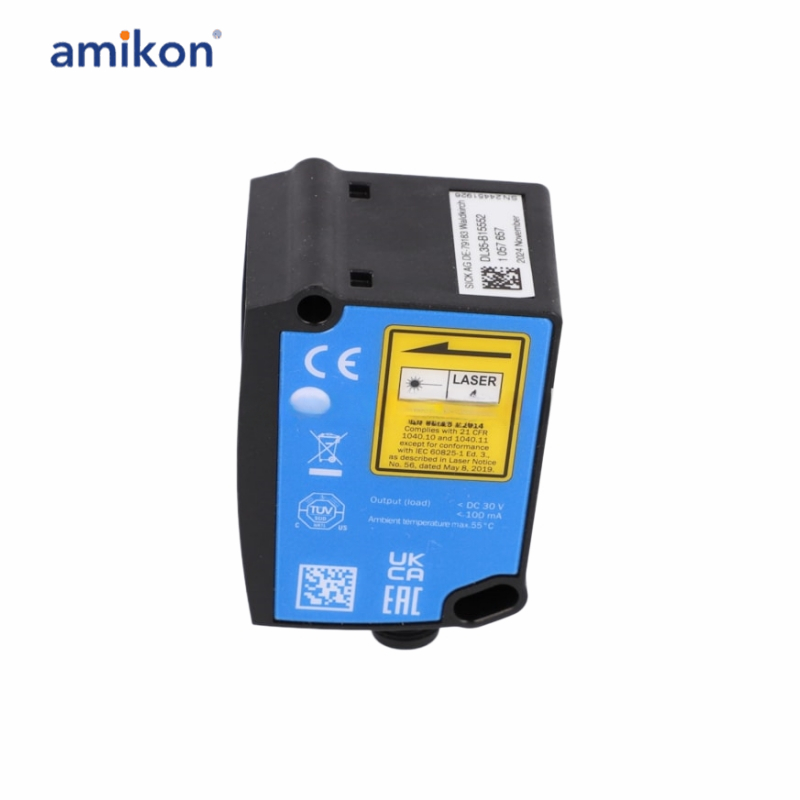

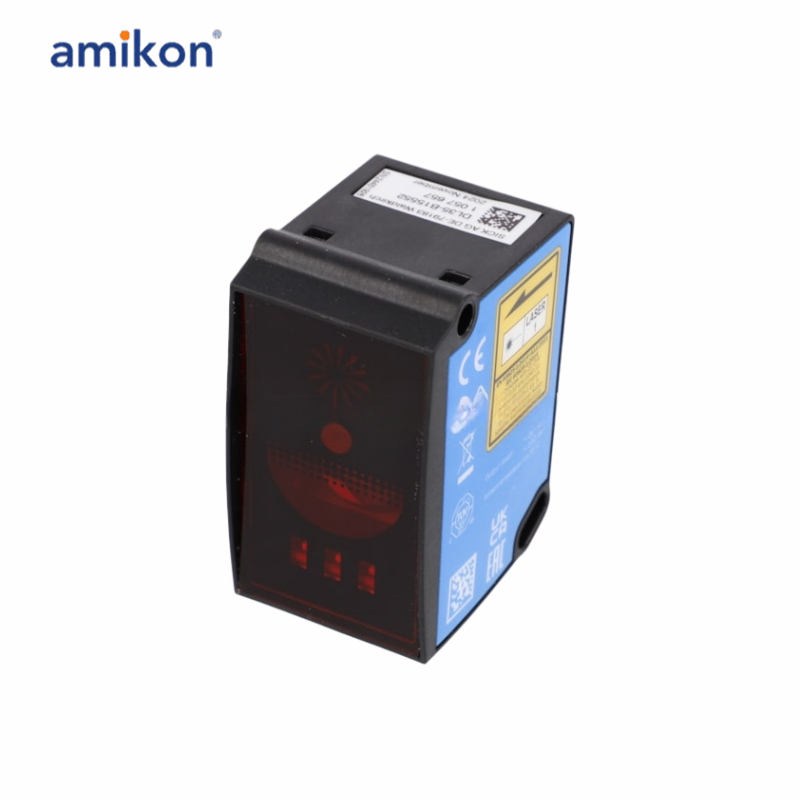

DL35-B15552 is a high-performance laser distance sensor manufactured by SICK AG. It belongs to the Dx35 series of Time-of-Flight (ToF) sensors and is designed for precise long-range distance measurement in industrial , material handling, logistics, and machine control applications.
The sensor uses visible red Class 1 laser technology and supports measurement distances from 200 mm up to 35,000 mm when used with “diamond grade” reflective tape. It provides high-resolution measurement performance, fast response times, IO-Link communication, configurable digital and analog outputs, and robust IP65/IP67 protection for harsh industrial environments.

Frequently asked questions：

Q1: What is the SICK DL35-B15552 used for?
A1: SICK DL35-B15552 is a distance sensor used for accurate distance measurement, position detection, and industrial control applications.

Q2: What is the resolution of the DL35-B15552 distance sensor?
A2: The DL35-B15552 sensor provides a high resolution of 100 μm for precise distance measurement.

Q3: What is the repeatability specification of the DL35-B15552 sensor?
A3: The DL35-B15552 repeatability is ≥ 0.5 mm, ensuring stable and reliable measurement performance.

Q4: What is the response time range of the DL35-B15552?
A4: The DL35-B15552 response time ranges from 2.5 ms to 96.5 ms, depending on the operating configuration and application requirements.

Product Applications

Warehousing and Intralogistics
Crane and Port Machinery
Automotive Manufacturing
Heavy Industry and Security Monitoring
