Product Specifications

Product Model	3TF5422-0XM0
Product Type	Contactor
Manufacturer	Siemens
Contactor Size	Size 10
Number of Poles	3-Pole
Phase Type	3-Phase
Rated Operational Current	250 A
Rated Insulation Voltage	Up to 1000 V AC
AC-3 Motor Rating (380/400 V)	132 kW
Motor Power (500 V)	178 kW
Motor Power (690 V)	235 kW
Auxiliary Contacts	2NO + 2NC

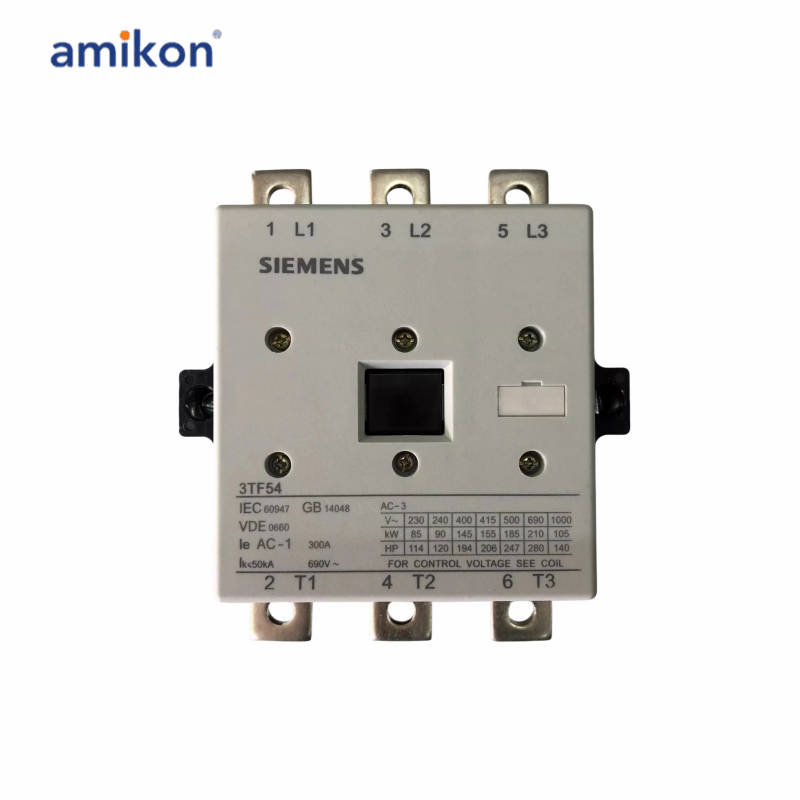

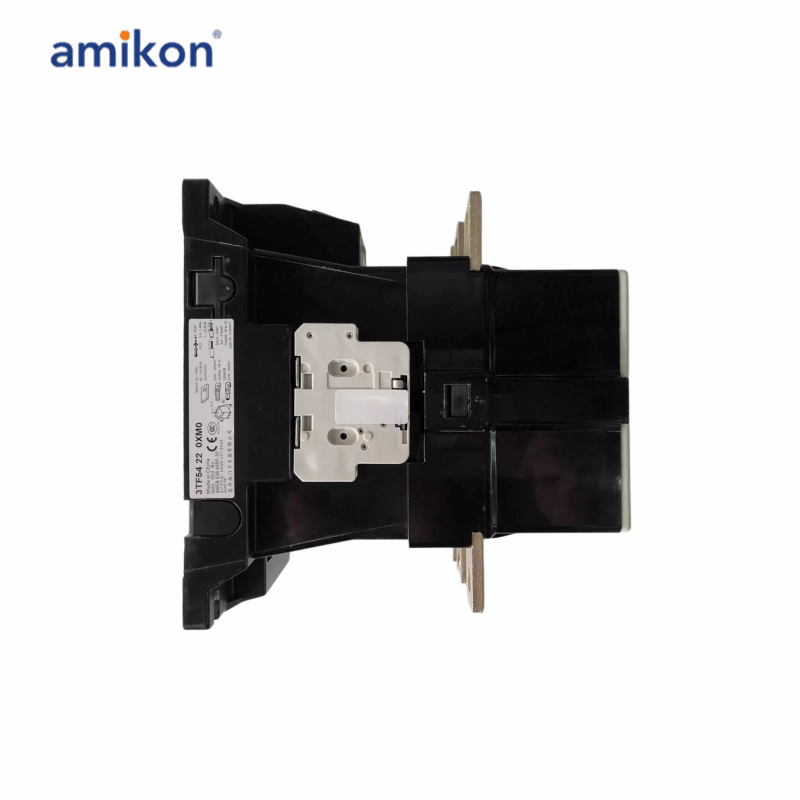

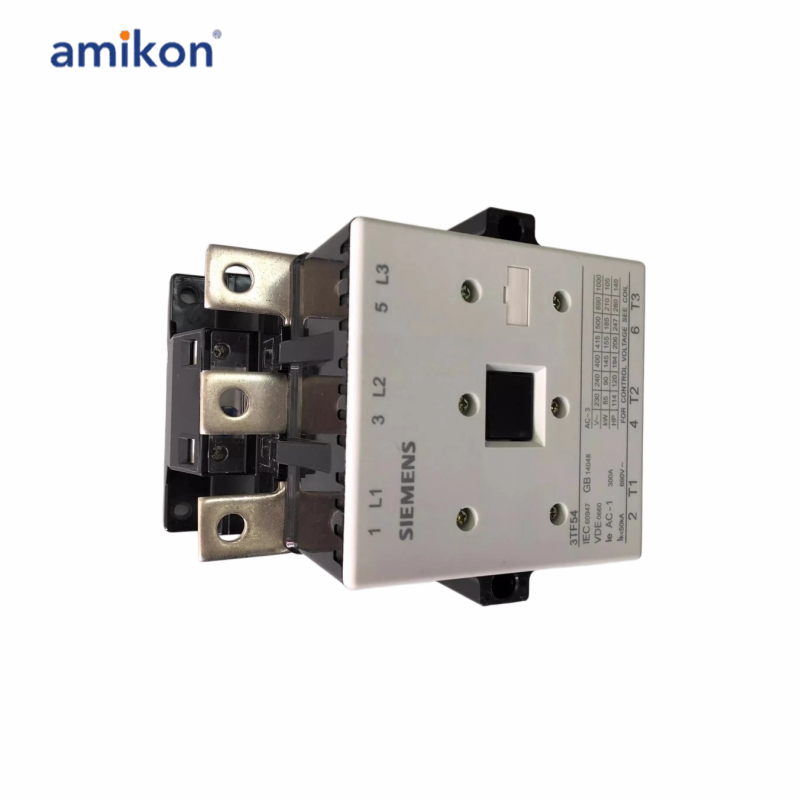

3TF5422-0XM0 is a heavy-duty industrial AC contactor manufactured by Siemens for motor control and power switching applications. It belongs to the Siemens 3TF series World Series contactors and is designed for reliable switching of three-phase motors and industrial loads in demanding environments.
The 3TF5422-0XM0 is a Size 10, 3-pole magnetic contactor rated for AC-3 motor duty applications up to 132 kW at 400 V. The contactor supports high-current switching capability with a rated operational current of 250 A and operating voltages up to 1000 V AC.

Frequently asked questions：

Q1: What is the Siemens 3TF5422-0XM0 Contactor used for?
A1:It is a 3-pole industrial electromagnetic contactor used for switching motors and power circuits in systems such as pumps, compressors, HVAC equipment, and industrial machinery.

Q2: What is the 3TF5422-0XM0 rated operational current of this contactor?
A2:The 3TF5422-0XM0 rated operational current for motor control applications is approximately 16 A (AC-3 duty).

Q3: Is the 250 A rating the working current?
A3:No. The 250 A value is not the actual operating current for this model. It is related to broader series/frame classification or other variants within the 3TF family. The real working AC-3 current for this unit is around 16 A.

Q4: What is the 3TF5422-0XM0 rated insulation voltage?
A4:The 3TF5422-0XM0 contactor has a rated insulation voltage of up to 1000 V AC, meaning it can safely withstand high voltage levels in industrial environments.

Product Applications

Heavy Industry and Mining
Metallurgy and Water Treatment
Power and Distribution Systems
