Product Specifications

Manufacturer	Siemens
Model Number	6DD1641-0AC0
Product Type	Binary Input/Output Module
Series	SIMADYN D
Digital Inputs	32 channels
Digital Outputs	32 channels
Signal Type	24 V DC binary signals
Connectors	2 × 40-pin connectors

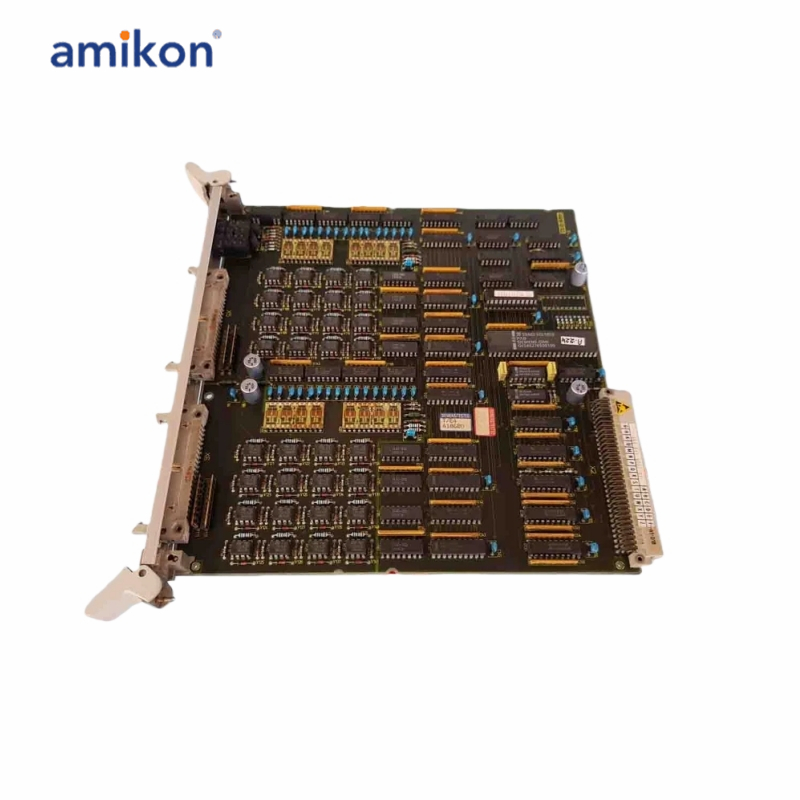

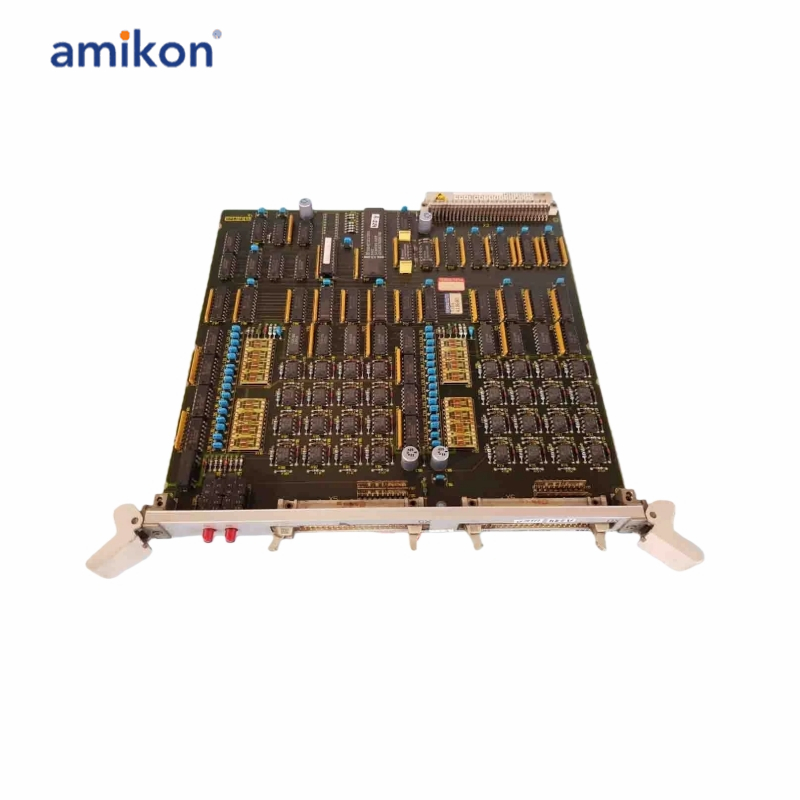

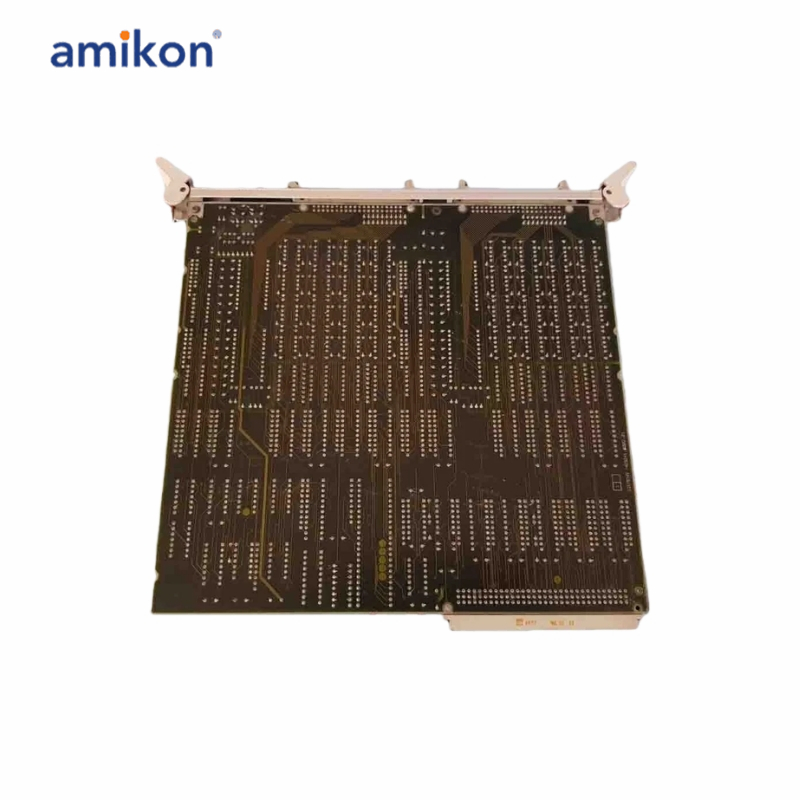

The Siemens 6DD1641-0AC0 I/O Module is used in the SIMADYN D system for the input and output of binary information. The two 40-way ribbon cable connectors X5 and X6 (with equal priority) on the frontplate are each organized in groups of 4 x 10 pins, each ten pins being organized in eight bits of information and an external power supply P24 and ground. The four units of a connector are divided into two units for input and two for output.
The S1 and S2 pushbuttons with integral LEDs also located on the frontplate are used for the visual indication of output inhibit signals (LED function) and/or for the manual resetting of output inhibit signals (pushbutton function). Pushbutton S1 is assigned to connector X5 and pushbutton S2 to connector X6.
Output inhibits occur at output bits that are overloaded. The pushbutton LEDs can only be used to determine which overloaded output bit(s) is(are) assigned to which connector.
The inputs and outputs have a rated voltage of 24 V. The inputs load the source with 5 mA and the outputs supply 50 mA.

Frequently asked questions：

Q1: What is the Siemens 6DD1641-0AC0 Binary Input/Output Module?
A1: It is an industrial I/O module used in Siemens control systems to handle digital signal processing, providing both input and output capabilities for applications.

Q2: How many digital inputs does it support?
A2: The 6DD1641-0AC0 module supports 32 digital input channels for receiving 24 V DC binary signals from field devices.

Q3: How 6DD1641-0AC0 many digital outputs does it provide?
A3: It provides 32 digital output channels for controlling external devices such as relays, actuators, and indicators.

Q4: What type of signals does it handle?
A4: It processes 24 V DC binary signals, which are standard in industrial systems.

Q5: What connectors are used on this module?
A5: The 6DD1641-0AC0 module is equipped with 2 × 40-pin connectors for secure and organized wiring.

Product Applications

Iron and Steel Metallurgy
Paper Industry
Power System
Petrochemicals
