Product Specifications

Product Model	6EP1333-4BA00
Rated Supply Voltage	120 V / 230 V
Input Voltage Range 1	AC 85 ~ 132 V
Input Voltage Range 2	AC 170 ~ 264 V
Overvoltage Overload Capacity	2.3 × rated input voltage, duration 1.3 ms
Mains Buffering Operating Condition	Vin = 93 V / 187 V
Nominal Line Frequency	50 / 60 Hz
Allowable Line Frequency Range	45 ~ 65 Hz
Rated DC Output Voltage	24 V
Typical Output Active Power	192 W
Transportation Temperature Range	-40°C ~ +85°C
Storage Temperature Range	-40°C ~ +85°C

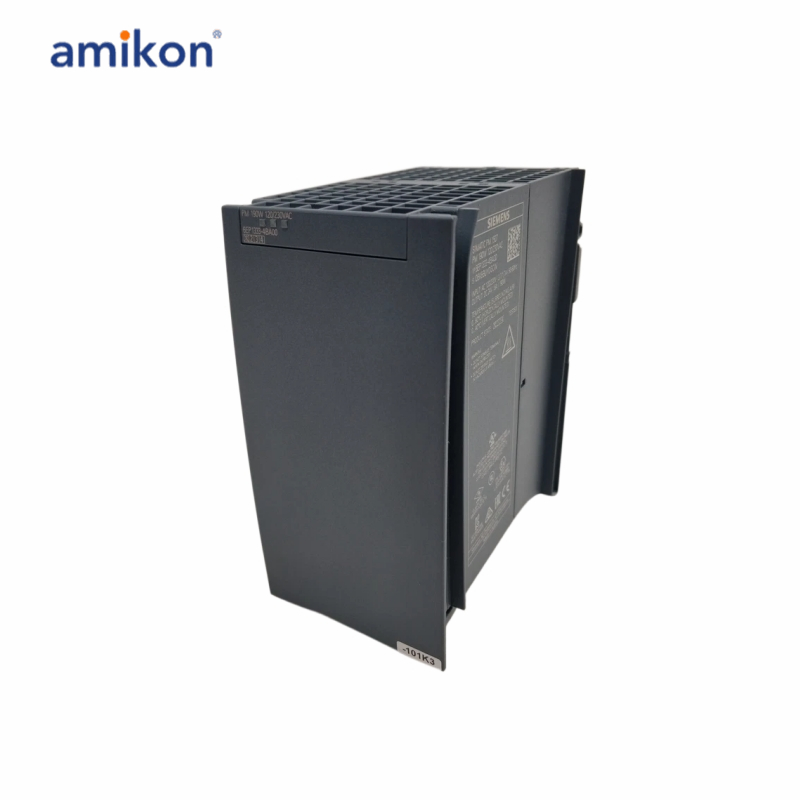

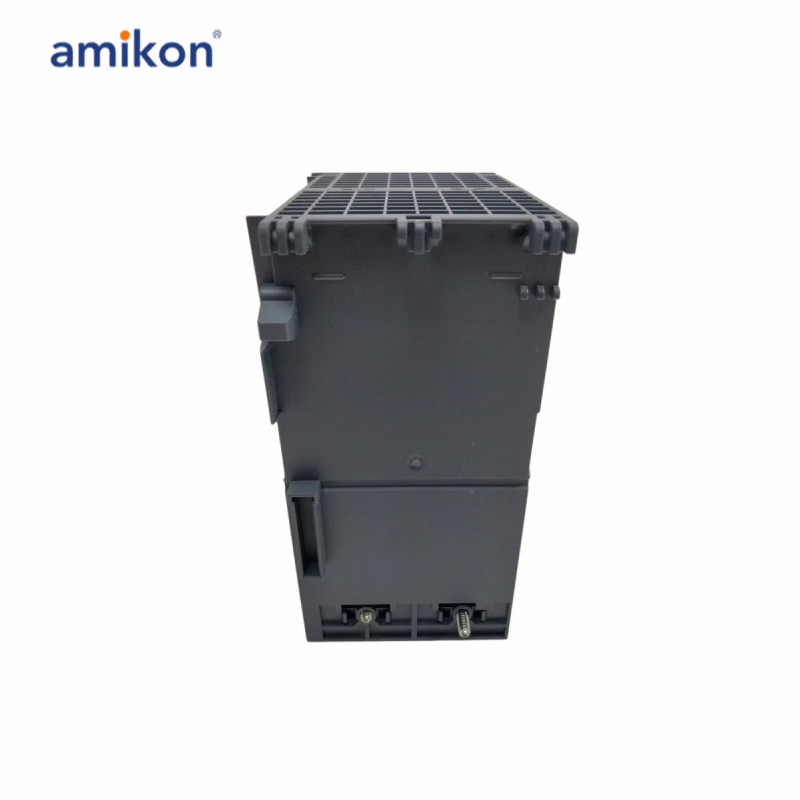

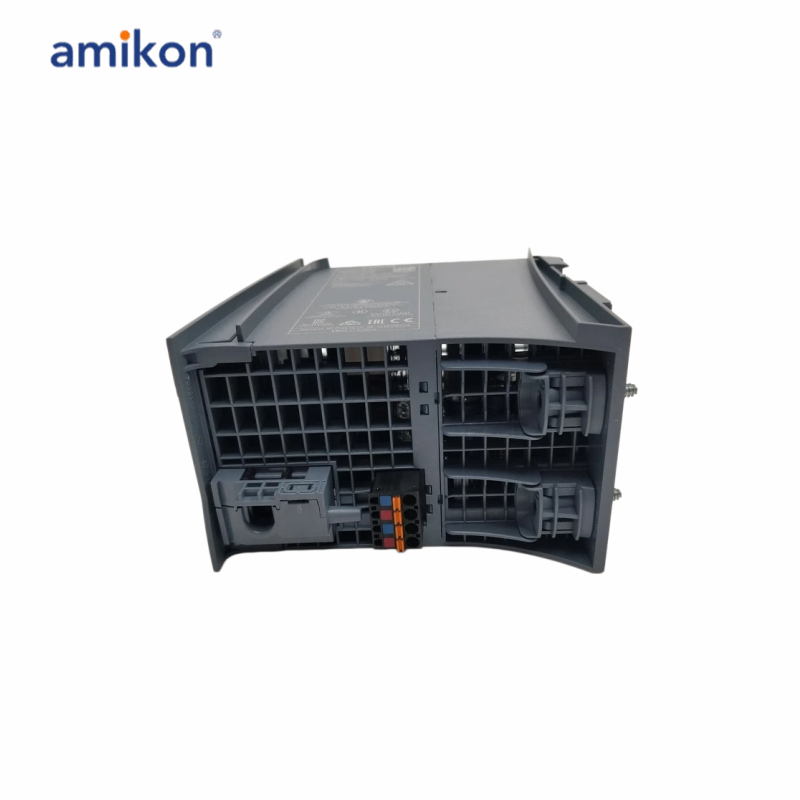

The Siemens SIMATIC PM 1507 (6EP1333-4BA00) serves as the dedicated single-phase regulated load power supply for the SIMATIC S7-1500 PLC architecture and ET 200MP distributed I/O systems.Built to match the form factor, dimensions, and system aesthetics of the S7-1500 CPU series, this 75mm wide module mounts directly onto the specialized S7-1500 DIN rail without requiring lateral clearance. It includes a U-shaped bus connector to link the 24 V DC operating voltage straight into the backplane, cleanly powering internal CPU circuits, backplane components, and connected I/O blocks without messy external wiring.On the electrical side, the module features automatic voltage range selection for 120 V AC (85–132 V) and 230 V AC (170–264 V) grids. Rated input currents are 3.7 A and 1.7 A respectively, with integrated inrush current limiting at 62 A for up to 3 ms at 25 °C.

Frequently asked questions：

Q1: What is the primary purpose of the Siemens 6EP1333-4BA00 module?
A: This module is a dedicated SIMATIC PM 1507 load power supply. It converts single-phase AC line voltage into stable 24 V DC power specifically for Siemens S7-1500 PLCs and ET 200MP distributed I/O systems.

Q2: Can this power supply be used on standard 35 mm top-hat DIN rails?
A: No. The housing is mechanically engineered to hook directly into the specialized SIMATIC S7-1500 mounting rail.

Q3: Do I need to flip a physical switch to change between 120 V AC and 230 V AC inputs?
A: No. The unit features automatic range selection. It instantly detects whether the incoming grid voltage is 120 V AC or 230 V AC and adjusts its internal circuits without manual configuration.

Q4: Will a brief drop in grid power cause the connected PLC to reboot?
A: Not instantly. The module has a 20 millisecond mains buffering time under full load conditions.

Product Applications

Power and Energy
Water Treatment and Environmental Protection
Logistics and Warehousing
Metallurgy and Chemical Industry

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
