Product Specifications

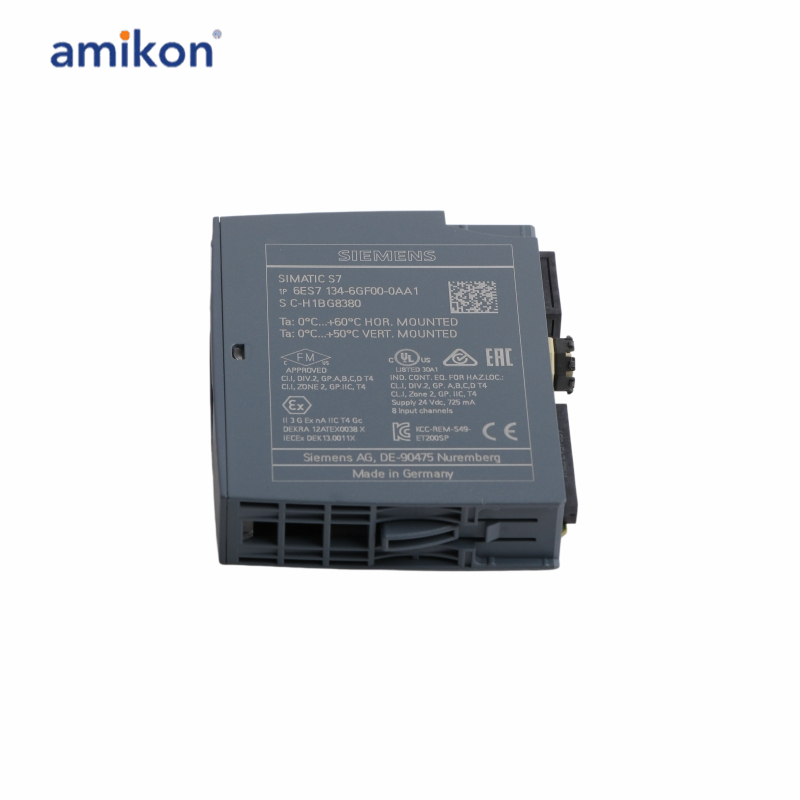

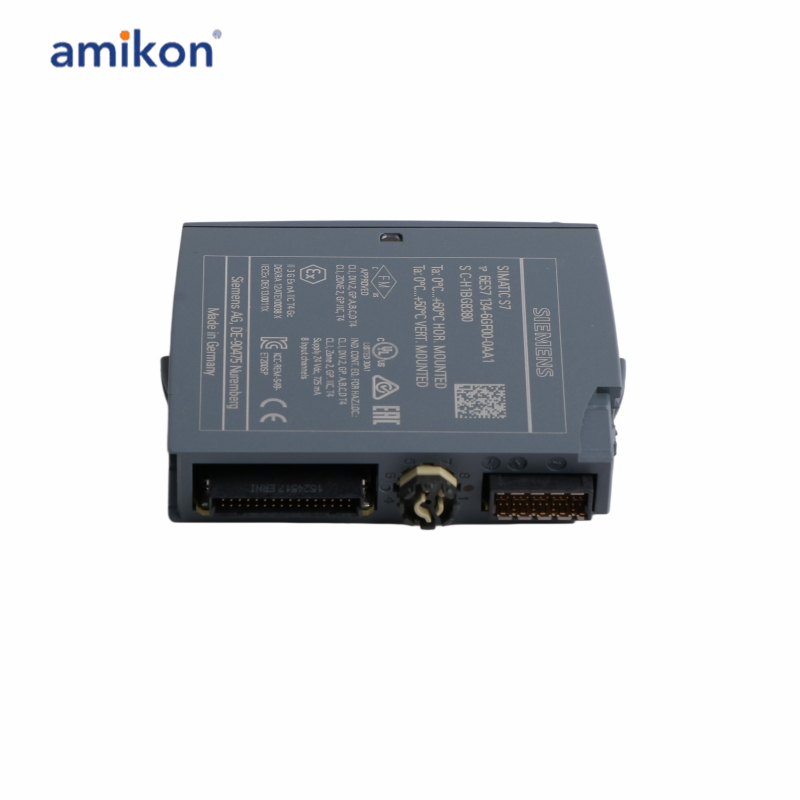

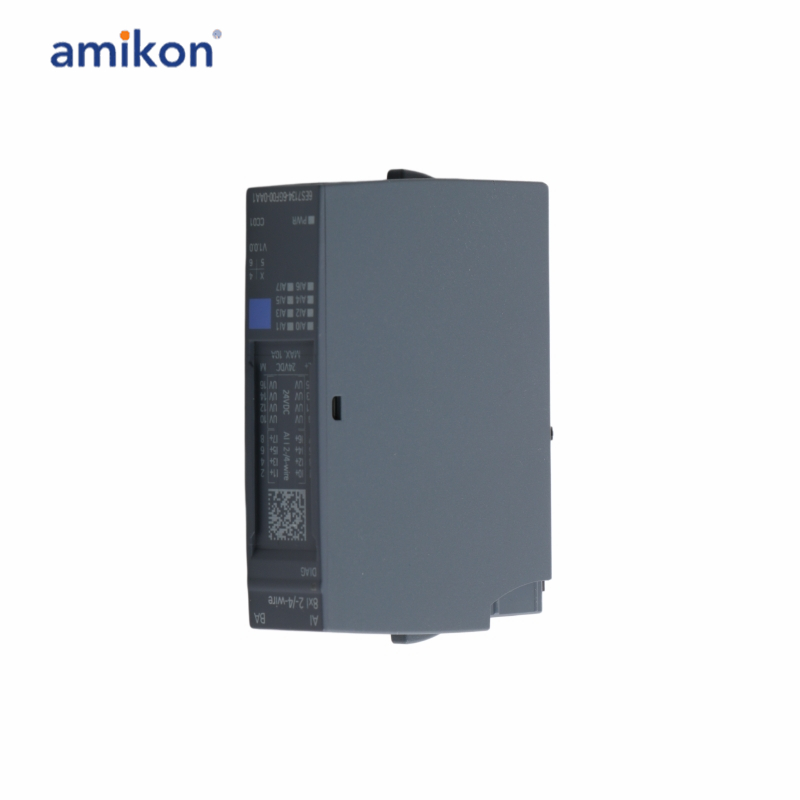

Model Number	6ES7134-6GF00-0AA1
Product Type	Analog Input Module
Series	SIMATIC ET 200SP
Designation	AI 8xI 2-/4-wire Basic
Number of Analog Inputs	8 (single-ended)
Measurement Type	Current: 0～20 mA、-20～+20 mA、4～20 mA
Input Resistance	100 Ω
Resolution	16 bit (with sign), typical 15 bit
Cycle Time	Min. 1 ms per channel
Conversion Time (Selectable)	180 / 60 / 50 / 0.625 ms
Smoothing Levels	None, 4x, 8x, 16x (parameterisable)
Transducer Support	2-wire & 4-wire transducers
Transducer Burden	Max. 650 Ω
Transducer Supply	24 V DC, max. 0.7 A (short-circuit protected)
Reverse Polarity Protection	Yes
Permissible Voltage Range	19.2 V ~ 28.8 V DC
Current Consumption (No Sensors)	Max. 25 mA
Power Loss	Typ. 0.7 W
Linearity Error	±0.01 %
Temperature Drift	±0.005 %/K
Repeat Accuracy (25 °C)	±0.05 %
Overall Error Limit (Full Temp Range)	±0.5 %

The 6ES7134-6GF00-0AA1 analog input module enables precise and high-density current signal acquisition for ET 200SP decentralised I/O systems. Supporting 8 channels in both 2-wire and 4-wire formats, it is ideal for capturing industrial process signals from 0 to 20 mA or 4 to 20 mA. Its 16-bit resolution, configurable integration times, and advanced smoothing options help achieve high signal fidelity even in noisy environments. With built-in diagnostics, short-circuit protection, and 24 V encoder power, the module ensures robust and safe integration. It’s suitable for applications from -30 to +60 °C, making it a reliable choice for manufacturing and process .

Frequently asked questions：

Q1: What is the Siemens 6ES7134-6GF00-0AA1?
A1: It is an analog input module used in Siemens systems for acquiring and processing analog signals from field devices and sensors.

Q2: How many analog inputs does this module provide?
A2: The 6ES7134-6GF00-0AA1 module supports 8 single-ended analog input channels.

Q3: What is the 6ES7134-6GF00-0AA1 input resistance of the module?
A3: The 6ES7134-6GF00-0AA1 input resistance is 100 ohms.

Q4: What is the 6ES7134-6GF00-0AA1 maximum encoder burden?
A4: The 6ES7134-6GF00-0AA1 maximum encoder burden is 650 ohms.

Q5: What is the 6ES7134-6GF00-0AA1 permissible operating voltage range?
A5: The 6ES7134-6GF00-0AA1 module operates within a voltage range of 19.2 V to 28.8 V DC.
