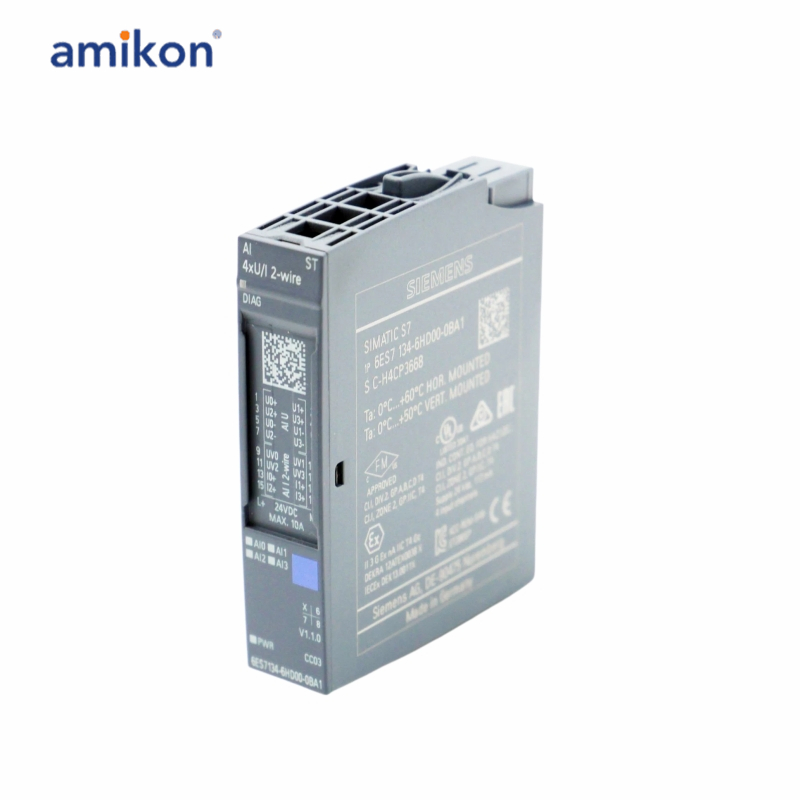

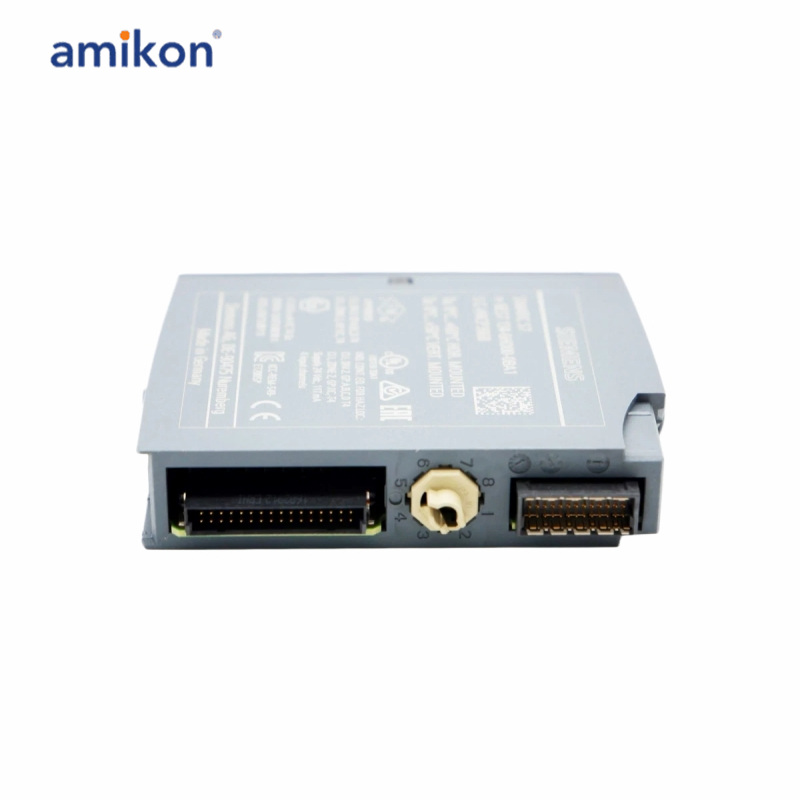

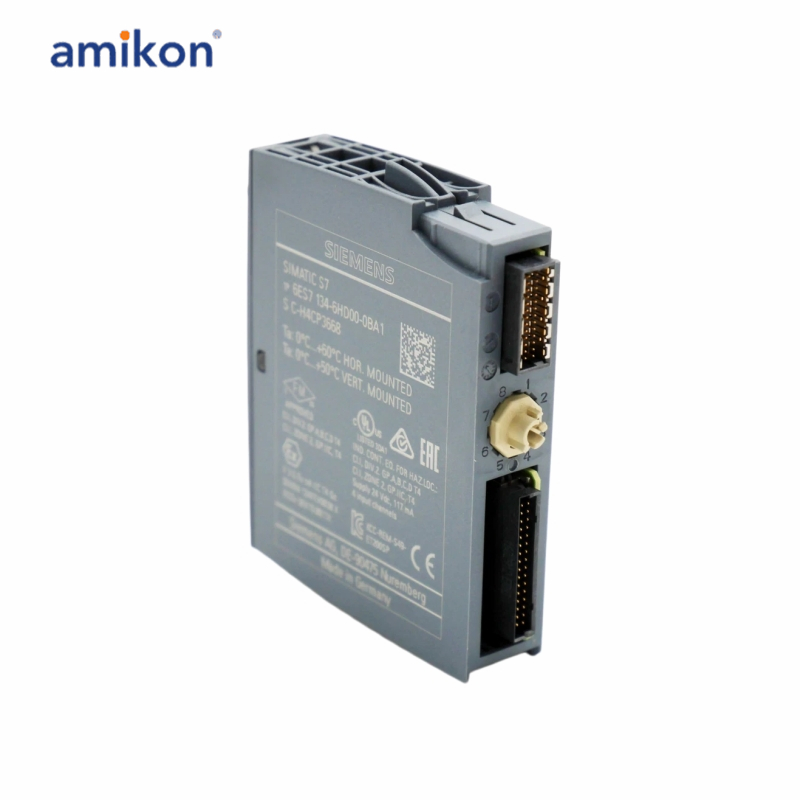

Siemens 6ES7134-6HD00-0BA1 Analog Input Module

Product Information

The Siemens 6ES7134-6HD00-0BA1 is an analog input module designed for the SIMATIC ET 200SP system, offering four channels for current or voltage measurement using a 2-wire standard configuration. This 6ES7134-6HD00-0BA1 module is compatible with BU type A0 and A1, identified by color code CC03, and features integrated module diagnostics for quick fault detection. With a resolution of 16 bits and a measurement accuracy of +/-0.3%, the 6ES7134-6HD00-0BA1 ensures reliable and precise data collection, making it suitable for demanding industrial applications.

Frequently asked questions：

Q1: What is the Siemens 6ES7134-6HD00-0BA1 used for?
A: The 6ES7134-6HD00-0BA1 is an analog input module (AI 4×U/I 2-wire standard) used in SIMATIC ET 200SP systems to measure voltage and current signals from field instruments.
Q2: How many input channels does this module have?
A: The 6ES7134-6HD00-0BA1 module provides 4 analog input channels for voltage (U) or current (I) signals.
Q3: What is the 6ES7134-6HD00-0BA1 resolution and accuracy of this module?
A: It features 16-bit resolution with an accuracy of ±0.3%, ensuring precise signal acquisition.
Q4: What base units is the 6ES7134-6HD00-0BA1 module compatible with?
A: It is compatible with BU-Type A0 and A1 base units, allowing flexible installation in ET 200SP systems.
Q5: Does the 6ES7134-6HD00-0BA1 module support diagnostics?
A: Yes, the 6ES7134-6HD00-0BA1 module diagnosis function is supported, enabling fault detection and system monitoring.

Product Applications

Manufacturing and Process : Widely applied in scenarios requiring high-speed and high-precision signal acquisition, such as production line control, conveyor belt systems, and assembly lines.
Building : Used for HVAC systems, sensor data collection (temperature, pressure, humidity).
Industrial Machinery: Applied in packaging machinery, plastic processing machinery, and textile machinery to achieve precise control.
Infrastructure: Suitable for the deployment of remote I/O stations, reducing wiring costs.

Core functional features:
Signal type: Supports 4 input channels (U/I, 2-wire system).
Diagnostic function: Provides channel-level diagnosis and fault parameter limits, installed through the white base unit (BU15-P16+A10+2D).
Characteristic: Has clear channel status indication, suitable for compact space.
