Product Specifications

Manufacturer	Siemens
Part Number	6ES7214-1AD23-0XB0
Product Type	COMPACT UNIT
Weight	0.06 lbs (0.03 kg)
Rated Supply Voltage	24 V DC
Inrush Current	12 A
Maximum Single Output Current	280 mA
Power Loss	7 W
Backup Battery Duration	100 h
CPU Processing Speed	0.22 μs
Input Current per Channel	2.5 mA
Max Switching Frequency	20 kHz
Max Cable Length	500 m
MPI Communication Baud Rate	19.2 kbit/s
Protection Class	IP20

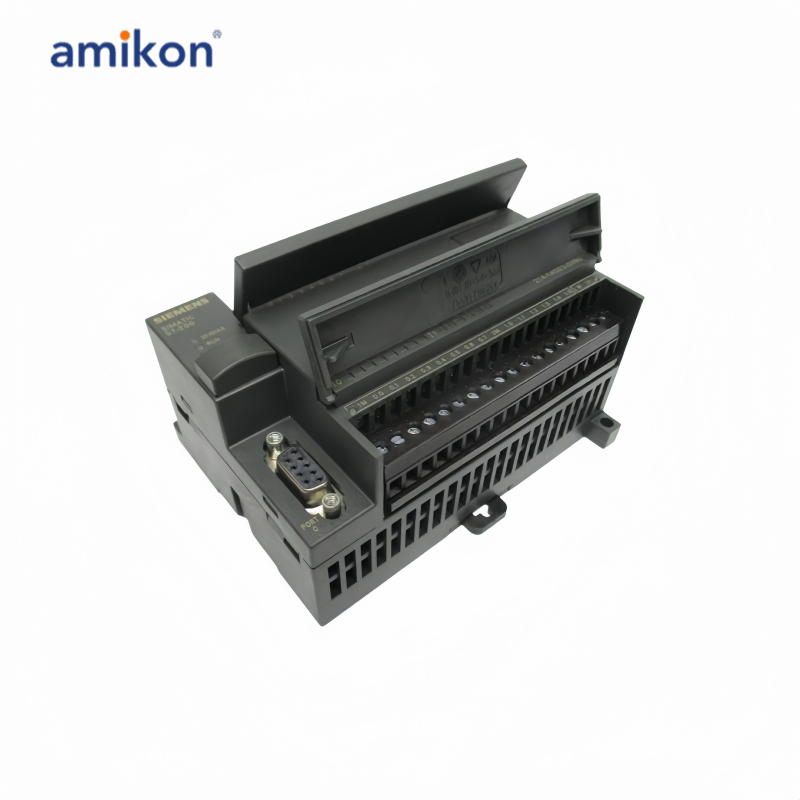

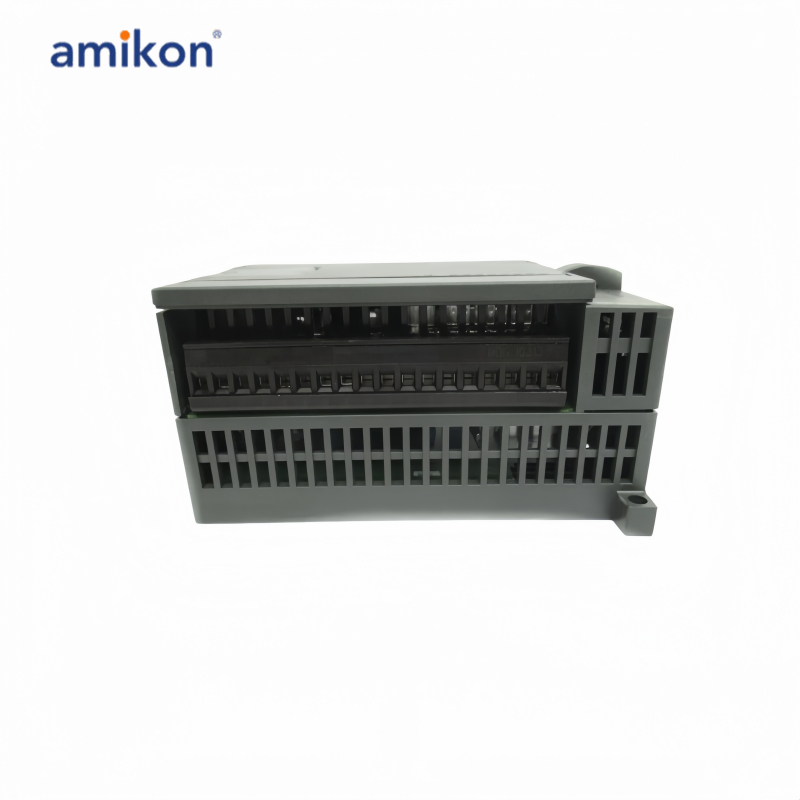

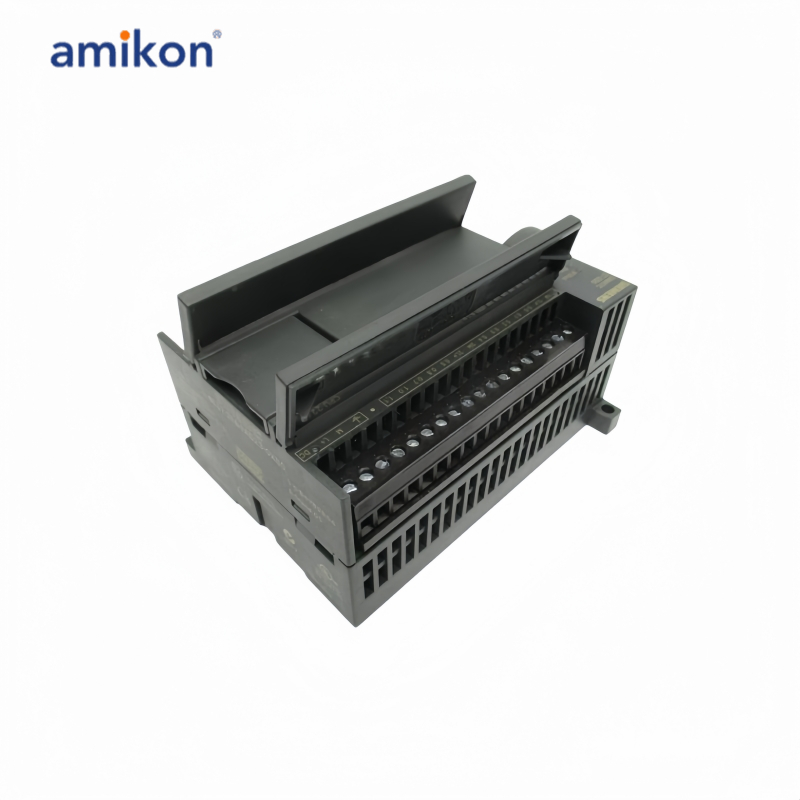

The Siemens model 6ES7214-1AD23-0XB0 is an advanced COMPACT UNIT, central to various and control processes. Functioning at a rated voltage of 24 V DC, it provides a responsive output with a maximum current rating of 280 mA, catering to the needs of diverse applications. During operation, this unit experiences an inrush current of up to 12 A, ensuring it can handle initial load without issue.
The processor module excels in processing speed, achieving a CPU processing time of only 0.22 microseconds. This rapid response capability is crucial for tasks requiring immediate feedback. For data handling, the PLC supports a robust set of inputs and outputs: it can accommodate up to 168 digital I/O points, comprising a maximum of 94 digital inputs and 74 digital outputs, together with 35 analog I/O points, limited to 28 inputs and 7 outputs. This versatility meets various monitoring and control requirements.

Frequently asked questions：

Q1: What is the Siemens 6ES7214-1AD23-0XB0 COMPACT UNIT used for?
A: The 6ES7214-1AD23-0XB0 is a COMPACT UNIT used in industrial systems to execute control programs, process input signals, and manage outputs for machines and production processes.

Q2: What is the rated supply voltage of the 6ES7214-1AD23-0XB0?
A: The 6ES7214-1AD23-0XB0 module operates with a rated supply voltage of 24 VDC, a standard power source in industrial control applications.

Q3: What is the inrush current of the 6ES7214-1AD23-0XB0 module?
A: The 6ES7214-1AD23-0XB0 COMPACT UNIT has an inrush current of 12 A, which occurs briefly during startup or power-up.

Q4: What is the 6ES7214-1AD23-0XB0 maximum single output current?
A: The 6ES7214-1AD23-0XB0 maximum current available from a single output is 280 mA, making it suitable for driving compatible field devices and control circuits.

Product Applications

Packaging and printing plants
Food and beverage processing plants
Textile and dyeing machinery plants
Environmental protection and water treatment plants
Plastics and rubber products plants
Machine tool and metal processing plants
